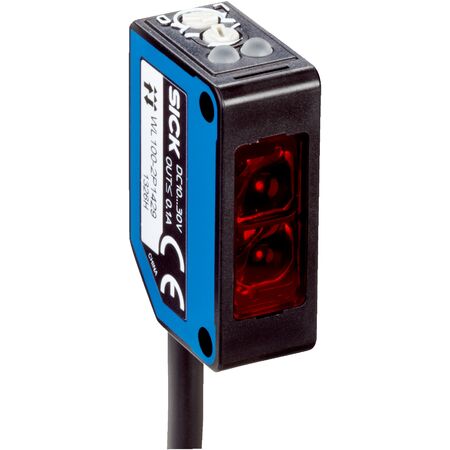

Photoelectric Retro-Reflective Sensor WL100-2P1409S31 | IP67 Rated | 1,000 Hz Switching Frequency | Visible Red Light | by SICK
The Photoelectric Retro-Reflective Sensor WL100-2P1409S31 is designed for industrial automation, featuring a dual lens system for precise object detection. With a sensing range of 0.01 m to 7.2 m and a high switching frequency of 1,000 Hz, it ensures reliable performance in safety and control systems. Its IP67 rated enclosure provides excellent dust and water protection, making it ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP
- Switching mode: Light/dark switching selectable
- Signal voltage PNP HIGH/LOW: UV - 1.8 V / approx. 0 V
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Cable with M12 male connector, 4-pin, 300 mm
- Cable material: Plastic, PVC
- Conductor cross section: 0.18 mm²
- Circuit protection: A, B, D
- Protection class: III
- Housing material: Plastic ABS/PC/POM
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Light source: LED
- Light type: Visible red light
- Wavelength: 632 nm
- Light spot size at 4 m: Ø 280 mm
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light LED with wavelength of 632 nm
- Sensing range from 0.01 m to 7.2 m
- Potentiometer for sensitivity adjustment
- Light/dark switching mode selectable via rotary switch
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Includes mounting bracket BEF-W100-A and Reflector P250
- Polarisation filter for improved detection reliability
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for object detection
- Safety and control systems in manufacturing
- Material handling and packaging lines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL100-2P1409S31 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
