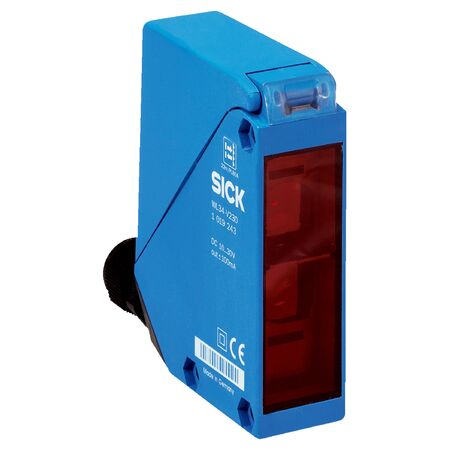

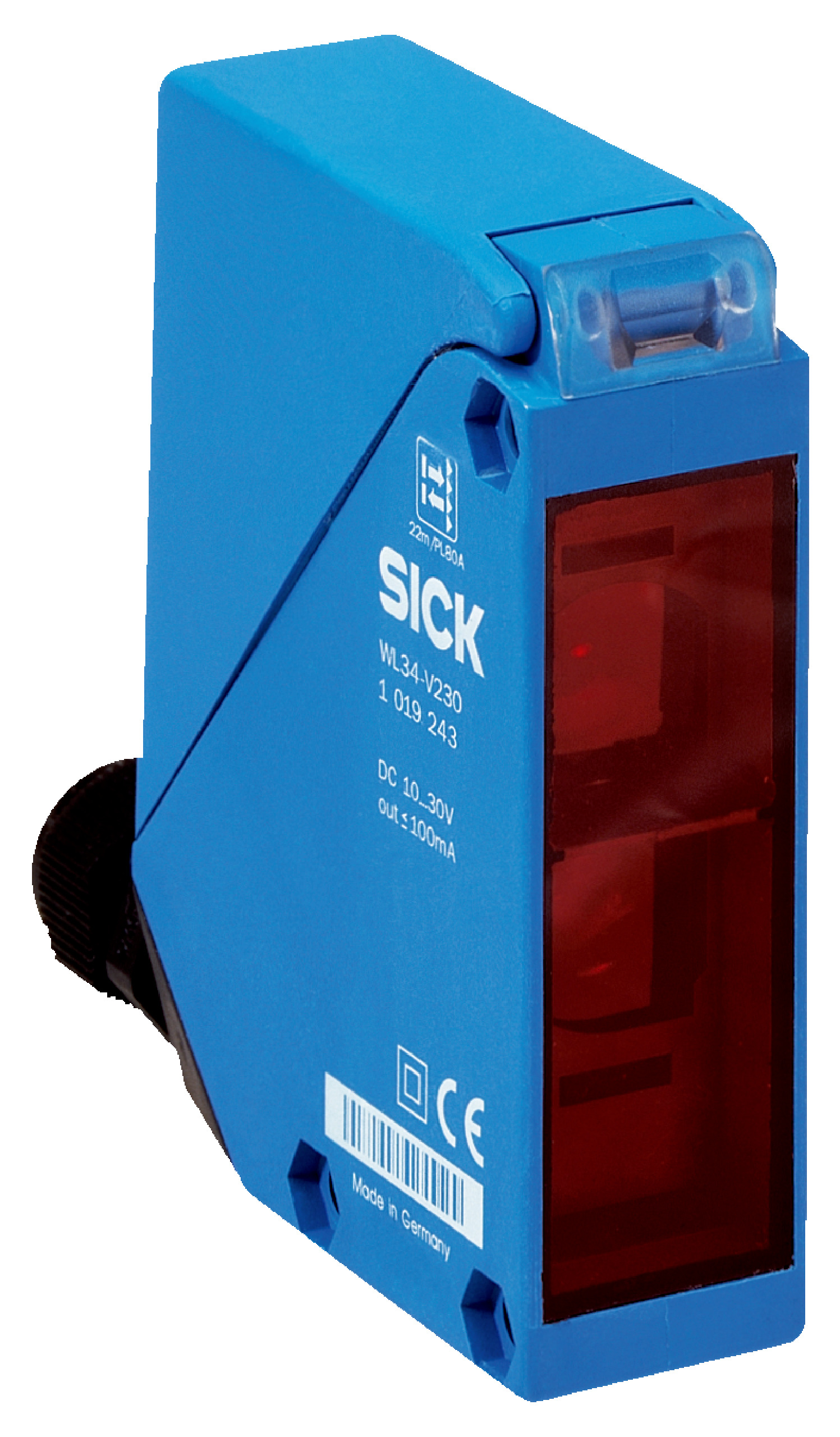

Photoelectric Retro-Reflective Sensor WL34-V230 | IP67 Rated | Dual Lens System | 660 nm Wavelength | by SICK
The Photoelectric Retro-Reflective Sensor WL34-V230 is designed for industrial automation, featuring a dual lens system for minimum distance to reflector and a visible red LED light source with a 660 nm wavelength. With selectable light and dark switching modes, robust IP67 housing, and a fast response time of ≤ 500 µs, it's perfect for safety monitoring and object detection in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor WL34-V230 | IP67 Rated | Dual Lens System | 660 nm Wavelength | by SICK
Brand: SICK
SKU: 1019243
Alternatively Known As: Photoelectric Sensor, Retro-Reflective Sensor, SICK WL34 Sensor, Industrial Photo Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 50 mA
- Switching output: NPN, PNP
- Switching mode: Light switching, Dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Connection type: Terminal connection with M16 gland
- Circuit protection: Types A, C, D
- Protection class: II
- Enclosure rating: IP67
- Ambient operating temperature: -40 °C to +60 °C
- Ambient storage temperature: -40 °C to +75 °C
- Weight: 140 g
- Light spot size at 15 m: Ø 250 mm
- Wave length: 660 nm
- Adjustment: Potentiometer
- Alarm output: Yes
- Polarisation filter: Yes
- Housing material: Plastic, ABS
- Dimensions (H x L x W): 92mm x 70mm x 27mm
- Weight: 0.14 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red LED light source with 660 nm wavelength
- Sensing range from 0.03 m up to 22 m
- Selectable switching modes: light switching and dark switching
- NPN and PNP switching outputs with up to 100 mA output current
- Robust plastic ABS housing with IP67 enclosure rating
- Operating temperature range from -40 °C to +60 °C
- Polarisation filter included
- Fast response time of ≤ 500 µs and switching frequency of 1,000 Hz
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with photoelectric sensor systems to ensure proper wiring and configuration.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL34-V230 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
