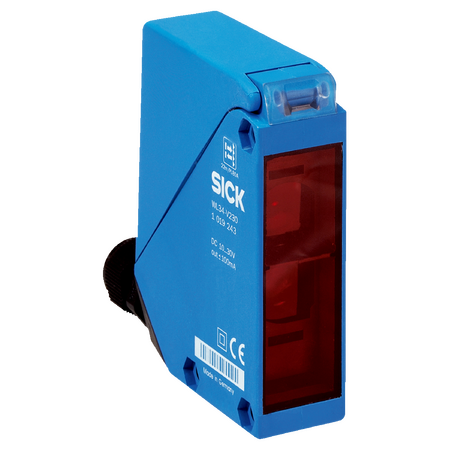

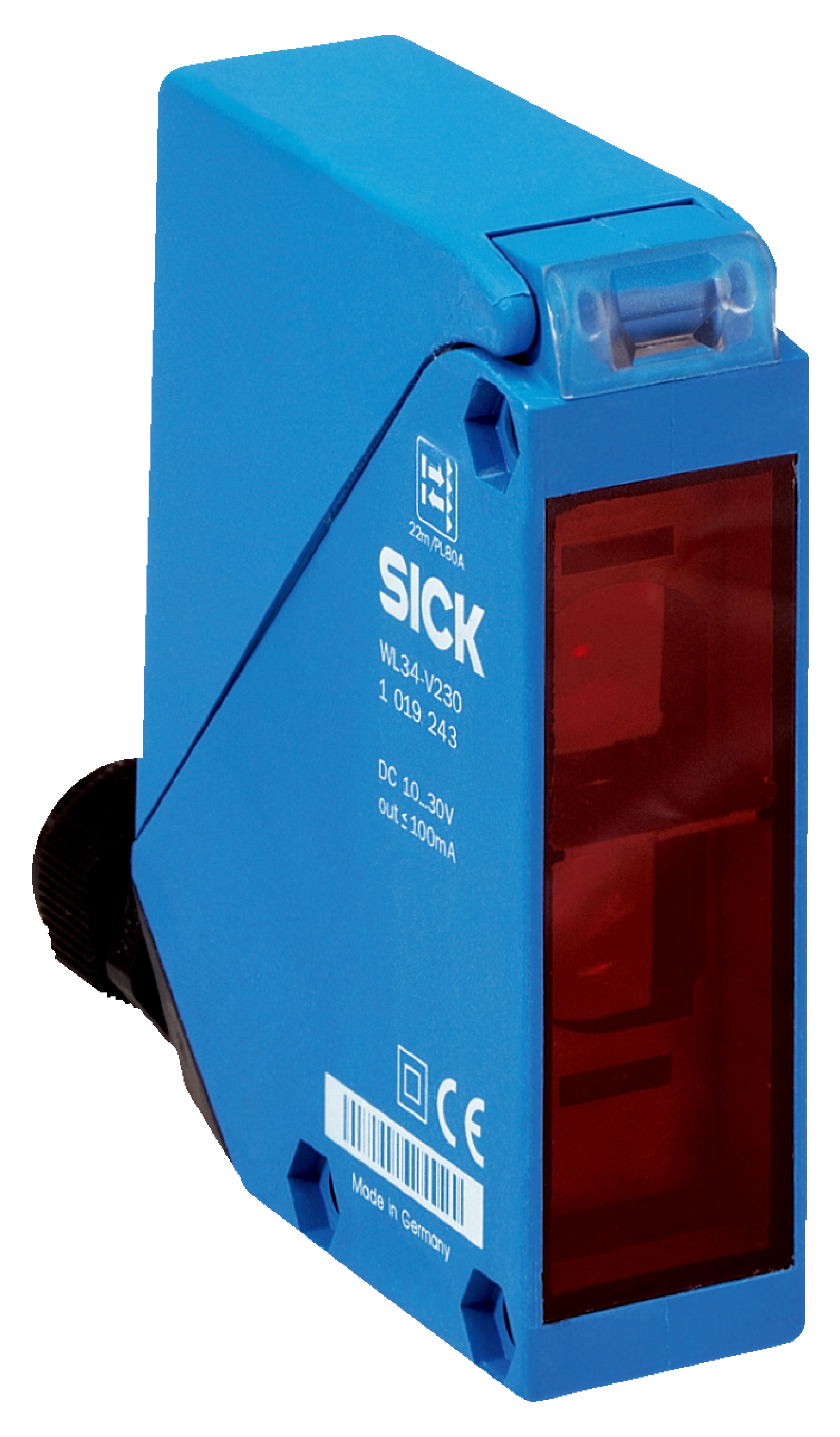

Photoelectric Retro-Reflective Sensor WL34-V240 | IP67 Rated | Dual Lens System | 0.03m to 22m Sensing Range | by SICK
The Photoelectric Retro-Reflective Sensor WL34-V240 is designed for industrial automation, featuring a dual lens system for minimum distance to reflector and a sensing range from 0.03m to 22m. With an IP67 rated enclosure for dust and water protection, this sensor is perfect for safety monitoring and material handling applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Optical sensor, Industrial photo sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 50 mA
- Switching output: NPN, PNP
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Enclosure rating: IP67
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Housing material: Plastic, ABS
- Connection type: Terminal connection with M16 gland
- Protection class: II
- Light spot size at 15 m: Ø 250 mm
- Wave length: 660 nm
- Adjustable delay time: 0.5 s to 10 s
- Dimensions (H x L x W): 92mm x 70mm x 27mm
- Weight: 0.14 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red LED light source with 660 nm wavelength
- Sensing range from 0.03 m up to 22 m
- Selectable switching modes: light switching and dark switching
- Adjustable potentiometer for sensitivity and delay time
- IP67 rated enclosure for dust and water protection
- Polarisation filter included to reduce false triggering
- Switching output options: NPN and PNP
- Fast response time of ≤ 500 µs and switching frequency of 1,000 Hz
- Time functions include off delay and switch-on delay adjustable from 0.5 s to 10 s
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable ABS housing extends product life and reduces waste
- Complies with China RoHS for hazardous substance reduction
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL34-V240 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
