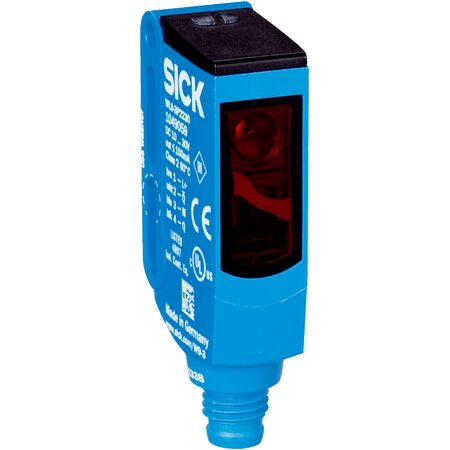

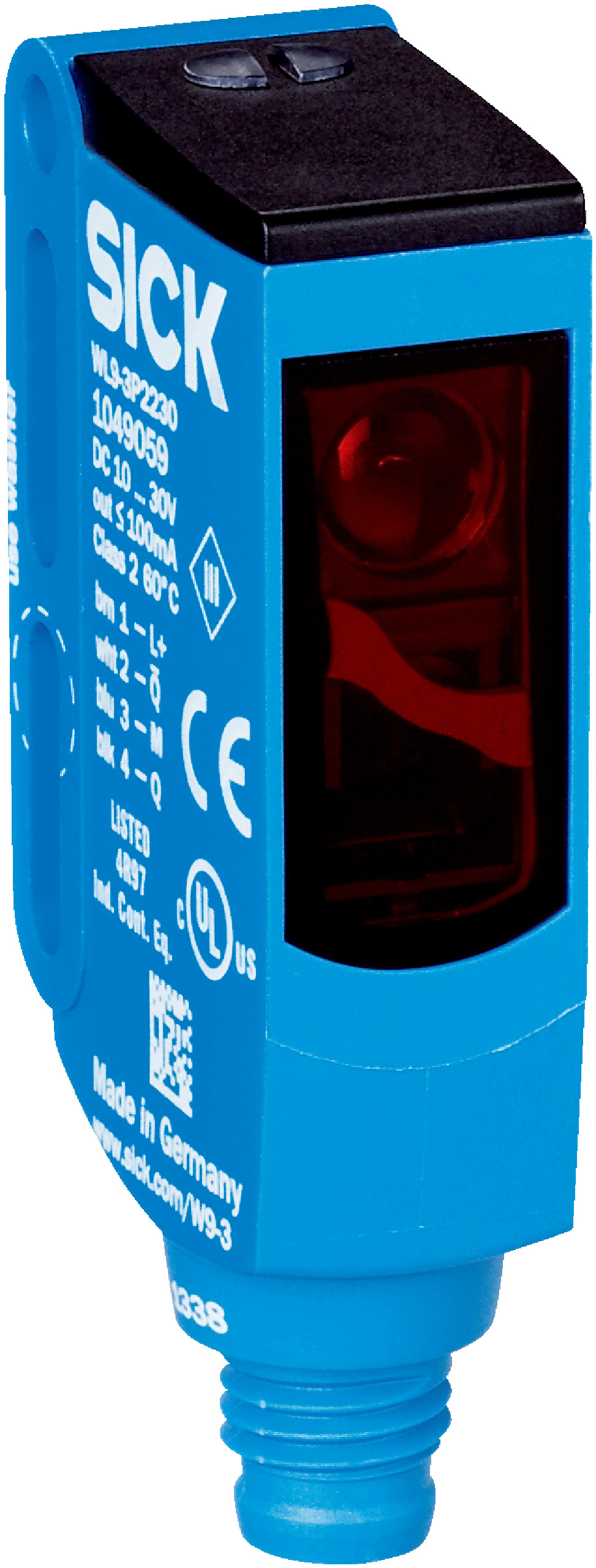

Photoelectric Retro-Reflective Sensor WL9-3P2230 | IP66, IP67, IP69K Rated | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor WL9-3P2230 is designed for industrial automation, featuring a sensing range of up to 4 meters without a reflector and a fast response time of under 0.5 ms. With its durable IP66, IP67, and IP69K rated housing, this sensor is perfect for object detection and safety monitoring in manufacturing processes, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor WL9-3P2230 | IP66, IP67, IP69K Rated | Fast Response Time | by SICK
Brand: SICK
SKU: 1049059
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, SICK WL9 sensor, Industrial object sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Male M8, 4-pin connector
- Protection class: III
- Enclosure rating: IP66, IP67, IP69K
- Ambient operating temperature: -40°C to +60°C
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Light spot size at 1.5 m: Ø 45 mm
- MTTFD: 2700 years
- Mission time: 20 years
- Dimensions (H x L x W): 49.8mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with visible red light
- PinPoint LED light source with 650 nm wavelength
- Sensing range up to 4 meters without reflector
- Rectangular plastic housing with IP66, IP67, and IP69K protection ratings
- Fast response time under 0.5 ms and switching frequency of 1000 Hz
- Complementary PNP output with light/dark switching mode
- Polarizing filter included to reduce false triggers
- Wide ambient operating temperature range from -40°C to +60°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP69K housing minimizes environmental impact by extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WL9-3P2230 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
