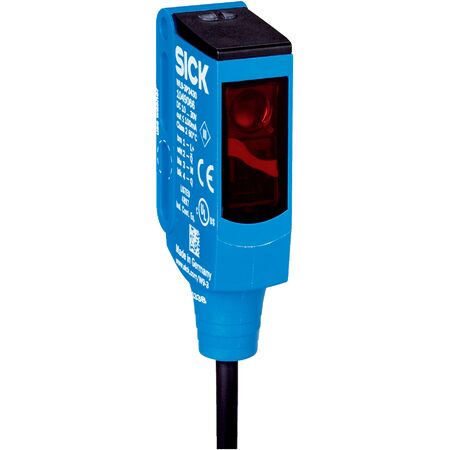

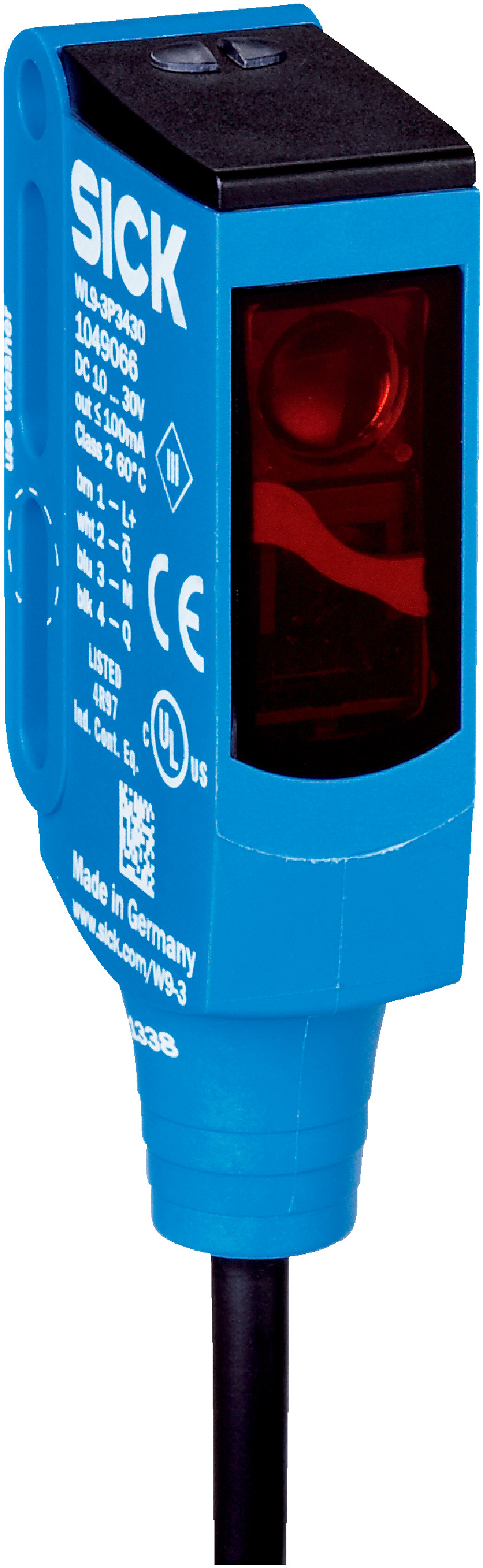

Photoelectric Retro-Reflective Sensor WL9-3P3430 | IP66/IP67/IP69K | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor WL9-3P3430 is designed for industrial automation, featuring a sensing range of up to 4 meters and a fast response time of under 0.5 ms. With a robust IP66/IP67/IP69K protection rating, it's perfect for safety and monitoring in manufacturing processes, ensuring reliable object detection in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor WL9-3P3430 | IP66/IP67/IP69K | Fast Response Time | by SICK
Brand: SICK
SKU: 1049066
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, SICK WL9 sensor, Industrial object sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Connection: Cable with M12 male connector, 4-pin, 120 mm
- Cable material: Plastic, PVC
- Conductor cross section: 0.14 mm²
- Circuit protection: Types A, B, C
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Wave length: 650 nm
- Light spot size at 1.5 m: Ø 45 mm
- Dimensions (H x L x W): 50mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Visible red light with PinPoint LED light source
- Sensing range up to 4 meters
- Rectangular housing design with M3 mounting hole
- High protection rating: IP66, IP67, IP69K
- Fast response time under 0.5 ms and switching frequency of 1000 Hz
- Complementary PNP output with light/dark switching mode
- Polarizing filter included for enhanced detection reliability
- Wide ambient operating temperature range from -40°C to +60°C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable housing materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL9-3P3430 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
