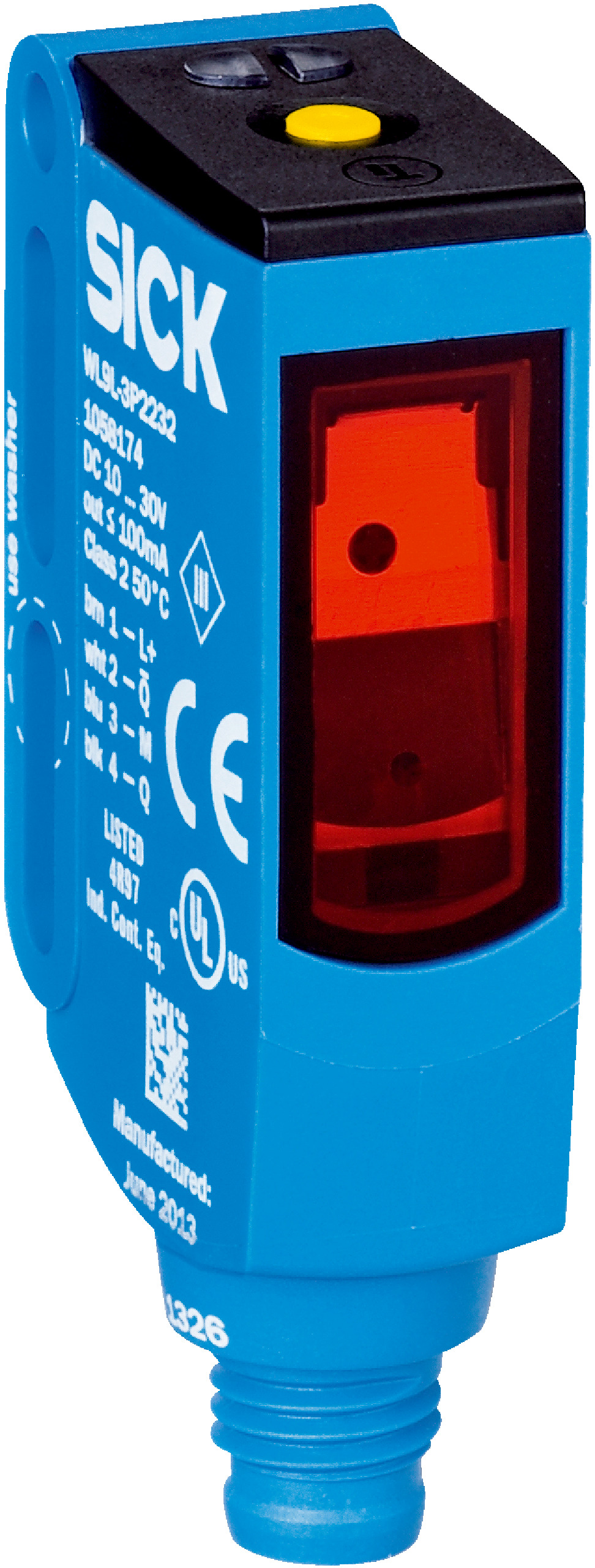

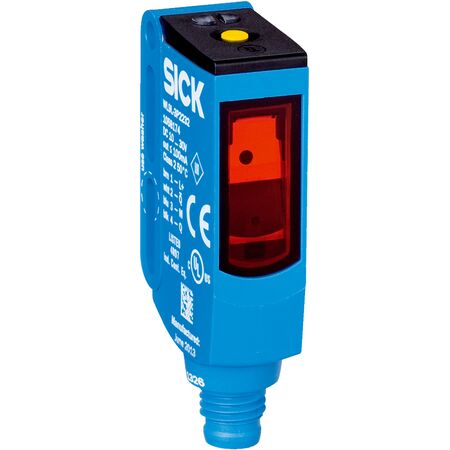

Photoelectric Retro-Reflective Sensor WL9L-3N2232 | IP66, IP67, IP69K | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor WL9L-3N2232 is designed for precise object detection in industrial automation. With a fast response time of ≤ 0.5 ms and a sensing range of up to 12 meters, it ensures reliable performance in demanding environments. Featuring a robust IP66, IP67, and IP69K rated housing, this sensor is built to withstand harsh conditions while providing accurate detection with its visible red laser light source.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN complementary
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Male M8, 4-pin connector
- Protection class: III
- Laser class: 1 (IEC 60825-1)
- Operating temperature: -30 °C to +55 °C extended range
- Storage temperature: -30 °C to +70 °C
- Enclosure rating: IP66, IP67, IP69K
- Housing material: Plastic VISTAL®
- Optics material: Plastic PMMA
- Polarizing filter included
- Dimensions (H x L x W): 49.8mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Visible red laser light source with 650 nm wavelength
- Sensing range up to 12 meters without reflector
- Single teach-in button for easy adjustment
- High protection rating with IP66, IP67, and IP69K
- Fast response time of ≤ 0.5 ms and switching frequency of 1000 Hz
- Complementary NPN output with light/dark switching mode
- Polarizing filter included to reduce interference
- Robust plastic VISTAL® housing and PMMA optics material
- Wide ambient operating temperature range from -30 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Small object detection in manufacturing lines
- Use in environments requiring precise sensing with visible red laser light
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP69K rated housing minimizes environmental damage and extends product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK WL9L-3N2232 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
