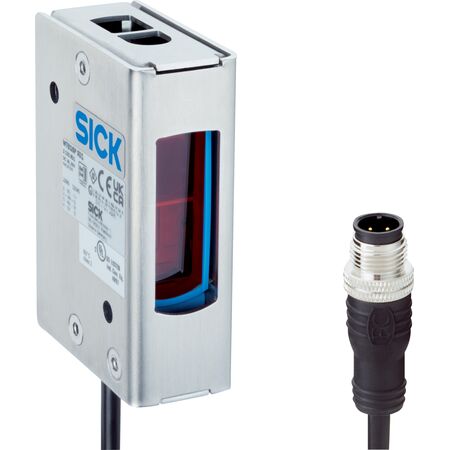

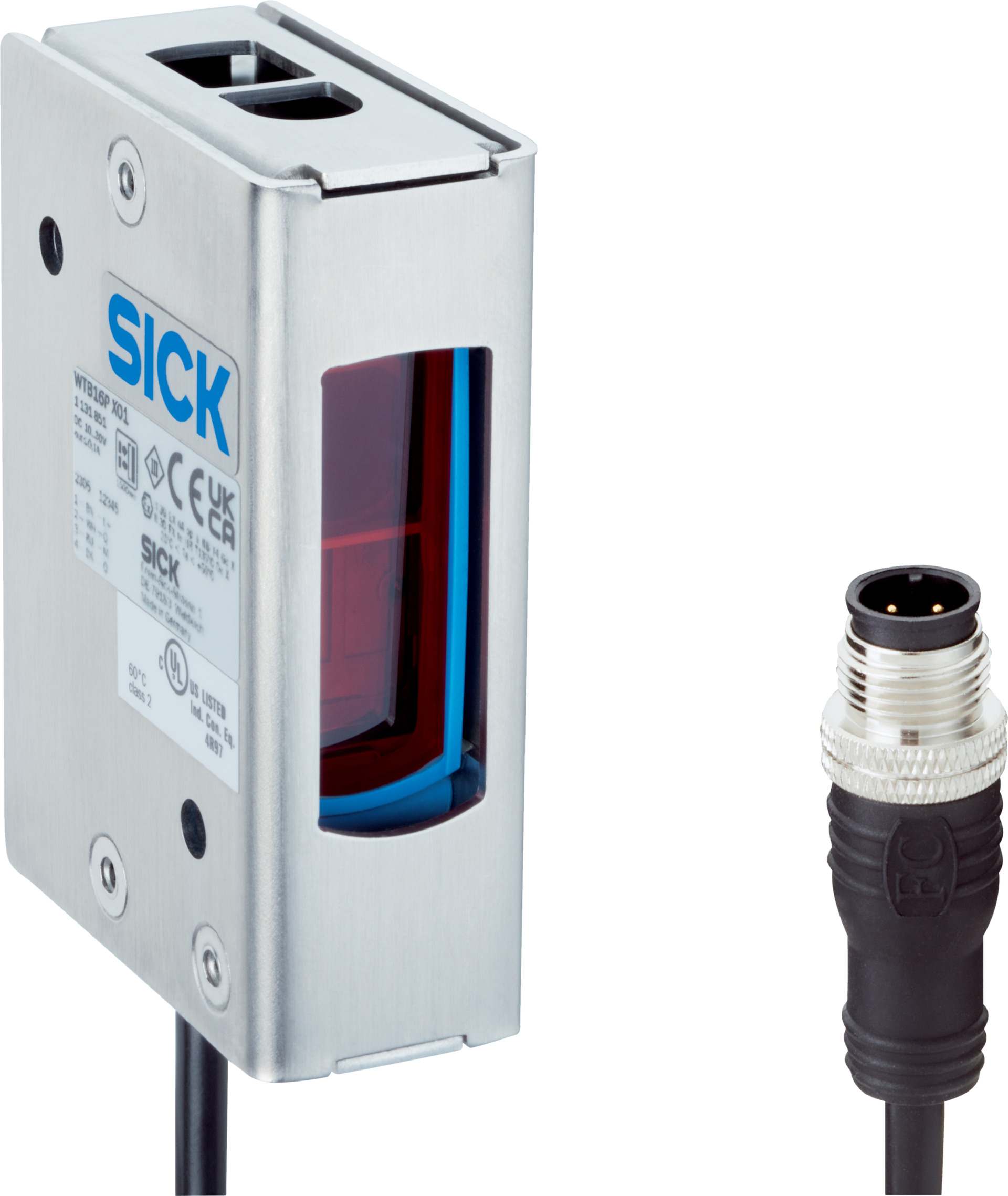

Photoelectric Retro-Reflective Sensor WLA16P-X01 | 10m Sensing Range | IP66/IP67 Rated | by SICK
The WLA16P-X01 Photoelectric Retro-Reflective Sensor is designed for precise object detection in industrial automation, featuring a sensing range of up to 10 meters and a robust IP66/IP67 enclosure. With its PinPoint LED technology and high shock resistance, this sensor is perfect for use in explosive atmospheres, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor without reflector minimum distance
- Sensing range: 0 to 10 m, recommended 0 to 7 m
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Protection class: III
- Enclosure rating: IP66 and IP67
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 2,000 Hz
- Connection: Cable with M12 male connector, 4-pin, 318 mm length
- Material: Plastic housing (VISTAL®), stainless steel protective housing (V2A), PMMA front screen
- Dimensions (H x L x W): 82mm x 55mm x 27mm
- Weight: 0.25 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range up to 10 m with recommended range 0-7 m
- PinPoint LED visible red light with 635 nm wavelength
- Polarisation filters included
- IO-Link interface for sensor parameter configuration and Smart Task functions
- LED indicators for alignment, operating status, and light beam status
- Robust housing with IP66/IP67 protection rating
- Suitable for use in explosive atmospheres (ATEX certified)
- High shock and vibration resistance
- Digital push-pull outputs with light/dark switching
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensors and electrical safety standards, especially for use in explosive atmospheres.
Applications
- Object detection in industrial automation
- Detection of objects wrapped in film
- Use in explosive areas
Standards & Compliance
- AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Durable design reduces environmental impact through extended product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WLA16P-X01 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications including explosive environments.
