Photoelectric Sensor 2mm Sensing Gap | IP65 Rated | Infrared Light by NHP
Photoelectric sensor with 2mm sensing gap and IP65 protection—ideal for industrial automation and control systems. Built for reliable operation, with infrared light sensing and easy manual adjustment.
Sign in
Please login to continue to your account.

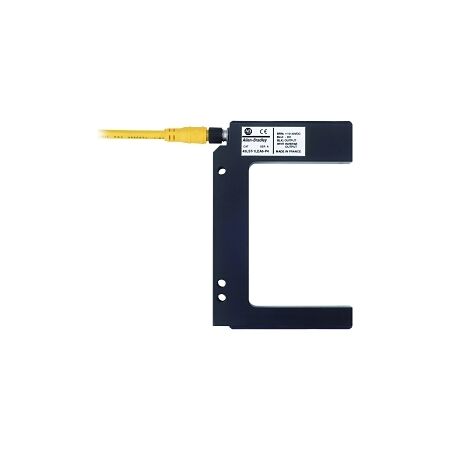

Product Name/Title: Allen-Bradley 45L Photoelectric Sensor 2mm Sensing Gap 45LST Optical Fork Sensor 4 Pin Pico QD
Brand: NHP
SKU: 45LST1LEA1P4
Alternatively Known As: Optical Fork Sensor, Infrared Photoelectric Sensor
- Voltage Type: DC
- Rated Control Supply Voltage: 10-30 V
- Type of Switching Output: PNP/NPN
- Max Output Current: 100 mA
- Response Time: 0.03 ms
- Type of Electric Connection: Connector M8
- Number of Protected Semiconductor Outputs: 1
- Type of Switch Function: Other
- Material Housing: Metal
- Construction Type Housing: Special construction
- Degree of Protection: IP65
- Sensing Type: Transmitted beam emitter & receiver pair
- Type of Light: Infrared light
- Max Switching Distance: 2 mm
- Sensing Mode: Light-/dark switching
- Wavelength of the Sensor: 880 nm
- Ambient Temperature: -20-60 °C
- Dimensions (H x L x W): 37mm x 12mm x 60mm
- Weight: 0.2 kg
- Manual adjustment for easy setup.
- IP65 rated for protection against dust and water.
- Infrared light sensing for reliable operation.
- Professional installation by a qualified technician is recommended for optimal performance.
- Industrial automation and control systems
- Conveyor systems and packaging machinery
- Safety and security applications
- Complies with AS/NZS 60950 for safety and performance standards.
- Energy-efficient operation reduces overall power consumption.
1 year warranty against manufacturing defects.
The Allen-Bradley 45L Photoelectric Sensor is available now for immediate purchase. Ideal for industrial automation and control applications.
