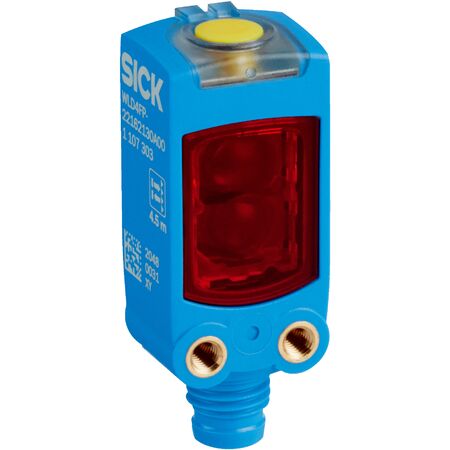

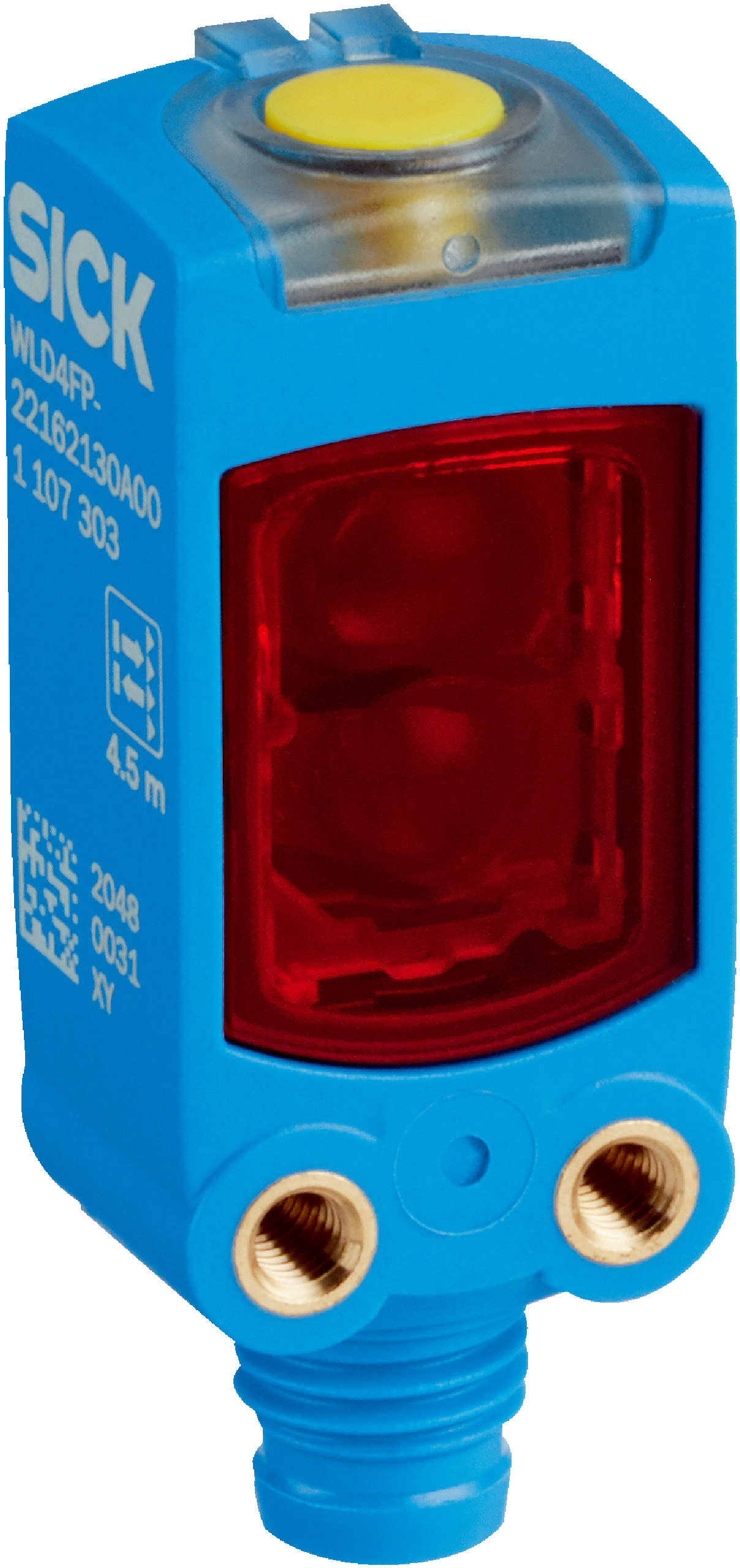

Photoelectric Sensor WLG4FP-21A12130ZZZ | ClearSens Dual Lens | IP66/IP67 Rated | by SICK
The WLG4FP-21A12130ZZZ photoelectric sensor features a ClearSens dual lens system and a sensing range from 15 mm to 4.5 m, making it ideal for industrial automation and object detection. With robust IP66/IP67 protection and a PinPoint LED light source, this sensor is built for harsh environments, ensuring reliable performance and long service life.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor WLG4FP-21A12130ZZZ | ClearSens Dual Lens | IP66/IP67 Rated | by SICK
Brand: SICK
SKU: 1146575
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Optical sensor, SICK photoelectric sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with ClearSens dual lens system
- Sensing range: 15 mm to 4.5 m; recommended 35 mm to 3.9 m
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- LED risk group: Free group according to EN 62471 and IEC 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA at 24 V
- Output type: 1 PNP digital output, light switching mode
- Response time: ≤ 500 µs; switching frequency up to 1000 Hz
- Protection class: III
- Housing material: Plastic VISTAL®; front screen PMMA
- Connection: M8, 3-pin connector
- Enclosure rating: IP66 and IP67
- Operating temperature: -40 °C to +60 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1000 Hz, amplitude 1 mm
- Dimensions (H x L x W): 40mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with ClearSens dual lens system
- Sensing range from 15 mm to 4.5 m with recommended range 35 mm to 3.9 m
- PinPoint LED visible red light with 635 nm wavelength
- Polarisation filters included for improved detection
- LED indicators for power and object presence status
- Robust plastic VISTAL® housing with IP66/IP67 rating
- Shock resistance up to 30 g and vibration resistance from 10 Hz to 1000 Hz
- Reverse polarity, overcurrent, and short-circuit protected outputs
- Operating temperature range from -40 °C to +60 °C
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Detecting transparent objects
- Use in harsh environments requiring IP66/IP67 protection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK WLG4FP-21A12130ZZZ photoelectric sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
