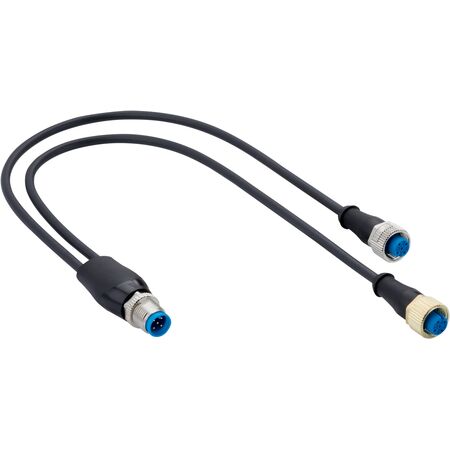

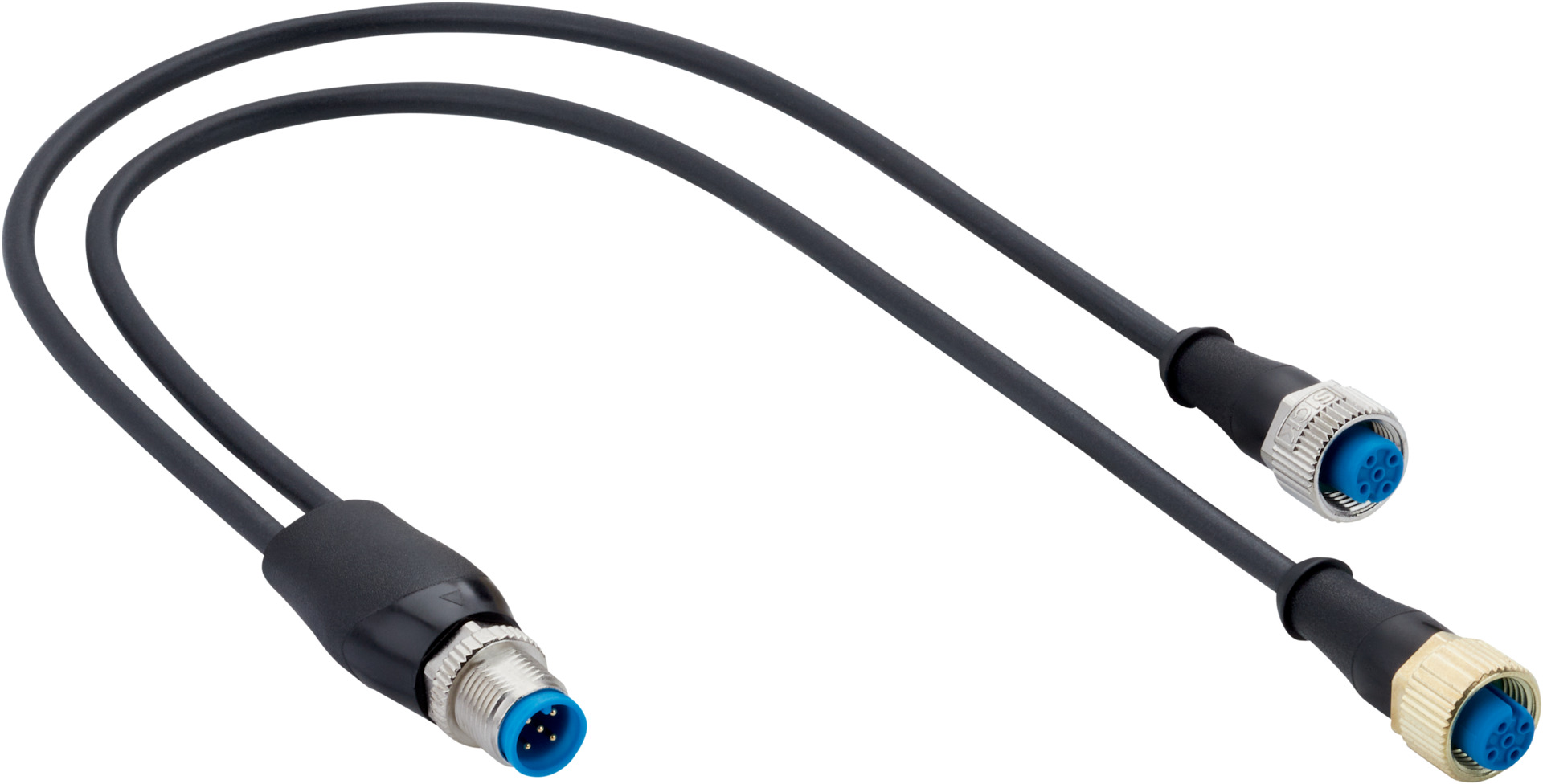

Photoelectric Sensor Connector Cable | M12 A-Coded | IP65/IP66K/IP67 Rated | 0.3m Length | by SICK
The Photoelectric Sensor Connector Cable is designed for reliable connections in industrial automation, featuring female and male M12 connectors with A-coding for secure connections. With a robust halogen-free PUR cable and an impressive IP65/IP66K/IP67 enclosure rating, this cable is perfect for harsh environments, ensuring optimal performance in factory automation and sensor installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, A-coded
- Connection type head B: Female connector, M12, 4-pin, A-coded
- Connection type head C: Male connector, M12, 4-pin, A-coded
- Locking plug connector: Screw connection
- Connecting cable length: 0.3 m, 4-wire, PUR, halogen-free
- Cable diameter: 4.5 mm
- Conductor cross section: 0.34 mm²
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Rated impulse voltage: 0.8 kV
- Current loading: 4 A
- Insulation resistance: 100 MΩ
- Contamination rating: 3
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -25 °C to +80 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Enclosure rating: IP65 / IP66K / IP67
- Dimensions (H x L x W): 10mm x 50mm x 13mm
- Weight: 0.1 kg
Key Features
- Female and male M12 connectors with A-coding for secure connections
- Screw locking plug connector for reliable mechanical stability
- Halogen-free PUR cable material for environmental safety
- High contamination rating of 3 suitable for industrial environments
- Wide operating temperature range from -40°C to +85°C
- Enclosure rating IP65 / IP66K / IP67 for dust and water protection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial automation for connecting sender and receiver units of through-beam photoelectric sensors
- Factory automation requiring reliable sensor connections
- Harsh environment sensor installations needing IP65/IP66K/IP67 rated connectors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable material reduces environmental impact and improves safety during disposal
- Durable construction minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK YM2A15-C30UB3FY2A4 connector cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
