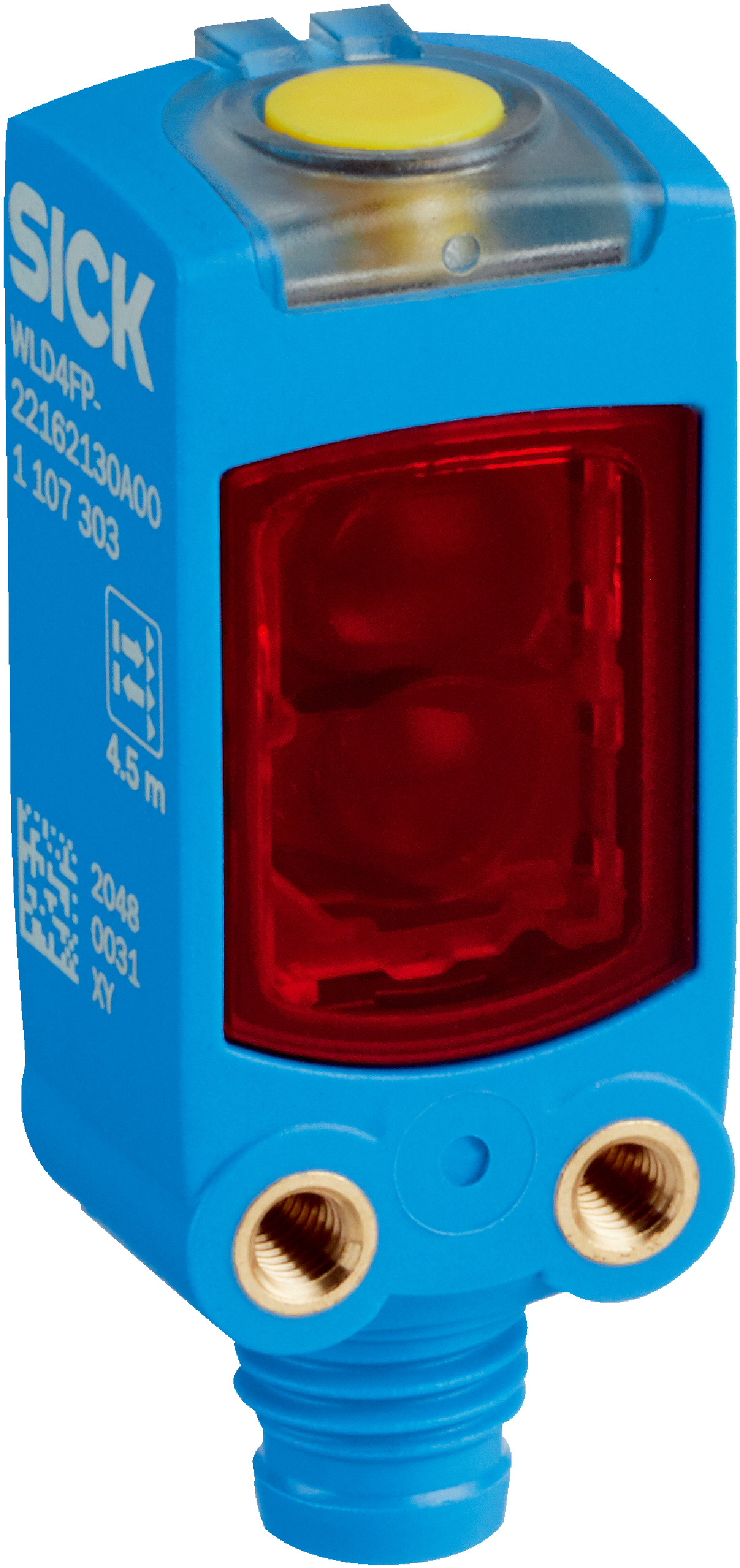

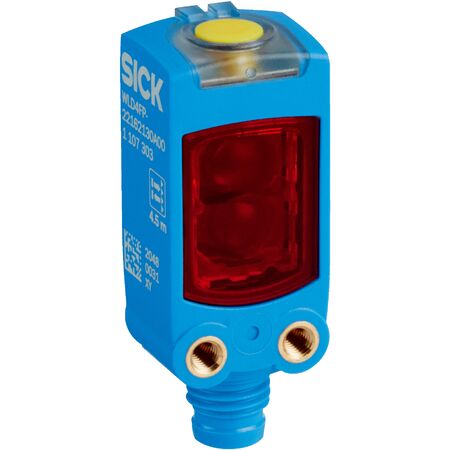

Photoelectric Sensor WLD4FP-2256K130A00 | Dual Lens System | IP66/IP67 Rated | 4.5m Sensing Range | by SICK
The WLD4FP-2256K130A00 photoelectric sensor features a dual lens system for precise object detection, with a sensing range of 0 mm to 4.5 m. Ideal for industrial automation, this robust sensor operates in temperatures from -40 °C to +60 °C and is equipped with an IO-Link V1.1 interface for easy configuration. Its durable design ensures high shock and vibration resistance, making it perfect for manufacturing process control and safety monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor WLD4FP-2256K130A00 | Dual Lens System | IP66/IP67 Rated | 4.5m Sensing Range | by SICK
Brand: SICK
SKU: 1119992
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, IO-Link photoelectric sensor, SICK WLD4FP sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0 mm to 4.5 m; recommended 0.035 m to 3.9 m
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA without load at 24 V
- Output type: 1 push-pull digital output (PNP/NPN), light switching
- Response time: ≤ 500 µs; switching frequency up to 1,000 Hz
- Protection class: III
- Housing material: Plastic VISTAL®; front screen PMMA
- Connection: Male M8, 4-pin connector
- Enclosure rating: IP66 and IP67
- Operating temperature: -40 °C to +60 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1,000 Hz, amplitude 1 mm
- Communication: IO-Link V1.1 with COM2 (38.4 kBaud)
- Dimensions (H x L x W): 40mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Sensing range from 0 mm up to 4.5 m with recommended range 0.035 m to 3.9 m
- PinPoint LED visible red light with 635 nm wavelength and 100,000 hours average service life
- BluePilot teach-in button for sensitivity adjustment
- IO-Link V1.1 interface for sensor parameter configuration and Smart Task functions
- LED indicators for alignment aid, operating status, and light beam status
- Robust plastic VISTAL® housing with IP66/IP67 protection rating
- Operating temperature range from -40 °C to +60 °C
- High shock and vibration resistance
- Reverse polarity, overcurrent, and short-circuit protected outputs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment, wiring, and configuration using IO-Link for optimal sensor performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Robust design reduces environmental impact through durability and reliability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WLD4FP-2256K130A00 photoelectric sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
