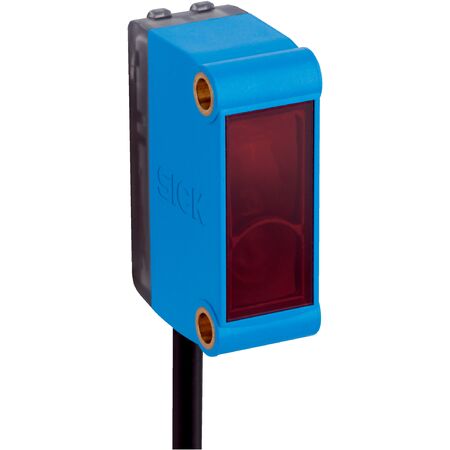

Photoelectric Sensor GL6-P0111S61 | Dual Lens System | IP67 Rated | by SICK
The GL6-P0111S61 Photoelectric Sensor features a dual lens system and a sensing range of 0.07 m to 6 m, making it ideal for industrial automation and safety applications. With a robust IP67 rating for dust and water protection, this sensor operates efficiently in temperatures from -30°C to +55°C, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor GL6-P0111S61 | Dual Lens System | IP67 Rated | by SICK
Brand: SICK
SKU: 1073738
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Optical sensor, Industrial photo sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range max: 0.03 m to 7.2 m
- Sensing range typical: 0.07 m to 6 m
- Polarisation filter: Yes
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Light spot size: Ø 8 mm at 350 mm distance
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Output type: PNP, light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: < 625 µs
- Switching frequency: 1,000 Hz
- Protection class: III
- Circuit protection: Types A, B, D
- Housing material: Plastic ABS/PC
- Front screen material: Plastic PMMA
- Cable material: Plastic PUR, 3 m length
- Enclosure rating: IP67
- Operating temperature: -30°C to +55°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.12 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system
- Sensing range from 0.07 m to 6 m
- Polarisation filter for reliable detection
- Visible red light with 650 nm wavelength
- Cable with M8, 4-pin connector with knurled nut
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -30°C to +55°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor systems to ensure proper wiring and configuration.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GL6-P0111S61 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
