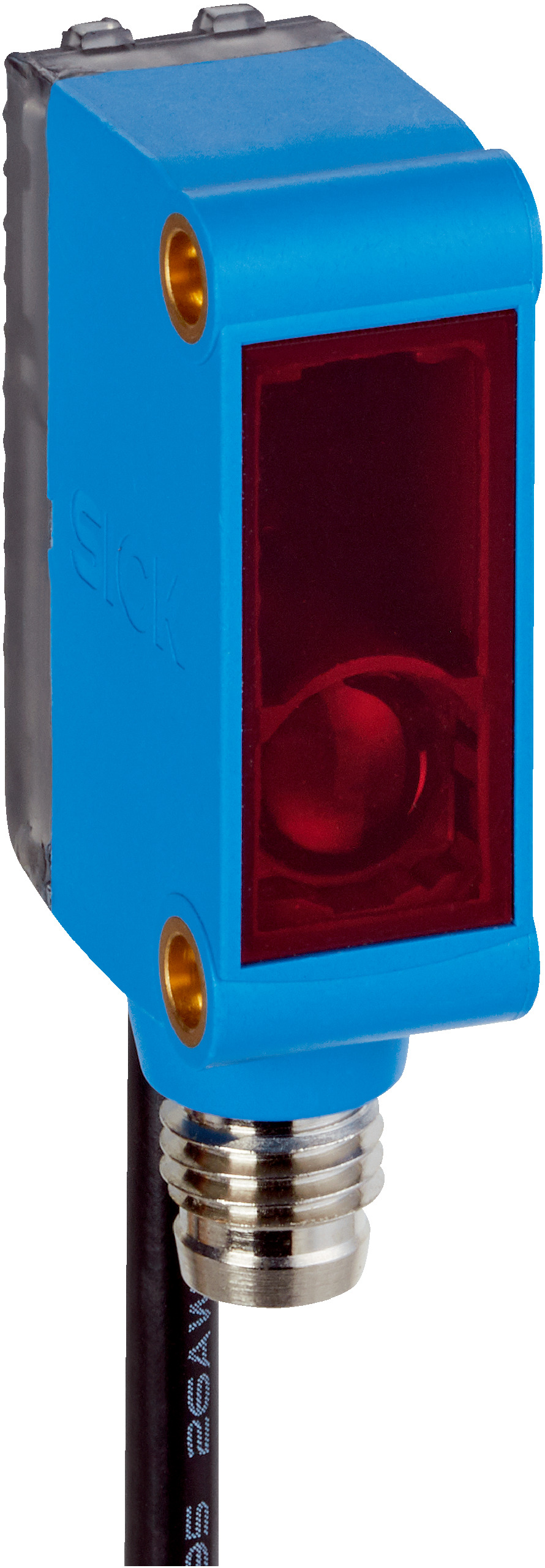

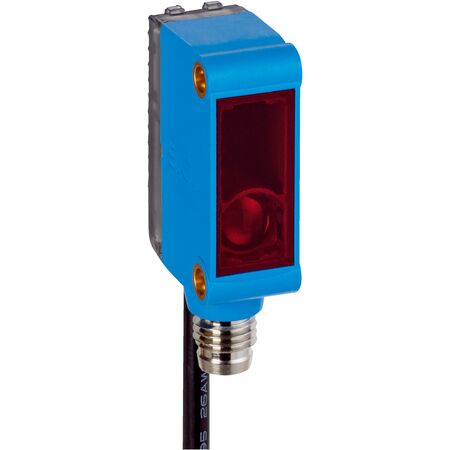

Photoelectric Sensor GL6-CC011K00 | Retro-Reflective with Light Grid | IP65 & IP67 Rated | by SICK
The GL6-CC011K00 photoelectric sensor features a retro-reflective design with a light grid system, making it ideal for industrial automation and safety applications. With a robust ABS housing and an IP65/IP67 enclosure rating, it ensures reliable performance in challenging environments. This sensor operates effectively within a range of up to 6 meters and is equipped with a PinPoint LED visible red light source, providing excellent ambient light immunity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device version: FlexChain Guest
- Sensor principle: Photoelectric retro-reflective sensor with light grid system
- Light source: PinPoint LED, visible red light
- Light spot size: Ø 8 mm at 350 mm distance
- Wavelength: 650 nm
- Supply voltage: 12 V via FlexChain host
- Adjustment: Cable sensitivity via FlexChain host
- Connection type: Male connector M8, 4-pin; Cable with female connector M8, 4-pin, 0.15 m
- Housing material: Plastic (ABS)
- Enclosure rating: IP65, IP67
- Protection class: III
- Operating range: 6 m
- Shock resistance: Single shocks 30 g, 11 ms; continuous shocks 25 g, 6 ms
- Vibration resistance: Sinusoidal oscillation 20-2,000 Hz, 10 g
- EMC: EN 61000-6-2, EN 61000-6-3
- Ambient light immunity: Direct 22,000 lx
- Operating temperature: -25°C to +55°C
- Storage temperature: -25°C to +70°C
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with light grid system
- PinPoint LED visible red light source with 650 nm wavelength
- Operating range up to 6 meters
- Robust plastic ABS housing with IP65 and IP67 enclosure rating
- Shock resistance up to 30 g and vibration resistance up to 10 g
- EMC compliant with EN 61000-6-2 and EN 61000-6-3 standards
- Ambient light immunity up to 22,000 lx
- Wide ambient operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper integration with FlexChain host systems and compliance with safety standards.
Applications
- Industrial automation and safety systems
- Object detection and presence monitoring
- Machine guarding and access control
- Material handling and logistics
Standards & Compliance
- Complies with AS/NZS 61000 series for Electromagnetic Compatibility (EMC) standards
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK GL6-CC011K00 FlexChain Guest photoelectric sensor is available for immediate purchase, ideal for industrial automation and safety applications.
