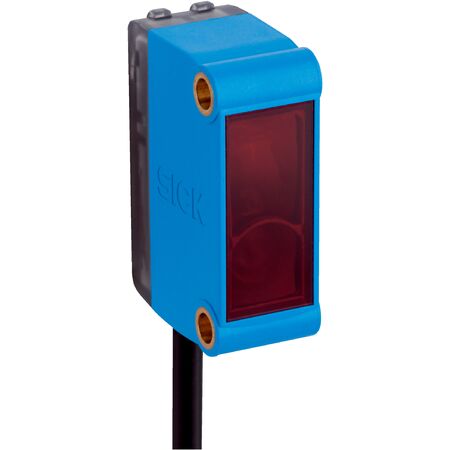

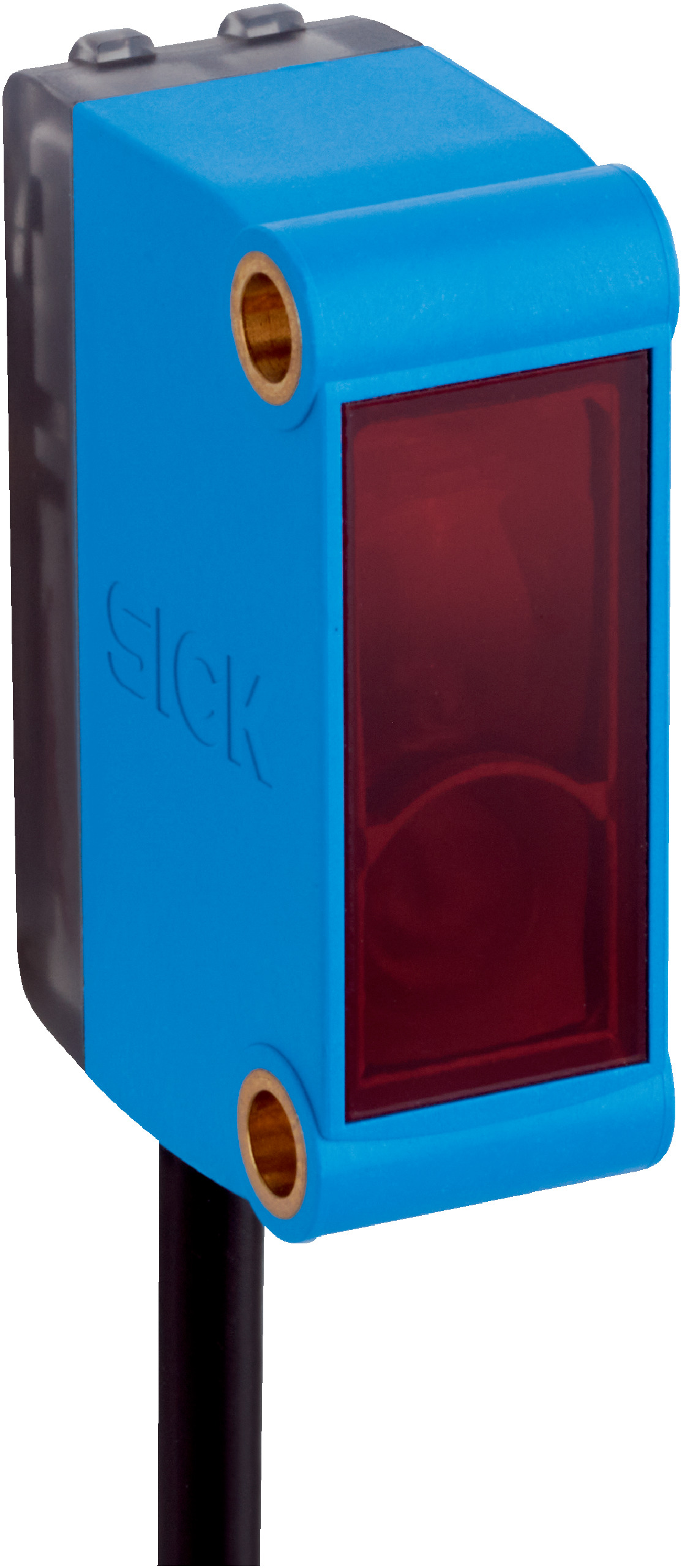

Photoelectric Sensor GL6-N0111S12 | IP67 Rated | Dual Lens System | 0.03m to 6m Sensing Range | by SICK
The GL6-N0111S12 Photoelectric Sensor is designed for industrial automation, featuring a dual lens system and an impressive sensing range of 0.03m to 6m. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for safety and monitoring in manufacturing processes. Its selectable light/dark switching mode and high switching frequency of 1,000 Hz enhance its versatility for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor GL6-N0111S12 | IP67 Rated | Dual Lens System | 0.03m to 6m Sensing Range | by SICK
Brand: SICK
SKU: 1059087
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Optical sensor, Industrial photo sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Protection class: III
- Output type: NPN digital output
- Switching mode: Light/dark selectable
- Signal voltage NPN HIGH/LOW: Approx. VS / ≤ 3 V
- Output current max: ≤ 100 mA
- Response time: < 625 µs
- Switching frequency: 1,000 Hz
- Housing material: Plastic ABS/PC
- Front screen material: Plastic PMMA
- Cable: Plastic PVC, 1.3 m length with JST 3-pin connector
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system
- Sensing range from 0.03 m to 6 m
- Polarisation filter for reliable detection
- Visible red light with 650 nm wavelength
- Light spot size Ø 8 mm at 350 mm distance
- Selectable light/dark switching mode
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Compact plastic housing made of ABS/PC
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable IP67 rated housing reduces replacement frequency
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GL6-N0111S12 Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
