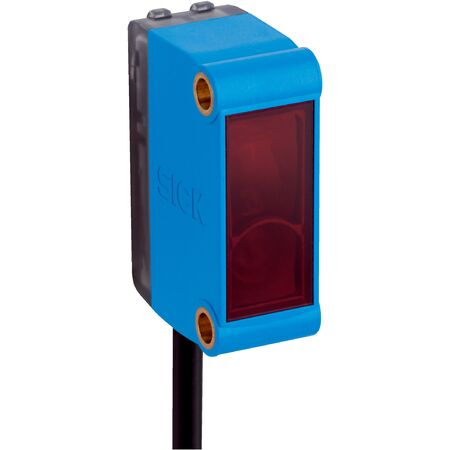

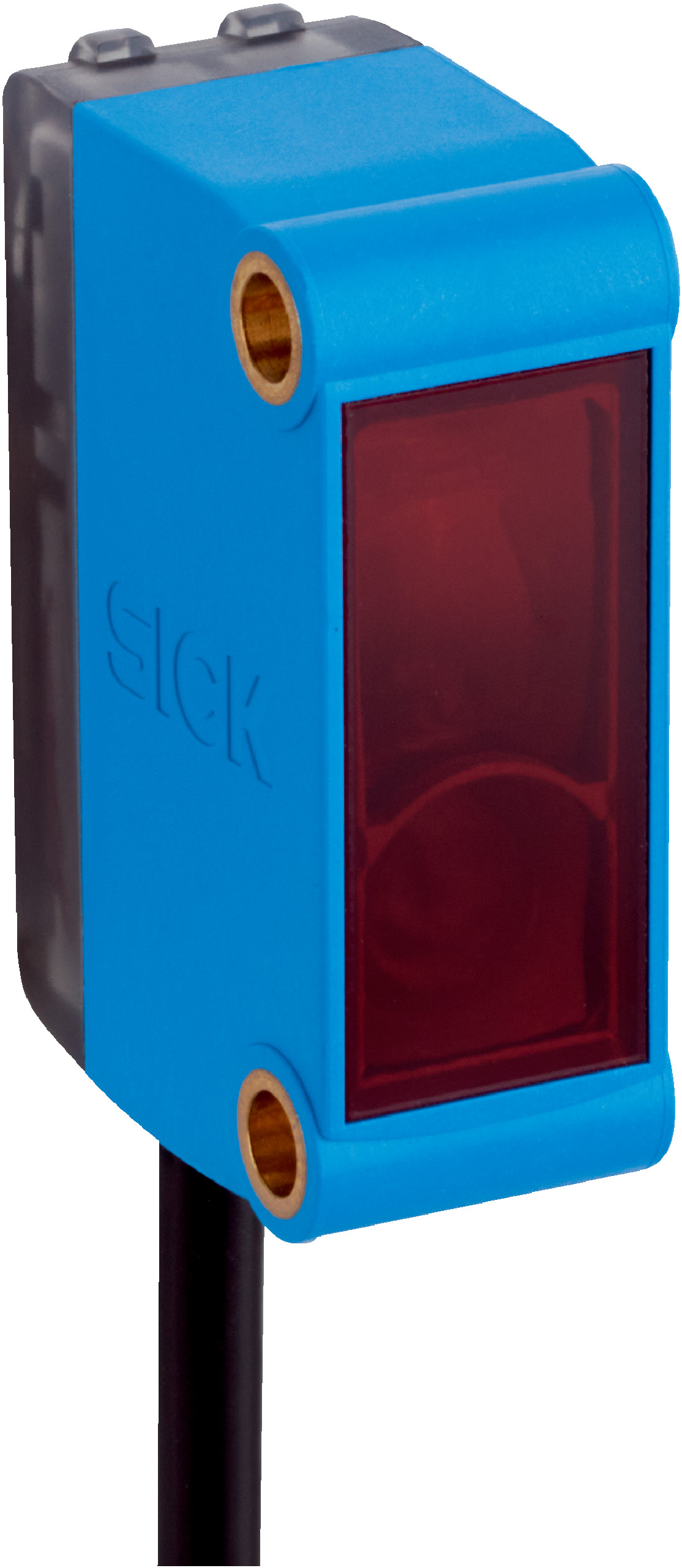

Photoelectric Sensor GL6-N1111 | Dual Lens System | IP67 Rated | 0.03m to 6m Sensing Range | by SICK
The GL6-N1111 Photoelectric Sensor is designed for industrial automation, featuring a dual lens system for precise object detection from 0.03m to 6m. With an IP67 rating, it withstands harsh environments, making it ideal for safety and monitoring in manufacturing processes. Its fast response time under 625 µs and high switching frequency of 1,000 Hz ensure reliable performance in material handling and packaging systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor GL6-N1111 | Dual Lens System | IP67 Rated | 0.03m to 6m Sensing Range | by SICK
Brand: SICK
SKU: 1050709
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Optical sensor, SICK GL6 sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range max.: 0.03 m to 6 m
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Protection class: III
- Output type: NPN digital output with light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: < 625 µs
- Switching frequency: 1,000 Hz
- Housing material: Plastic ABS/PC
- Cable: 3-wire, 2 m length, 0.14 mm² conductor size
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Sensing range from 0.03 m up to 6 m
- Polarisation filter included to reduce interference
- Visible red light with 650 nm wavelength and Ø 8 mm light spot size at 350 mm
- NPN digital output with selectable light/dark switching mode
- High switching frequency of 1,000 Hz and fast response time under 625 µs
- Robust IP67 rated housing for harsh environments
- Operating temperature range from -25 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable construction minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GL6-N1111 Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
