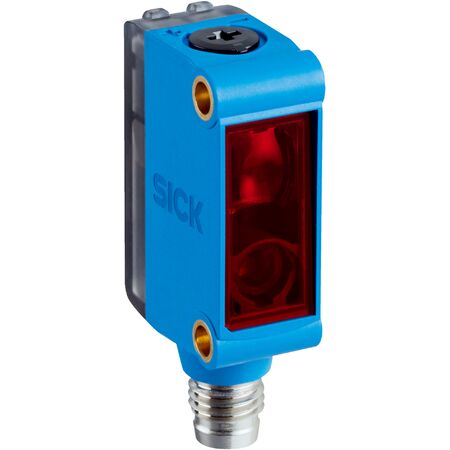

Photoelectric Sensor GL6-N3211 | Retro-Reflective | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Sensor GL6-N3211 is a retro-reflective sensor designed for industrial automation, featuring a sensing range of 0.03 m to 6 m and a high switching frequency of 1,000 Hz. With its durable IP67 rated housing and visible red light PinPoint LED, this sensor ensures reliable detection and safety in manufacturing processes, making it ideal for object detection and monitoring applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor GL6-N3211 | Retro-Reflective | IP67 Rated | Fast Response Time | by SICK
Brand: SICK
SKU: 1094438
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Optical sensor, SICK GL6 sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range max.: 0.03 m to 6 m
- Sensing range typical: 0.07 m to 5 m
- Polarisation filter: Yes
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Light spot size: Ø 8 mm at 350 mm distance
- Adjustment: Potentiometer, 270°
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ±10%
- Current consumption: 30 mA
- Protection class: III
- Output type: NPN digital output
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: < 625 µs
- Switching frequency: 1,000 Hz
- Circuit protection: Types A, B, D
- Housing material: Plastic ABS/PC
- Front screen material: Plastic PMMA
- Connection: Connector M8, 3-pin
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Sensing range from 0.03 m to 6 m
- Polarisation filter for reliable detection
- Visible red light PinPoint LED with 650 nm wavelength
- Adjustable potentiometer with 270° rotation
- Light/dark switching mode selectable via light/dark selector
- High switching frequency of 1,000 Hz and fast response time under 625 µs
- IP67 rated enclosure for dust and water protection
- Compact plastic housing made of ABS/PC with PMMA front screen
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 rated housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GL6-N3211 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
