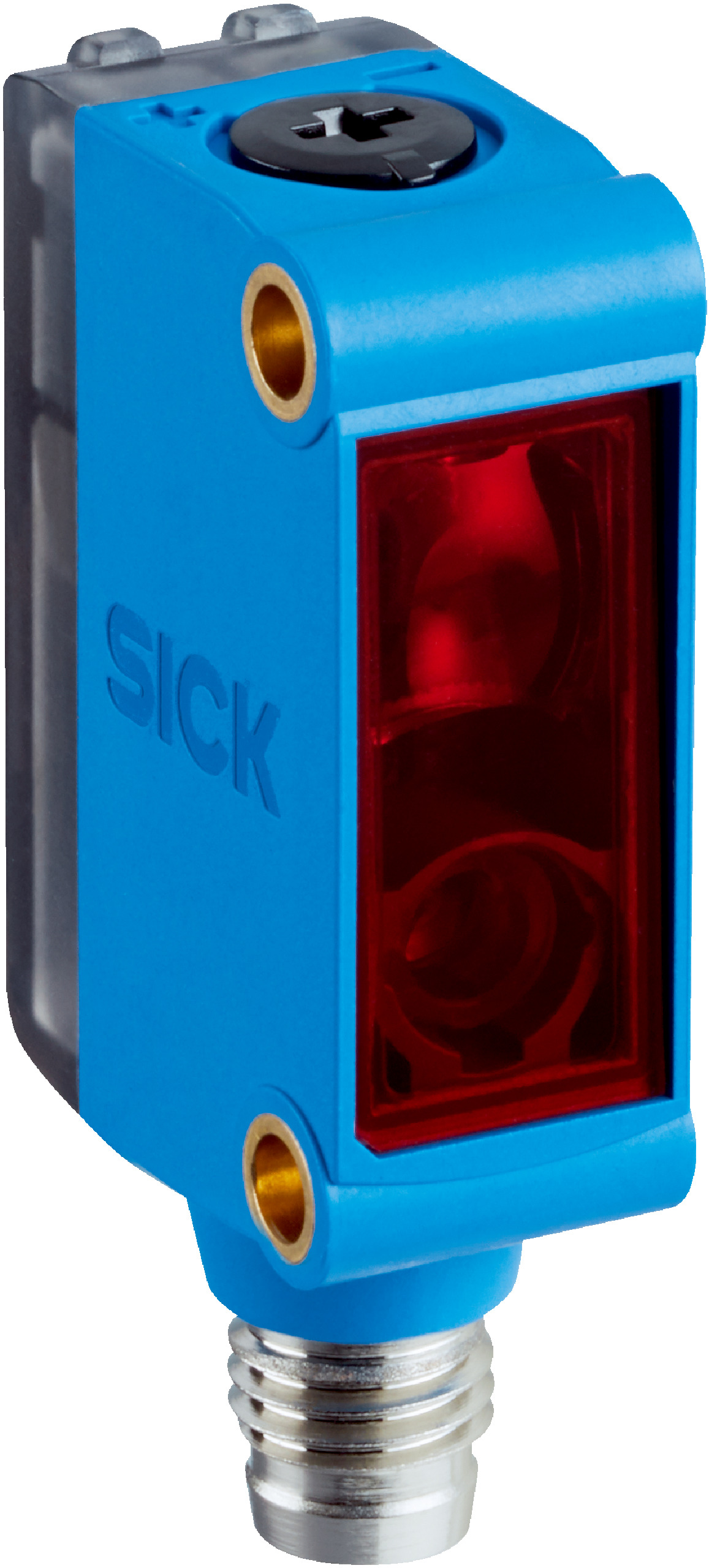

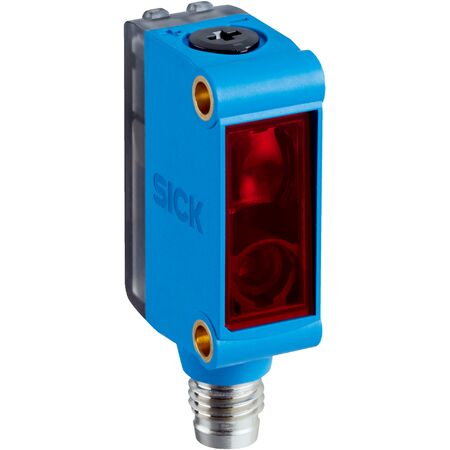

Photoelectric Sensor GL6-N4211 | Retro-Reflective | IP67 Rated | 0.03m to 6m Sensing Range | by SICK
The GL6-N4211 Photoelectric Sensor is designed for industrial automation, featuring a retro-reflective dual lens system with a sensing range of 0.03m to 6m. With a robust IP67 rating and a visible red light PinPoint LED, this sensor ensures reliable object detection and safety monitoring in harsh environments, making it ideal for manufacturing and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor GL6-N4211 | Retro-Reflective | IP67 Rated | 0.03m to 6m Sensing Range | by SICK
Brand: SICK
SKU: 1059631
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Optical sensor, Industrial photo sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range max.: 0.03 m to 6 m
- Polarisation filter: Yes
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Light spot size: Ø 8 mm at 350 mm distance
- Adjustment: Potentiometer, 270°
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Protection class: III
- Digital output: NPN, light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: < 625 µs
- Switching frequency: 1,000 Hz
- Housing material: Plastic ABS/PC
- Front screen material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Sensing range from 0.03 m up to 6 m
- Polarisation filter to reduce interference
- Visible red light PinPoint LED with 650 nm wavelength
- Adjustable potentiometer with 270° rotation
- NPN digital output with selectable light/dark switching
- High switching frequency of 1,000 Hz and response time under 625 µs
- Robust plastic ABS/PC housing with IP67 rating for harsh environments
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GL6-N4211 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
