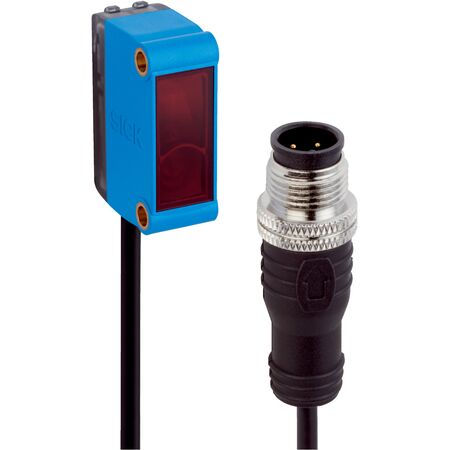

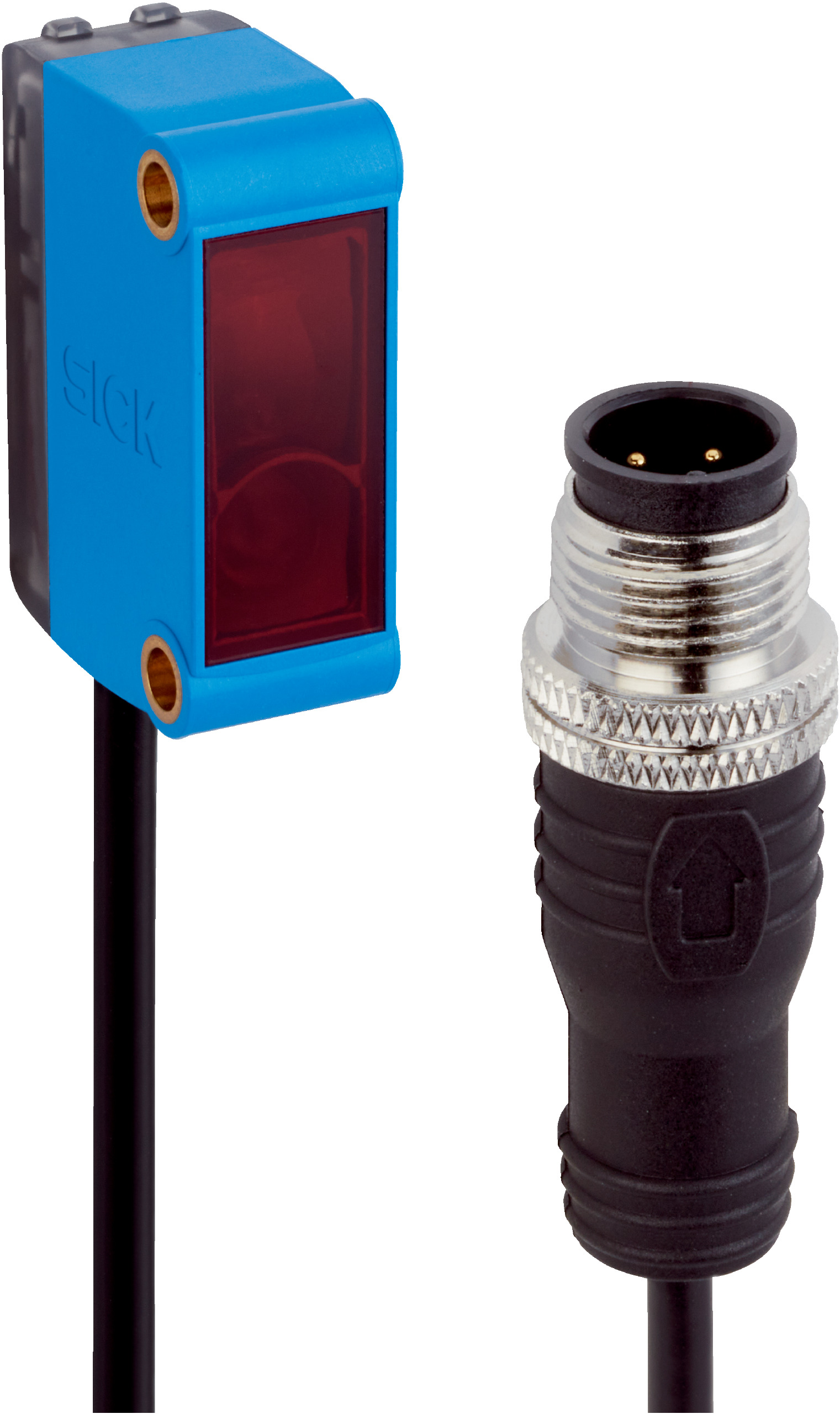

Photoelectric Sensor GL6-P0110P21 | Dual Lens System | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Sensor GL6-P0110P21 features a dual lens system for precise object detection, with a sensing range of 0.07 m to 5 m and a maximum of 6 m. Ideal for industrial automation and manufacturing processes, this sensor offers selectable light/dark switching and operates with a fast response time under 625 µs. With an IP67 rating, it ensures durability in challenging environments, making it perfect for safety and security applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor GL6-P0110P21 | Dual Lens System | IP67 Rated | Fast Response Time | by SICK
Brand: SICK
SKU: 1130674
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, PNP photoelectric sensor, Industrial object sensor, SICK GL6 sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0.07 m to 5 m (max 6 m)
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Light spot size: Ø 8 mm at 350 mm
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Output type: PNP digital output with light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: < 625 µs
- Switching frequency: 1000 Hz
- Protection class: III
- Housing material: Plastic ABS/PC
- Connection: Cable with M12 male connector, 4-pin
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Sensing range from 0.07 m to 5 m, maximum up to 6 m
- Polarisation filter for reliable detection
- Visible red light PinPoint LED with 650 nm wavelength
- Light spot size of Ø 8 mm at 350 mm distance
- Selectable light/dark switching mode with PNP output
- Fast response time under 625 µs and switching frequency up to 1000 Hz
- Protection class III and circuit protection options
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Safety and security systems requiring precise sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable IP67 rated housing reduces waste by extending product life
- Non-contact sensing reduces mechanical wear and maintenance
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GL6-P0110P21 Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
