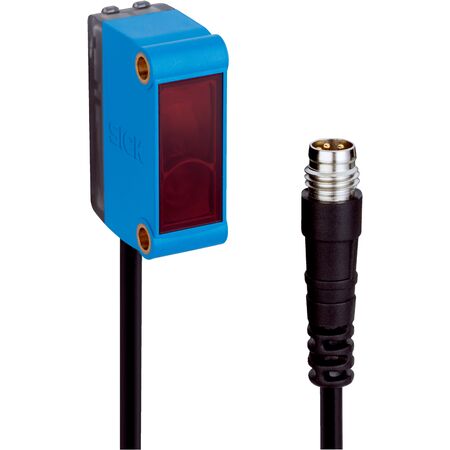

Photoelectric Sensor GL6-P0311S40 | Retro-Reflective | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Sensor GL6-P0311S40 is a cutting-edge retro-reflective sensor designed for industrial automation and manufacturing applications. With a sensing range of 0.07 m to 5 m and a fast response time under 625 µs, it ensures precise object detection. Its durable IP67 rated enclosure makes it perfect for harsh environments, while the visible red light emitted by the PinPoint LED enhances visibility and performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor GL6-P0311S40 | Retro-Reflective | IP67 Rated | Fast Response Time | by SICK
Brand: SICK
SKU: 1066976
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Optical sensor, SICK GL6 sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0.07 m to 5 m (max 6 m)
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Light spot size: Ø 8 mm at 350 mm distance
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Output type: PNP digital output, dark switching
- Output current max: ≤ 100 mA
- Response time: < 625 µs
- Switching frequency: 1,000 Hz
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic ABS/PC, front screen plastic PMMA
- Connection: Cable with M8 3-pin connector, 200 mm length
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Sensing range from 0.07 m to 5 m, maximum 6 m
- Polarisation filter included
- Emits visible red light with 650 nm wavelength using PinPoint LED
- Dark switching mode with PNP digital output
- Fast response time under 625 µs and switching frequency up to 1,000 Hz
- Protection class III and IP67 rated enclosure for harsh environments
- Cable with M8 3-pin connector, 200 mm length
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems
- Material handling and packaging
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GL6-P0311S40 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
