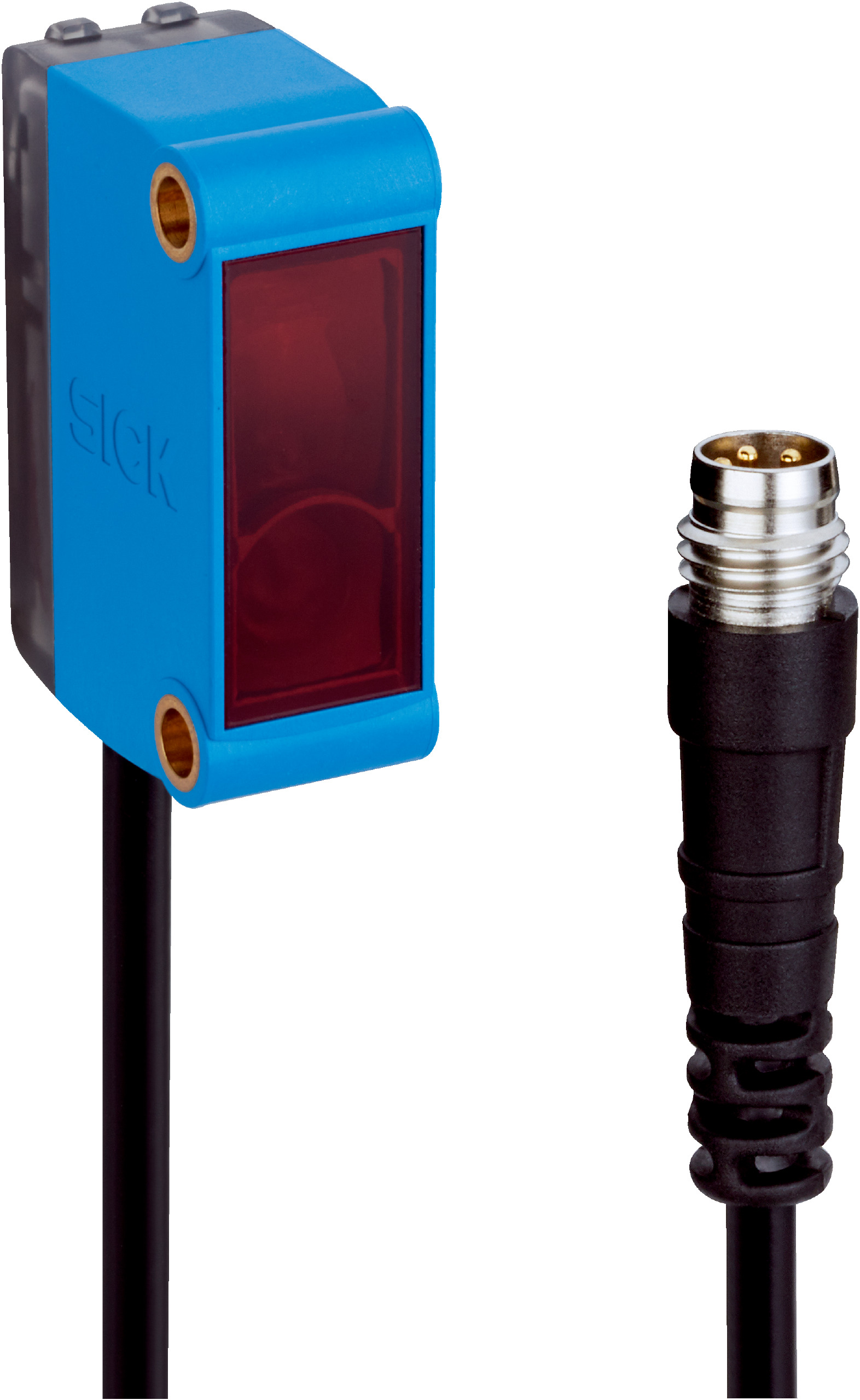

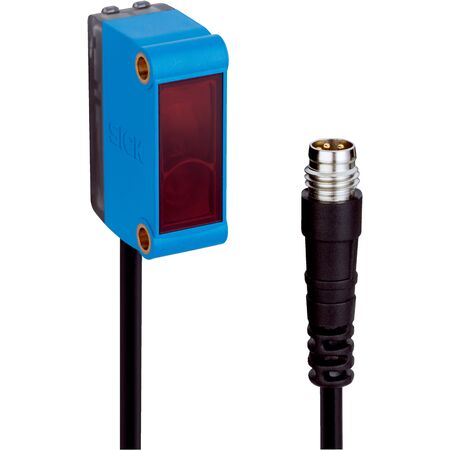

Photoelectric Sensor GL6-P0511S19 | Retro-Reflective | IP67 Rated | 1,000 Hz Switching Frequency | by SICK
The GL6-P0511S19 Photoelectric Sensor is designed for industrial automation, featuring a retro-reflective design with a sensing range of 0.07 m to 5 m. With a high switching frequency of 1,000 Hz and a fast response time under 625 µs, it ensures reliable object detection in manufacturing and safety applications. Its durable IP67 rated enclosure provides excellent protection against dust and water, making it ideal for various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor GL6-P0511S19 | Retro-Reflective | IP67 Rated | 1,000 Hz Switching Frequency | by SICK
Brand: SICK
SKU: 1061962
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Optical sensor, SICK GL6 sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Output type: PNP light switching with max output current ≤ 100 mA
- Signal voltage PNP HIGH/LOW: VS- (≤ 3 V) / approx. 0 V
- Circuit protection: Types A, B, and D
- Connection: 3-pin M8 connector cable, 200 mm length
- Housing material: Plastic ABS/PC, front screen PMMA, cable PVC
- Protection class: III
- Switching frequency: 1,000 Hz
- Response time: < 625 µs
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Light spot size: Ø 8 mm at 350 mm distance
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Sensing range from 0.07 m to 5 m, maximum 6 m
- Polarisation filter to reduce interference
- Visible red light with 650 nm wavelength and Ø 8 mm light spot size at 350 mm
- High switching frequency of 1,000 Hz and fast response time under 625 µs
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -25 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems
- Material handling and packaging
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GL6-P0511S19 Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
