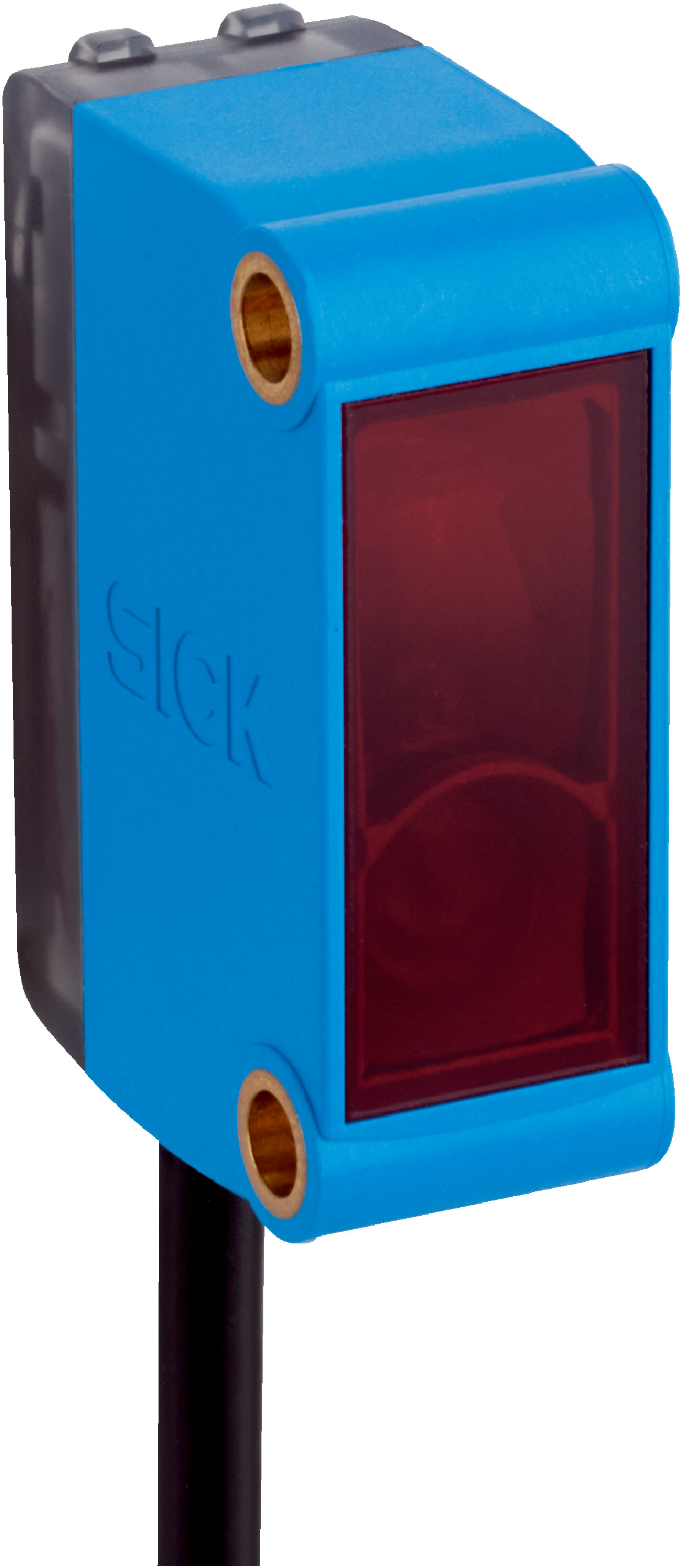

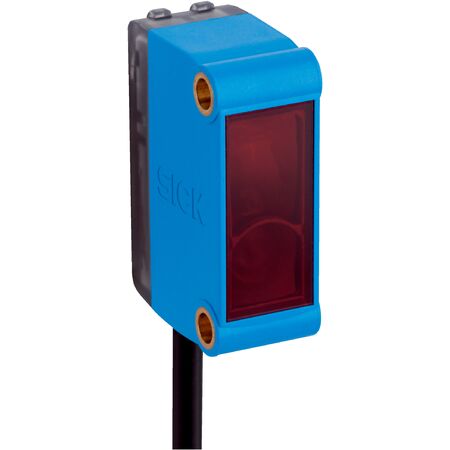

Photoelectric Sensor GL6-P0511S56 | Retro-Reflective | IP67 Rated | Fast Response Time | by SICK
The GL6-P0511S56 Photoelectric Sensor is designed for industrial automation, featuring a dual lens system for precise object detection. With a sensing range of 0.07 m to 5 m and a high switching frequency of 1,000 Hz, it ensures reliable performance in manufacturing and safety applications. Its IP67 rated enclosure provides excellent dust and water protection, making it ideal for challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor GL6-P0511S56 | Retro-Reflective | IP67 Rated | Fast Response Time | by SICK
Brand: SICK
SKU: 1073104
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Optical sensor, Industrial proximity sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0.07 m to 5 m (max 6 m)
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Light spot size: Ø 8 mm at 350 mm distance
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Output type: PNP digital output, light switching mode
- Output current max: ≤ 100 mA
- Response time: < 625 µs
- Switching frequency: 1,000 Hz
- Protection class: III
- Circuit protection: A, B, D
- Housing material: Plastic ABS/PC, front screen PMMA
- Cable: PUR, 600 mm length, 3-pin JST connector
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Sensing range from 0.07 m to 5 m, maximum up to 6 m
- Polarisation filter to reduce false triggering
- Visible red light with 650 nm wavelength and 8 mm light spot size at 350 mm
- High switching frequency of 1,000 Hz and fast response time under 625 µs
- IP67 rated enclosure for dust and water protection
- Compact plastic housing made of ABS/PC with PMMA front screen
- Cable connection with 3-pin JST connector and 600 mm PUR cable
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems
- Material handling and packaging
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 10 V DC to 30 V DC supply voltage
- Durable IP67 rated housing reduces environmental waste by extending product life
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GL6-P0511S56 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
