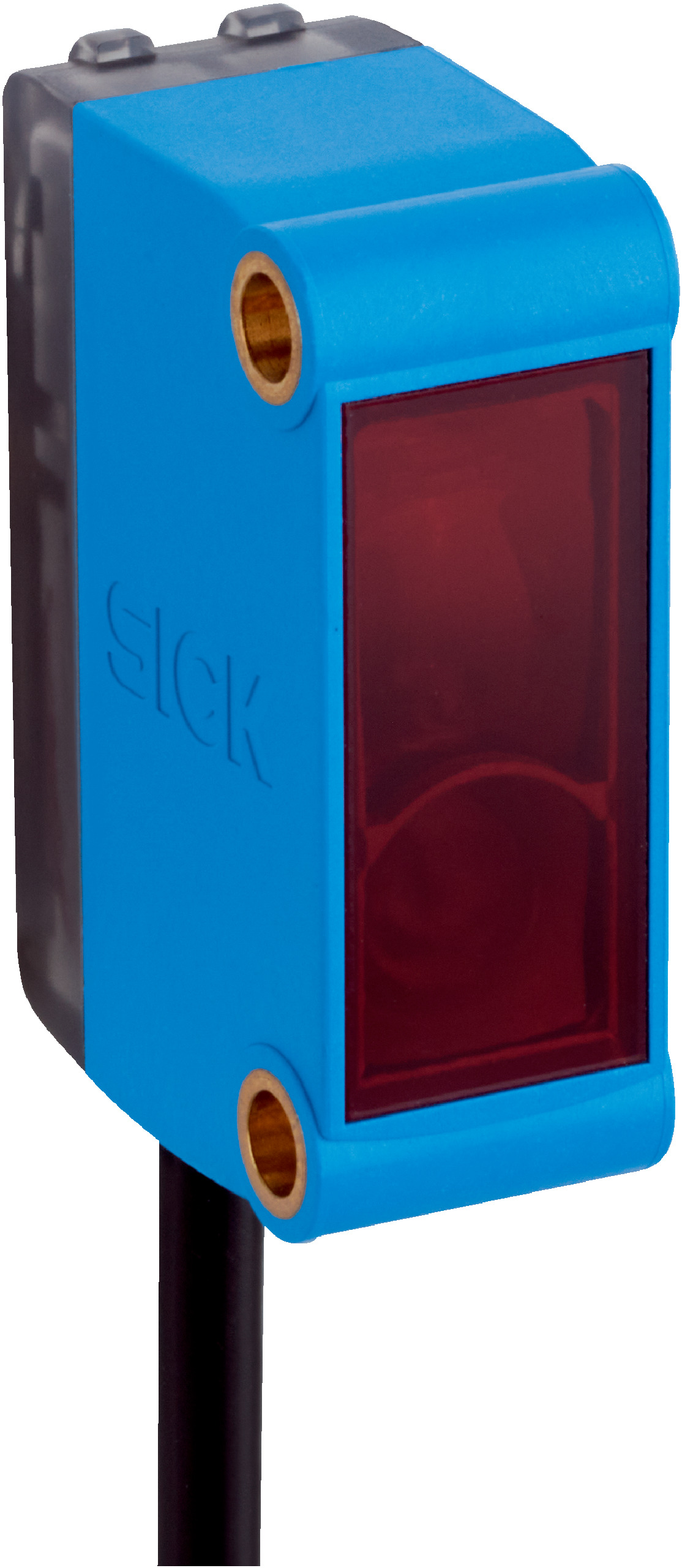

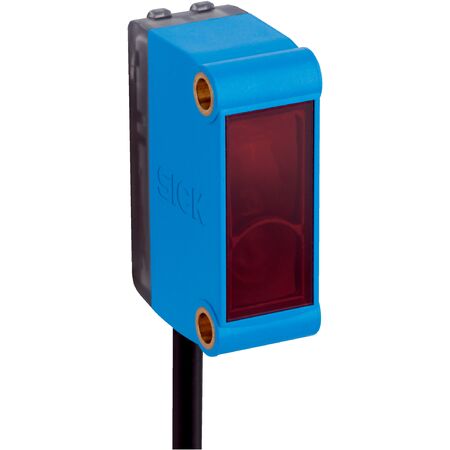

Photoelectric Sensor GL6-P1112 | Retro-Reflective | IP67 Rated | PNP Output | by SICK
The GL6-P1112 Photoelectric Sensor is designed for industrial automation, featuring a dual lens system for a sensing range of 0.03 m to 6 m. With a robust IP67 enclosure and high switching frequency of 1,000 Hz, it ensures reliable object detection and safety monitoring in manufacturing processes. Ideal for material handling and packaging systems, this sensor is built to withstand harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor GL6-P1112 | Retro-Reflective | IP67 Rated | PNP Output | by SICK
Brand: SICK
SKU: 1051779
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Optical sensor, PNP photoelectric sensor, Industrial object sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range max.: 0.03 m to 6 m
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Output type: PNP digital output with light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: < 625 µs
- Switching frequency: 1,000 Hz
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic ABS/PC
- Front screen material: Plastic PMMA
- Cable: 3-wire, 2 m length, PVC insulated
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Sensing range from 0.03 m up to 6 m
- Polarisation filter included to reduce interference
- Visible red light PinPoint LED with 650 nm wavelength
- Light spot size Ø 8 mm at 350 mm distance
- Selectable light/dark switching mode with PNP digital output
- High switching frequency of 1,000 Hz and response time under 625 µs
- Robust plastic housing (ABS/PC) with IP67 enclosure rating
- Supplied with stainless steel mounting bracket and reflector
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GL6-P1112 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
