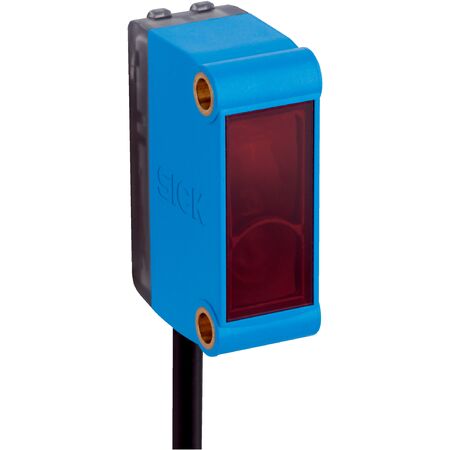

Photoelectric Sensor GL6-P1311 | Retro-Reflective | IP67 Rated | Fast Response Time | by SICK
The GL6-P1311 Photoelectric Sensor is designed for industrial automation, featuring a retro-reflective dual lens system with a sensing range of 0.03 m to 6 m. With a fast response time under 625 µs and an IP67 rating for dust and water protection, this sensor is perfect for manufacturing process control and safety systems, ensuring reliable object detection in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor GL6-P1311 | Retro-Reflective | IP67 Rated | Fast Response Time | by SICK
Brand: SICK
SKU: 1079225
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, PNP photoelectric sensor, Industrial object sensor, SICK GL6 sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range max.: 0.03 m to 6 m
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Protection class: III
- Digital output: PNP, dark switching
- Output current max: ≤ 100 mA
- Response time: < 625 µs
- Switching frequency: 1000 Hz
- Housing material: Plastic ABS/PC
- Front screen material: Plastic PMMA
- Cable: 3-wire, 2 m length, PVC
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Sensing range from 0.03 m to 6 m
- Polarisation filter included
- Visible red light with 650 nm wavelength
- PinPoint LED light source with Ø 8 mm light spot size at 350 mm
- Dark switching PNP digital output with max 100 mA output current
- Fast response time under 625 µs and switching frequency up to 1000 Hz
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -25 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems
- Material handling and packaging
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GL6-P1311 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
