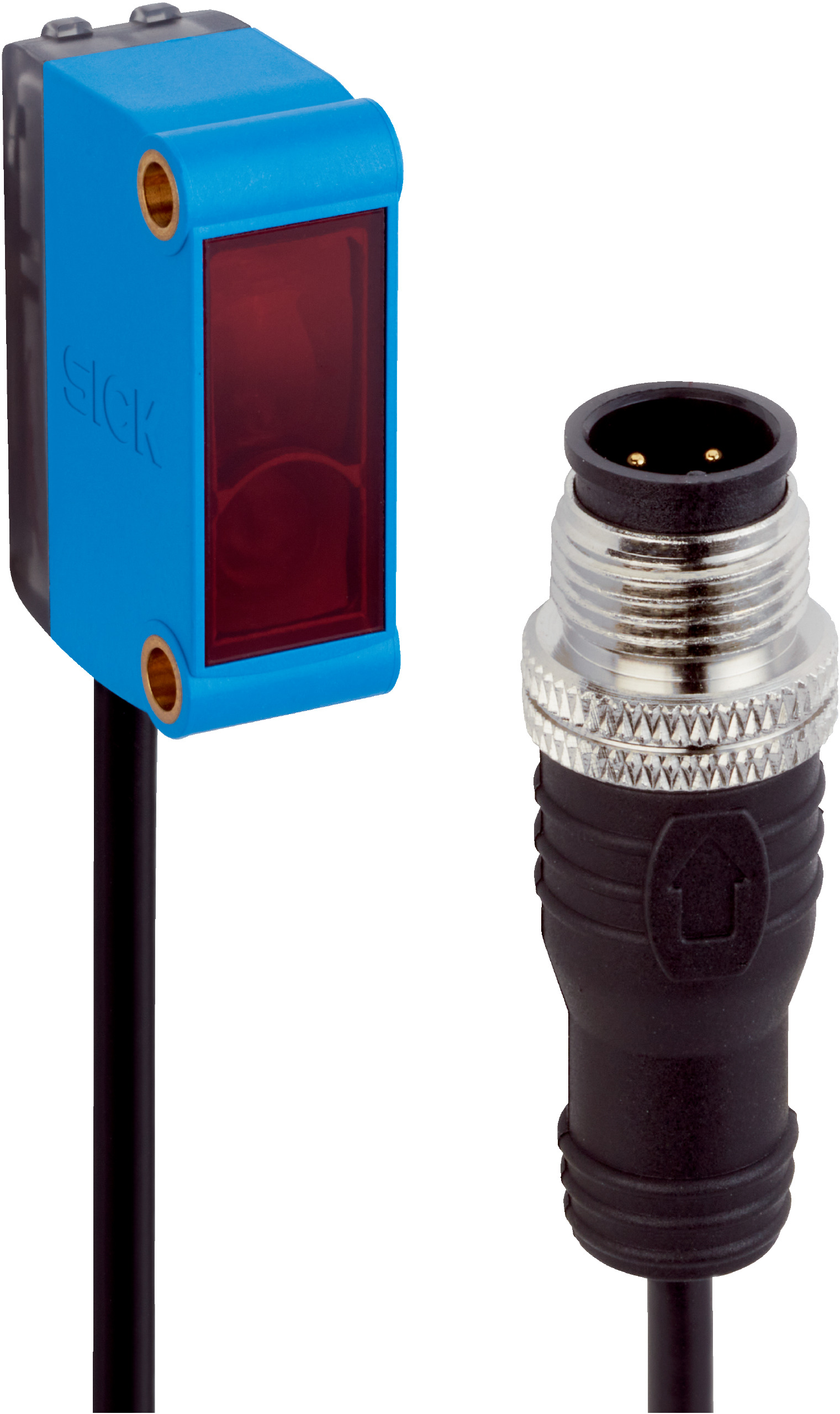

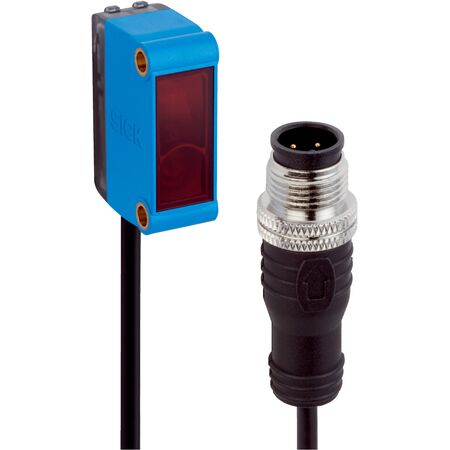

Photoelectric Sensor GL6-P7112 | IP67 Rated | Dual Lens System | 1,000 Hz Switching Frequency | by SICK
The GL6-P7112 Photoelectric Sensor is designed for industrial automation, featuring a dual lens system for precise object detection and a high switching frequency of 1,000 Hz. With an IP67 rating for dust and water protection, this sensor is perfect for safety and monitoring in manufacturing processes, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor GL6-P7112 | IP67 Rated | Dual Lens System | 1,000 Hz Switching Frequency | by SICK
Brand: SICK
SKU: 1053590
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Optical sensor, SICK GL6 sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Output type: PNP digital output
- Switching mode: Light/dark selectable
- Output current max: ≤ 100 mA
- Response time: < 625 µs
- Switching frequency: 1,000 Hz
- Protection class: III
- Housing material: Plastic ABS/PC
- Front screen material: Plastic PMMA
- Cable: Plastic PVC, 300 mm length with M12 male connector, 4-pin
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Sensing range from 0.03 m to 6 m
- Polarisation filter to reduce interference
- Visible red light PinPoint LED with 650 nm wavelength
- Light/dark switching mode selectable via light/dark selector
- High switching frequency of 1,000 Hz and fast response time under 625 µs
- IP67 rated enclosure for dust and water protection
- Supplied with stainless steel mounting bracket and reflector
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GL6-P7112 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
