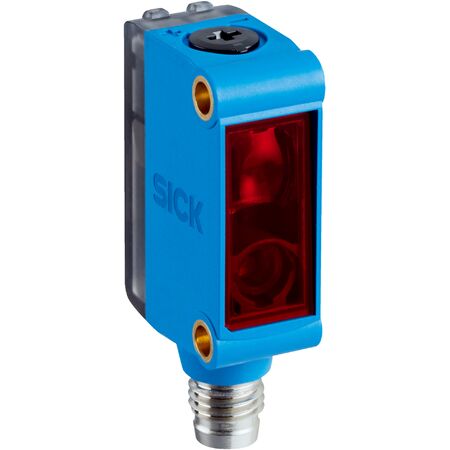

Photoelectric Sensor GL6G-P4211 | Retro-Reflective | IP67 Rated | High Switching Frequency | by SICK
The GL6G-P4211 Photoelectric Sensor is designed for industrial automation, featuring a retro-reflective design with a sensing range of 0.07 m to 5 m. With an IP67 rating for dust and water protection, this sensor is perfect for detecting transparent objects in manufacturing and safety applications. Its high switching frequency of 1,000 Hz ensures precise and reliable performance, making it an essential tool for any automation setup.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor GL6G-P4211 | Retro-Reflective | IP67 Rated | High Switching Frequency | by SICK
Brand: SICK
SKU: 1059632
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Optical sensor, SICK GL6G sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Protection class: III
- Output type: PNP digital output
- Switching mode: Light/dark switching selectable
- Response time: less than 625 µs
- Switching frequency: 1,000 Hz
- Attenuation along light beam: greater than 20%
- Circuit protection: types A, B, D
- Housing material: Plastic ABS/PC
- Front screen material: Plastic PMMA
- Connection: Male connector M8, 4-pin
- Operating temperature range: -25°C to +55°C
- Storage temperature range: -40°C to +70°C
- Enclosure rating: IP67
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system
- Sensing range from 0.07 m to 5 m, max 6 m
- Polarisation filter for improved detection
- Visible red light PinPoint LED with 650 nm wavelength
- Potentiometer adjustment with 270° rotation
- Light/dark switching mode selectable via light/dark selector
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Detects transparent objects effectively
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Detecting transparent objects in manufacturing
- Safety and control systems requiring precise sensing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GL6G-P4211 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
