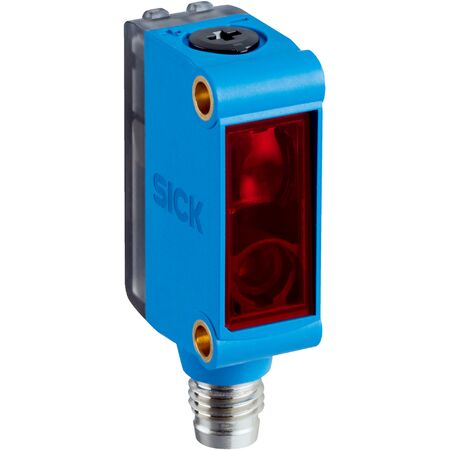

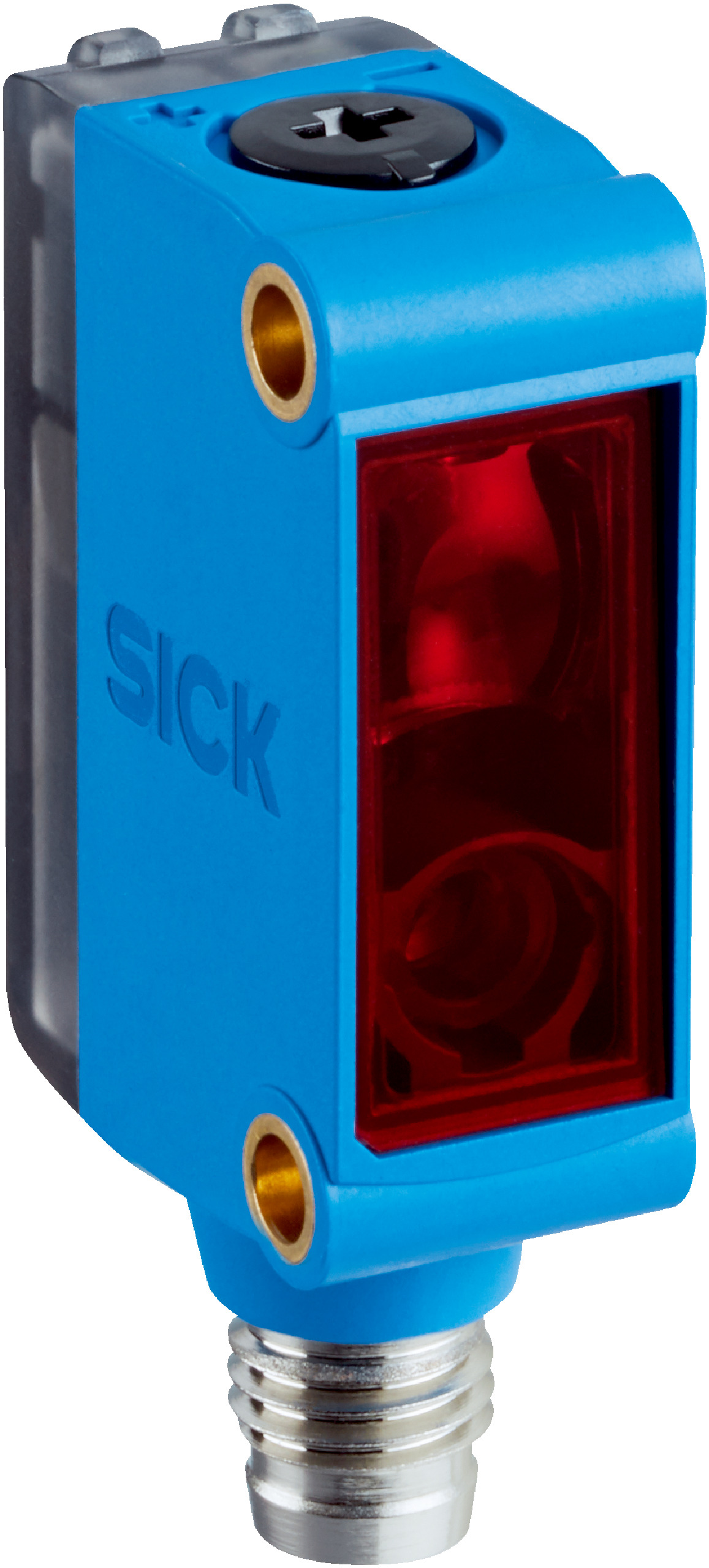

Photoelectric Sensor GL6L-F4211 | Retro-Reflective | IP67 Rated | 100,000 Hours Life | by SICK
The GL6L-F4211 Photoelectric Sensor features a retro-reflective sensing principle with a range of 0.08 m to 12 m, optimized for 0.08 m to 4.2 m. Ideal for industrial automation and object detection, this sensor is built to withstand harsh environments with its robust IP67 rated housing and offers a long service life of 100,000 hours, ensuring reliable performance in manufacturing and safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor GL6L-F4211 | Retro-Reflective | IP67 Rated | 100,000 Hours Life | by SICK
Brand: SICK
SKU: 1105823
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Laser sensor, Industrial object sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor
- Sensing range: 0.08 m to 12 m
- Recommended sensing range for best performance: 0.08 m to 4.2 m
- Light source: Visible red laser, 680 nm wavelength
- Laser class: 1
- Pulse duration: 2 µs
- Maximum pulse power: ≤ 11.9 mW
- Average service life: 100,000 hours at 25°C
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA without load
- Output type: 2 complementary PNP digital outputs
- Switching mode: Light/dark switching
- Response time: ≤ 625 µs
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -20°C to +50°C
- Storage temperature: -40°C to +70°C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 0.5 mm
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensing principle
- Sensing range from 0.08 m to 12 m with optimal performance at 0.08 m to 4.2 m
- Visible red laser light source with point-shaped light spot
- Polarisation filter included
- LED indicators for power and object detection status
- Robust IP67 rated housing for harsh environments
- High shock and vibration resistance
- Complementary PNP digital outputs with light/dark switching
- Reverse polarity, overcurrent, and short-circuit protected outputs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient operation with low current consumption
- Robust design minimizes environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK GL6L-F4211 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
