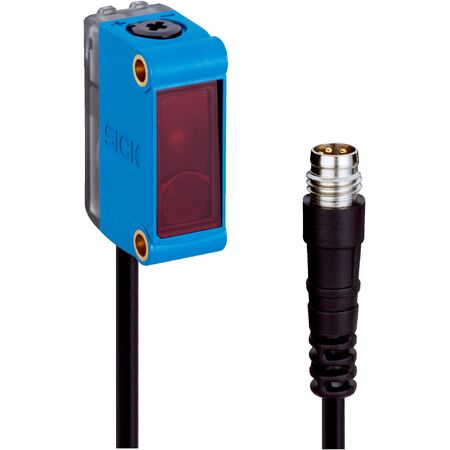

Photoelectric Sensor GL6L-F6211 | Retro-Reflective | IP67 Rated | 0.08m to 12m Sensing Range | by SICK
The GL6L-F6211 Photoelectric Sensor is designed for industrial automation, featuring a retro-reflective sensing principle with a range of 0.08m to 12m. With a visible red laser light source and IP67 rating, it ensures reliable object detection in various environments. Ideal for material handling and safety applications, this sensor offers robust performance with high shock and vibration resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor GL6L-F6211 | Retro-Reflective | IP67 Rated | 0.08m to 12m Sensing Range | by SICK
Brand: SICK
SKU: 1109727
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Laser sensor, Industrial object sensor
Technical Specifications
- Sensing range: 0.08 m to 12 m
- Light source: Visible red laser, 680 nm wavelength
- Laser class: 1
- Pulse duration: 2 µs
- Maximum pulse power: ≤ 11.9 mW
- Average service life: 100,000 hours at 25 °C
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA without load
- Switching frequency: 1,000 Hz
- Response time: ≤ 625 µs
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 0.5 mm
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensing principle
- Sensing range from 0.08 m to 12 m
- Visible red laser light source with 680 nm wavelength
- Polarisation filter for improved detection
- LED indicators for power and object detection status
- Robust plastic ABS housing with IP67 rating
- High shock and vibration resistance
- Complementary PNP digital outputs with light/dark switching
- Operating temperature range from -20 °C to +50 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Safety and presence detection in manufacturing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GL6L-F6211 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
