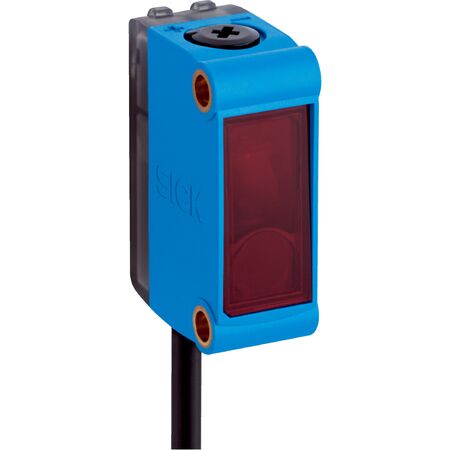

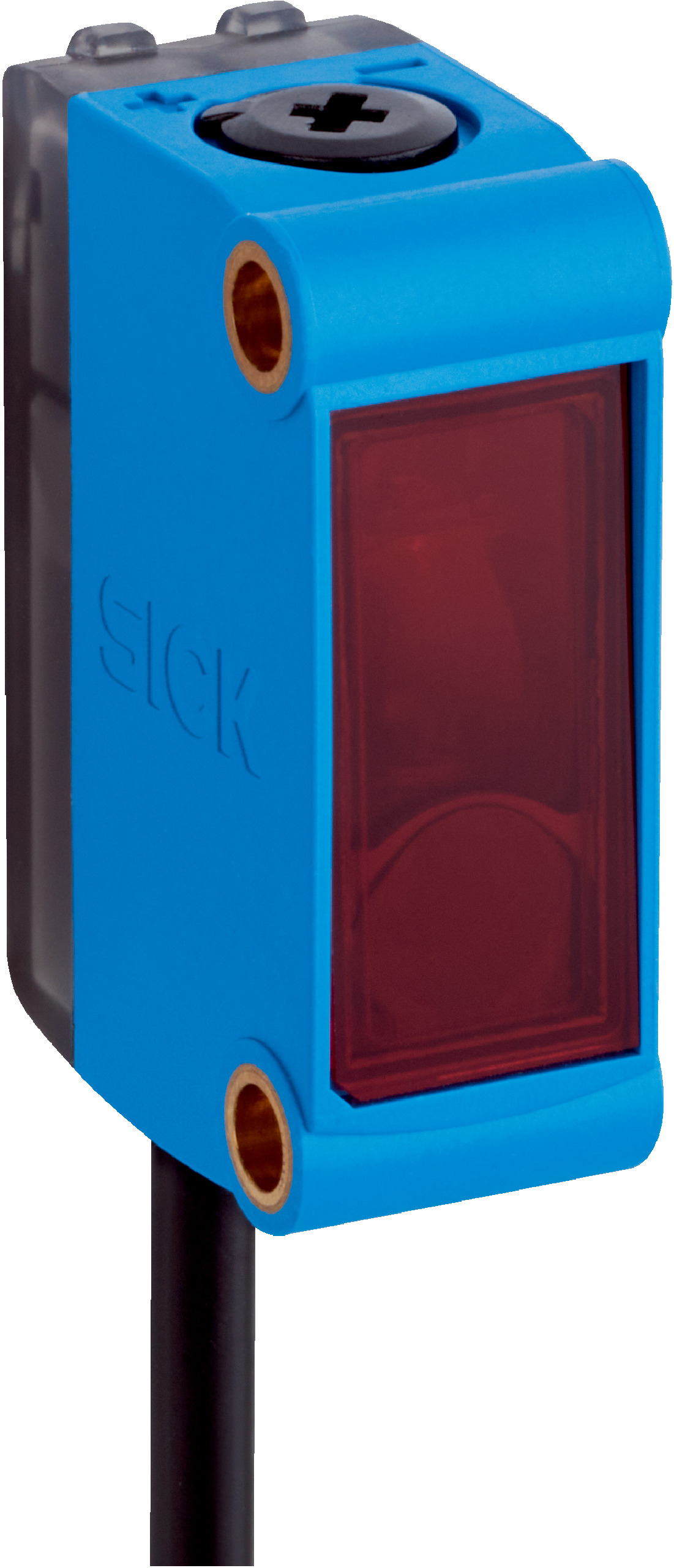

Photoelectric Sensor GL6L-N1212 | IP67 Rated | 12m Sensing Range | NPN Output | by SICK
The GL6L-N1212 Photoelectric Sensor is designed for industrial automation, featuring an impressive sensing range of 0.08 m to 12 m and an IP67 rated enclosure for dust and water protection. With a visible red laser light source at 680 nm and robust shock and vibration resistance, this sensor is perfect for manufacturing process control and safety monitoring in production lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor GL6L-N1212 | IP67 Rated | 12m Sensing Range | NPN Output | by SICK
Brand: SICK
SKU: 1115575
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Laser sensor, Industrial object sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA without load
- Output type: 1 NPN digital output with light/dark switching
- Response time: ≤ 625 µs
- Switching frequency: 1,000 Hz
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 0.5 mm
- Cable: 3-wire, 2 m length, Ø 8 mm diameter
- Housing material: Plastic ABS
- Front screen material: Plastic PMMA
- Laser class: 1
- Wavelength: 680 nm
- Maximum pulse power: ≤ 11.9 mW
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensing principle
- Sensing range from 0.08 m to 12 m
- Visible red laser light source with 680 nm wavelength
- Polarisation filter included
- Point-shaped light spot with 3.5 mm diameter at 1 m
- LED indicators for power and object detection status
- IP67 rated enclosure for dust and water protection
- Robust against sunlight up to 13,000 lx
- High shock and vibration resistance
- Adjustable sensing range via potentiometer
- Light/dark switching mode with NPN output
- Reverse polarity, overcurrent, and short-circuit protected outputs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient laser light source minimizes power consumption
- Robust design reduces environmental impact from frequent repairs or replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GL6L-N1212 Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
