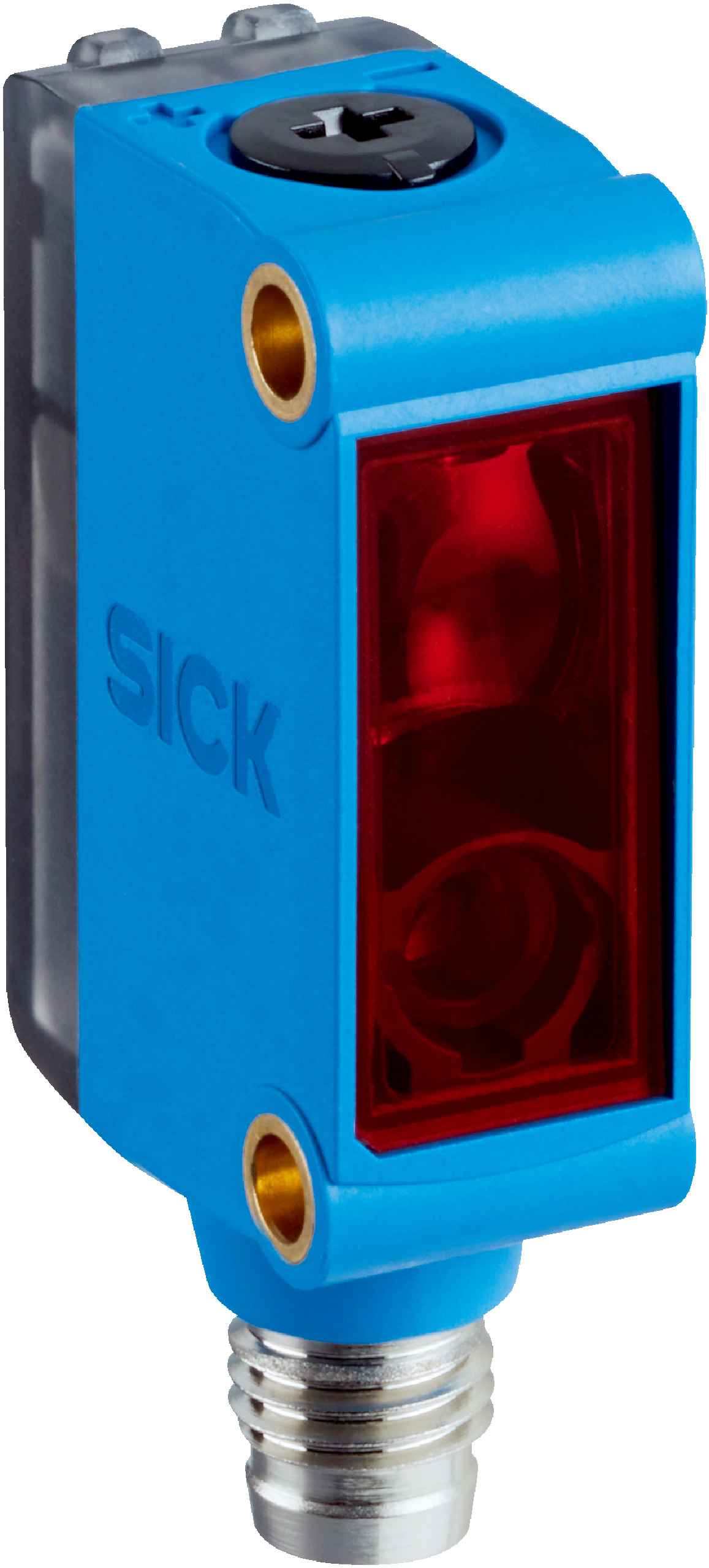

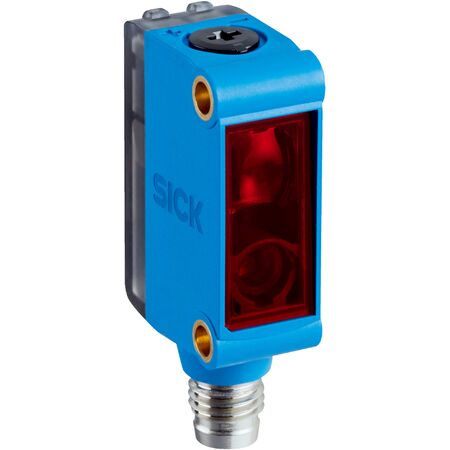

Photoelectric Sensor GL6L-P0211S04 | IP67 Rated | 0.08m to 12m Sensing Range | PNP Output | by SICK
The Photoelectric Sensor GL6L-P0211S04 is designed for industrial automation, featuring a sensing range from 0.08m to 12m and a robust IP67 rating for dust and water protection. With a visible red laser light source and high shock resistance, it's perfect for object detection in manufacturing, material handling, and safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor GL6L-P0211S04 | IP67 Rated | 0.08m to 12m Sensing Range | PNP Output | by SICK
Brand: SICK
SKU: 1149552
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Laser sensor, Industrial object sensor, SICK GL6L sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA without load
- Output type: 1 PNP digital output with light/dark switching
- Response time: ≤ 625 µs
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 0.5 mm
- Laser class: 1
- Wavelength: 680 nm
- Pulse duration: 2 µs
- Maximum pulse power: ≤ 11.9 mW
- Average service life: 100,000 hours at 25 °C
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensing principle
- Sensing range from 0.08 m to 12 m with recommended best performance up to 4.2 m
- Visible red laser light source with 680 nm wavelength
- Point-shaped light spot with 3.5 mm diameter at 1 m distance
- Polarisation filter included to reduce interference
- LED indicators for power and object detection status
- Robust plastic ABS housing with IP67 rating for dust and water protection
- Operating temperature range from -20 °C to +50 °C
- High shock and vibration resistance
- Reverse polarity, overcurrent, and short-circuit protected output
- Light/dark switching mode with PNP output
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and laser safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Safety and presence detection in manufacturing
- Packaging and sorting systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Long service life of 100,000 hours minimizes waste and replacement frequency
- Robust IP67 housing extends product lifespan in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GL6L-P0211S04 Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety detection applications.
