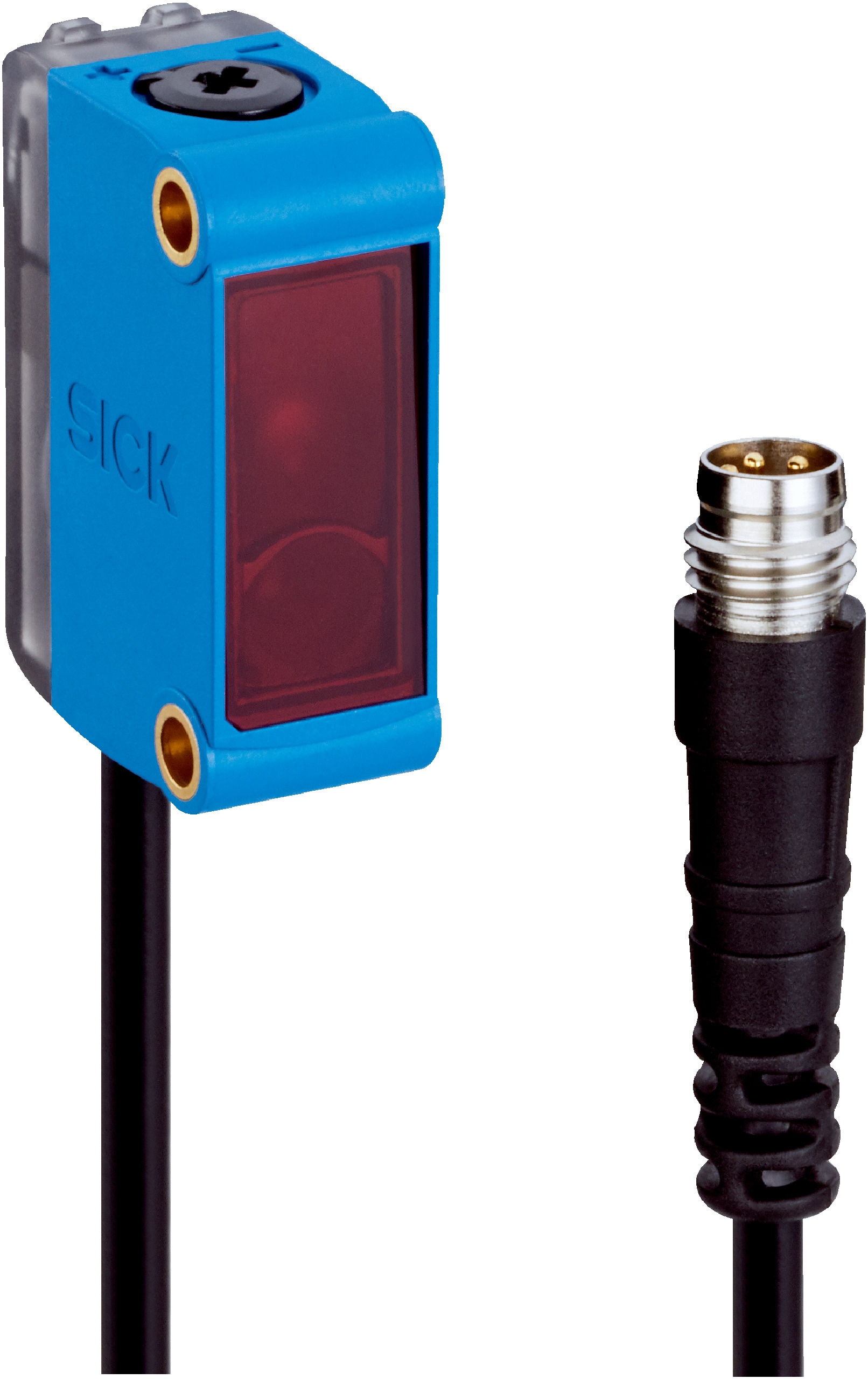

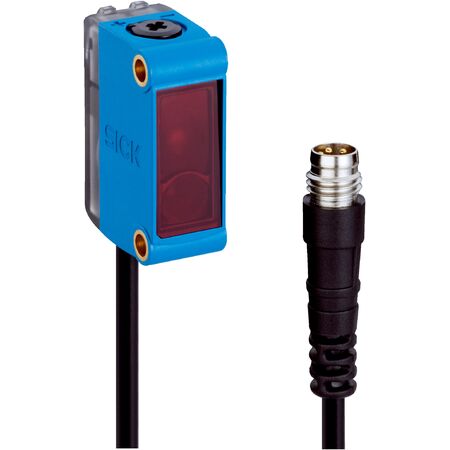

Photoelectric Sensor GL6L-P6212 | 0.08m to 12m Sensing Range | IP67 Rated | by SICK
The GL6L-P6212 Photoelectric Sensor is designed for precise object detection with a sensing range of 0.08m to 12m. Utilizing a visible red laser light source at 680 nm, it ensures reliable performance in industrial automation and material handling applications. With an IP67 rated housing, this sensor is built to withstand harsh environments, making it ideal for manufacturing processes and safety monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor GL6L-P6212 | 0.08m to 12m Sensing Range | IP67 Rated | by SICK
Brand: SICK
SKU: 1115574
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Laser sensor, Object detection sensor
Technical Specifications
- Sensing range: 0.08 m to 12 m
- Light source: Visible red laser, 680 nm wavelength
- Laser class: 1
- Pulse duration: 2 µs
- Maximum pulse power: ≤ 11.9 mW
- Average service life: 100,000 hours at 25°C
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA at 24 V
- Output type: 1 PNP digital output, light/dark switching
- Response time: ≤ 625 µs
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -20°C to +50°C
- Storage temperature: -40°C to +70°C
- Housing material: Plastic ABS
- Connection: Cable with M8 male connector, 4-pin, 336 mm
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensing principle
- Sensing range from 0.08 m to 12 m
- Visible red laser light source with 680 nm wavelength
- Polarisation filter for improved detection
- LED indicators for power and object detection status
- Robust IP67 rated housing for harsh environments
- High switching frequency up to 1000 Hz
- Reverse polarity, overcurrent, and short-circuit protected outputs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Safety and monitoring in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GL6L-P6212 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
