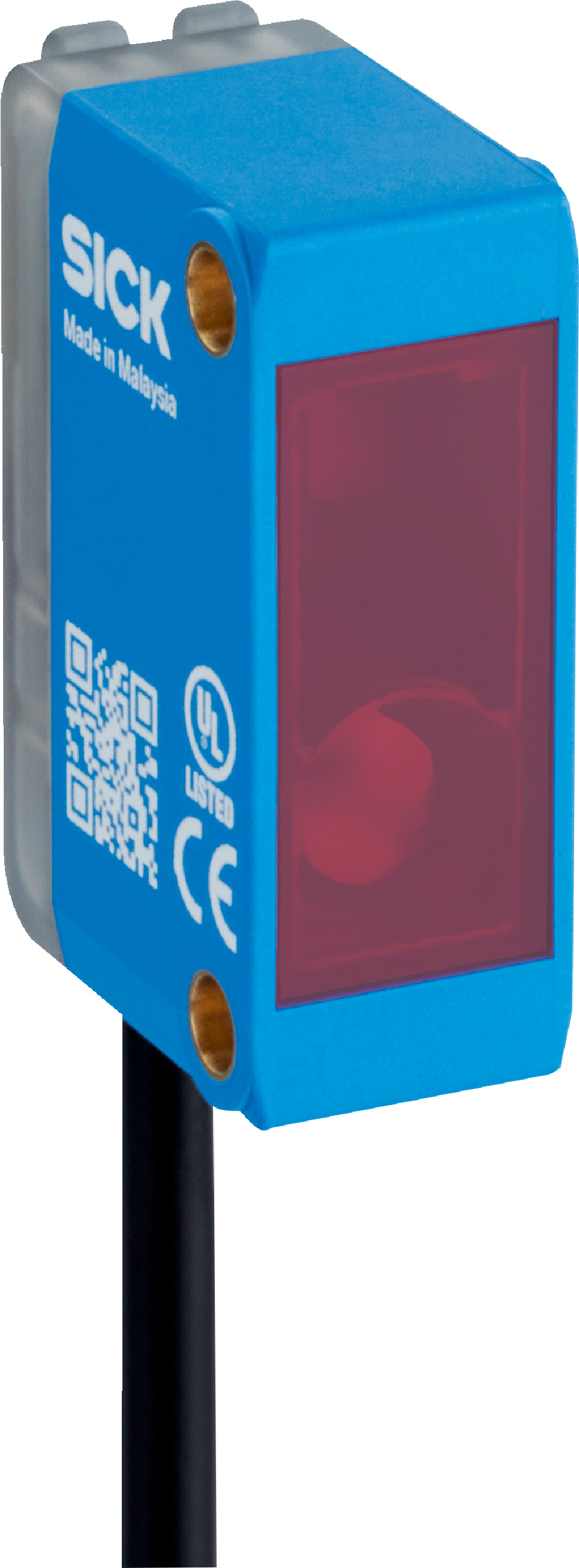

Photoelectric Sensor GLD6SP-1GA121AEZZZ | IP67 Rated | Dual Lens System | 0.03m to 6m Sensing Range | by SICK
The GLD6SP-1GA121AEZZZ Photoelectric Sensor is designed for industrial automation, featuring a dual lens system and an impressive sensing range of 0.03m to 6m. With an IP67 rating for dust and water protection, this sensor operates efficiently in harsh environments, making it ideal for manufacturing process control and safety detection in machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor GLD6SP-1GA121AEZZZ | IP67 Rated | Dual Lens System | 0.03m to 6m Sensing Range | by SICK
Brand: SICK
SKU: 1139396
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, SICK GLD6SP sensor, Industrial object sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA at 24 V
- Output type: PNP, light switching
- Output current max: ≤ 100 mA
- Response time: ≤ 625 µs
- Switching frequency: 1,000 Hz
- Enclosure rating: IP67
- Operating temperature: -30 °C to +55 °C
- LED wavelength: 640 nm
- LED service life: 100,000 hours at 25 °C
- Housing material: Plastic ABS
- Cable: 3-wire, 2 m length, PVC
- Dimensions (H x L x W): 31.6mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system
- Sensing range from 0.03 m to 6 m
- PinPoint LED visible red light with 640 nm wavelength
- Polarisation filter included
- LED indicators for power and object detection status
- Operating temperature range from -30 °C to +55 °C
- IP67 rated enclosure for dust and water protection
- Short response time of ≤ 625 µs and switching frequency up to 1,000 Hz
- Reverse polarity, overcurrent, and short-circuit protected outputs
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and presence detection in machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces need for frequent replacements
- Long LED service life of 100,000 hours minimizes waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK GLD6SP-1GA121AEZZZ Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
