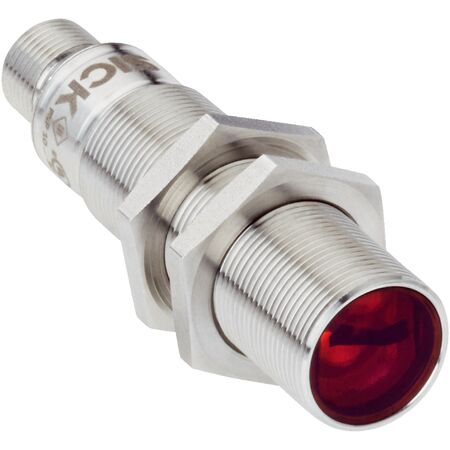

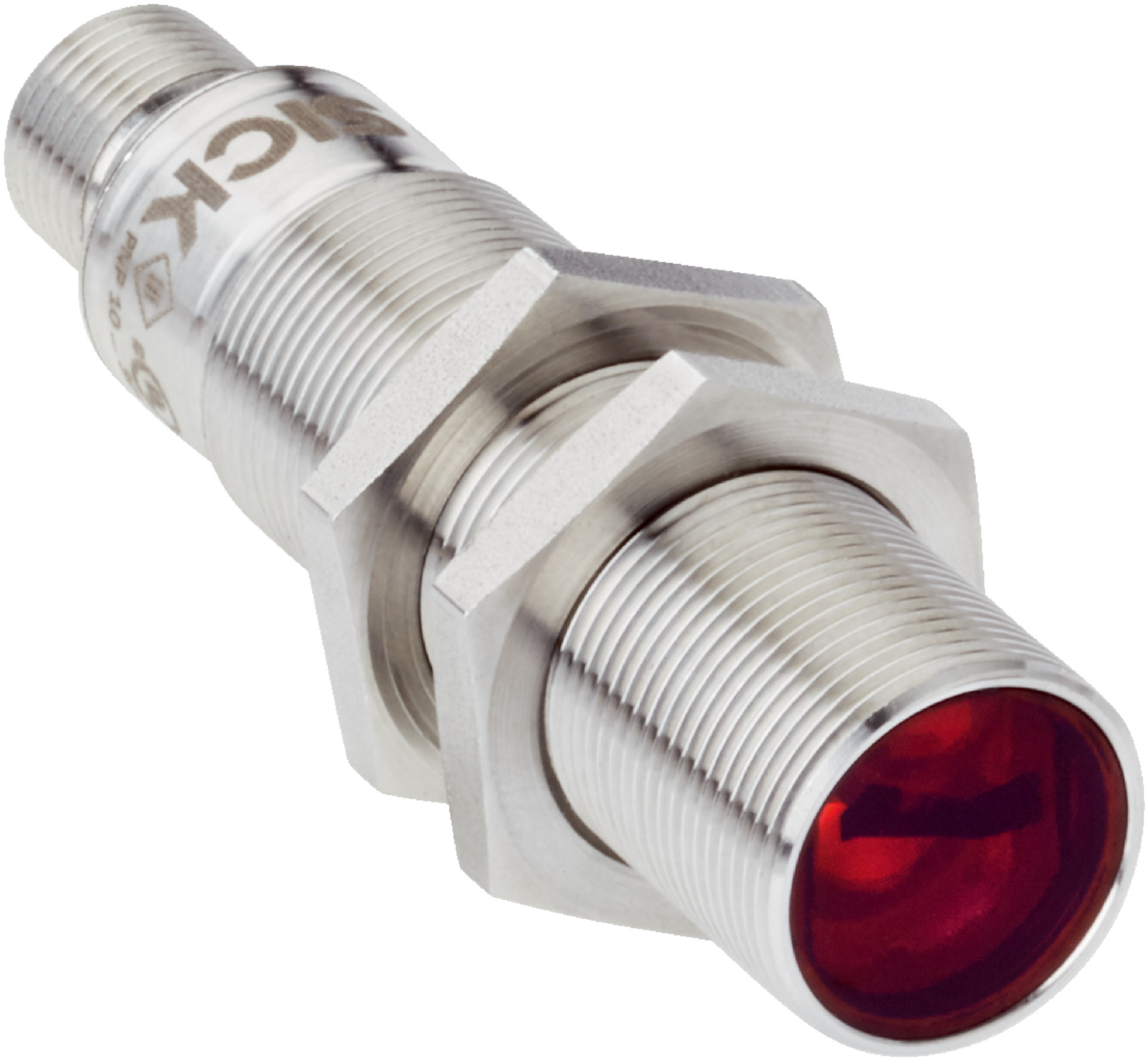

Photoelectric Sensor GRL18-P2431V | IP67, IP68, IP69K Rated | Fast Response Time | Stainless Steel Housing | by SICK
The GRL18-P2431V Photoelectric Sensor is designed for industrial automation, featuring a robust stainless steel housing and high protection ratings of IP67, IP68, and IP69K. With a fast response time under 500 µs and a sensing range from 0.06 m to 6 m, it's perfect for object detection in hygienic and washdown zones, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor GRL18-P2431V | IP67, IP68, IP69K Rated | Fast Response Time | Stainless Steel Housing | by SICK
Brand: SICK
SKU: 1085716
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Optical sensor, Industrial photo sensor, SICK sensor GRL18
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 500 µs
- Switching frequency: 1000 Hz
- Connection type: Male M12, 4-pin connector
- Housing material: Stainless steel V4A (1.4404, 316L)
- Optics material: Plastic PMMA
- Protection class: III
- Enclosure rating: IP67, IP68, IP69K
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -30 °C to +75 °C
- Weight: 65 g
- Wave length: 650 nm
- Light spot size at 7 m: Ø 175 mm
- Dimensions (H x L x W): 18mm x 73.5mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED light source
- Axial optical axis with sensing range from 0.06 m to 6 m
- Complementary PNP switching output with light/dark switching mode
- Robust metal housing made of stainless steel V4A (1.4404, 316L)
- High protection rating: IP67, IP68, and IP69K suitable for harsh environments
- Fast response time under 500 µs and switching frequency up to 1000 Hz
- Equipped with green and yellow LED indicators for power and object detection status
- Includes fastening nuts for easy installation
- Certified for electromagnetic compatibility (EN 60947-5-2) and photobiological safety
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor equipment to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones
- Machine safety and process control
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient LED light source minimizes power consumption
- High ingress protection extends product lifespan in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GRL18-P2431V Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
