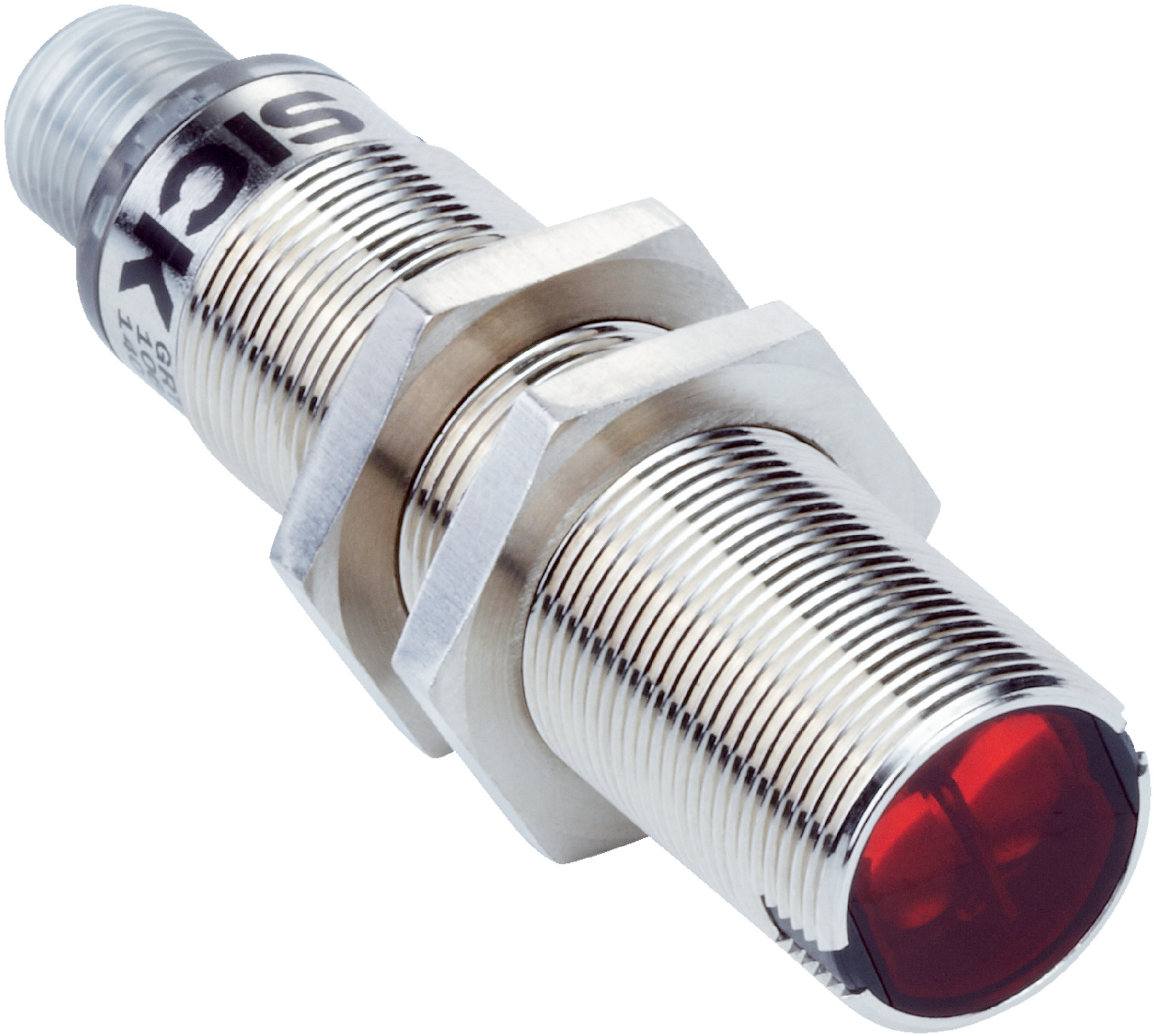

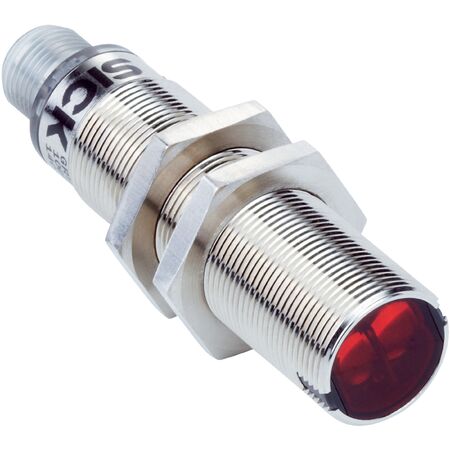

Photoelectric Sensor GRL18-P2452 | Retro-Reflective | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Sensor GRL18-P2452 is designed for industrial automation, featuring a dual lens system for precise object detection. With a sensing range of 0.06 m to 6 m and a fast response time under 500 µs, this robust sensor is perfect for manufacturing process control and safety systems. Its IP67 rating ensures durability in harsh environments, making it an ideal choice for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor GRL18-P2452 | Retro-Reflective | IP67 Rated | Fast Response Time | by SICK
Brand: SICK
SKU: 1076983
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Optical sensor, Industrial photo sensor, SICK sensor GRL18-P2452
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0.06 m to 6 m (max 7.2 m)
- Light source: PinPoint LED, visible red light at 650 nm wavelength
- Adjustment: Potentiometer
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary output function
- Switching mode: Light/dark switching
- Response time: < 500 µs
- Switching frequency: 1000 Hz
- Connection type: Male M12 connector, 4-pin
- Housing material: Metal (nickel-plated brass) and ABS
- Optics material: Plastic (PMMA)
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Circuit protection: Types A, B, D
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 18mm x 74mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED light source
- Sensing range from 0.06 m to 6 m, maximum 7.2 m
- Potentiometer adjustment for sensitivity
- LED indicators for power and object detection status
- Robust metal housing with nickel-plated brass and ABS
- IP67 rated enclosure for dust and water protection
- Polarisation filter to reduce false triggering
- Fast response time under 500 µs and switching frequency up to 1000 Hz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and security systems requiring precise sensing
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable construction minimizes waste and replacement frequency
- Complies with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GRL18-P2452 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
