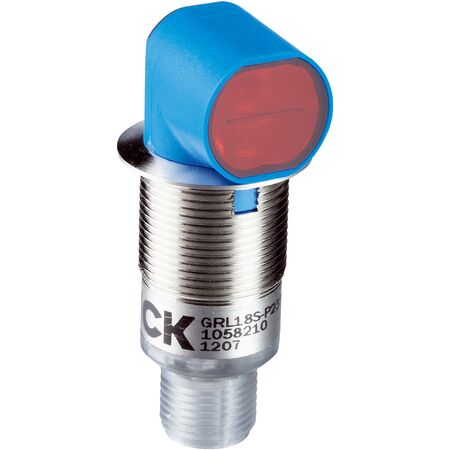

Photoelectric Sensor GRL18S-F233W | IP67 Rated | Fast Response Time | PNP Output | by SICK
The GRL18S-F233W Photoelectric Sensor is designed for industrial automation, featuring a robust IP67 rated enclosure and a fast response time of under 500 µs. With a sensing range of 0.06 m to 6 m and a PNP switching output, it's perfect for object detection in material handling and conveyor systems, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor GRL18S-F233W | IP67 Rated | Fast Response Time | PNP Output | by SICK
Brand: SICK
SKU: 1058209
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, M18 photoelectric sensor, Industrial object sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, dark switching
- Output current max: ≤ 100 mA
- Response time: < 500 µs
- Switching frequency: 1,000 Hz
- Enclosure rating: IP67
- Housing material: Metal, nickel-plated brass and ABS
- Optics material: Plastic, PMMA
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Connection type: Connector M12, 3-pin
- EMC compliance: EN 60947-5-2
- Photobiological safety certified (DIN EN 62471)
- Dimensions (H x L x W): 18mm x 38mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED at 650 nm wavelength
- Sensing range from 0.06 m to 6 m, maximum 7.2 m
- Radial, fully flush optical axis with cylindrical M18 x 1 housing
- IP67 rated enclosure for dust and water protection
- Metal nickel-plated brass and ABS housing with plastic PMMA optics
- Fast response time under 500 µs and switching frequency of 1,000 Hz
- PNP switching output with dark switching mode
- Connector M12, 3-pin connection type
- Operating temperature range from -25 °C to +55 °C
- LED indicators for power and object detection status
- Polarisation filter included for improved detection reliability
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Safety and presence detection in manufacturing
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life and reduces waste
- Complies with China RoHS and ECOLAB standards for environmental safety
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GRL18S-F233W Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
