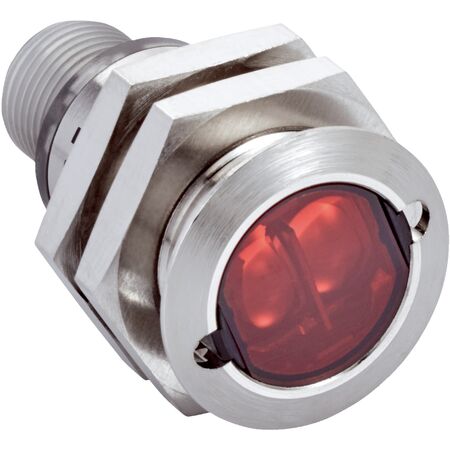

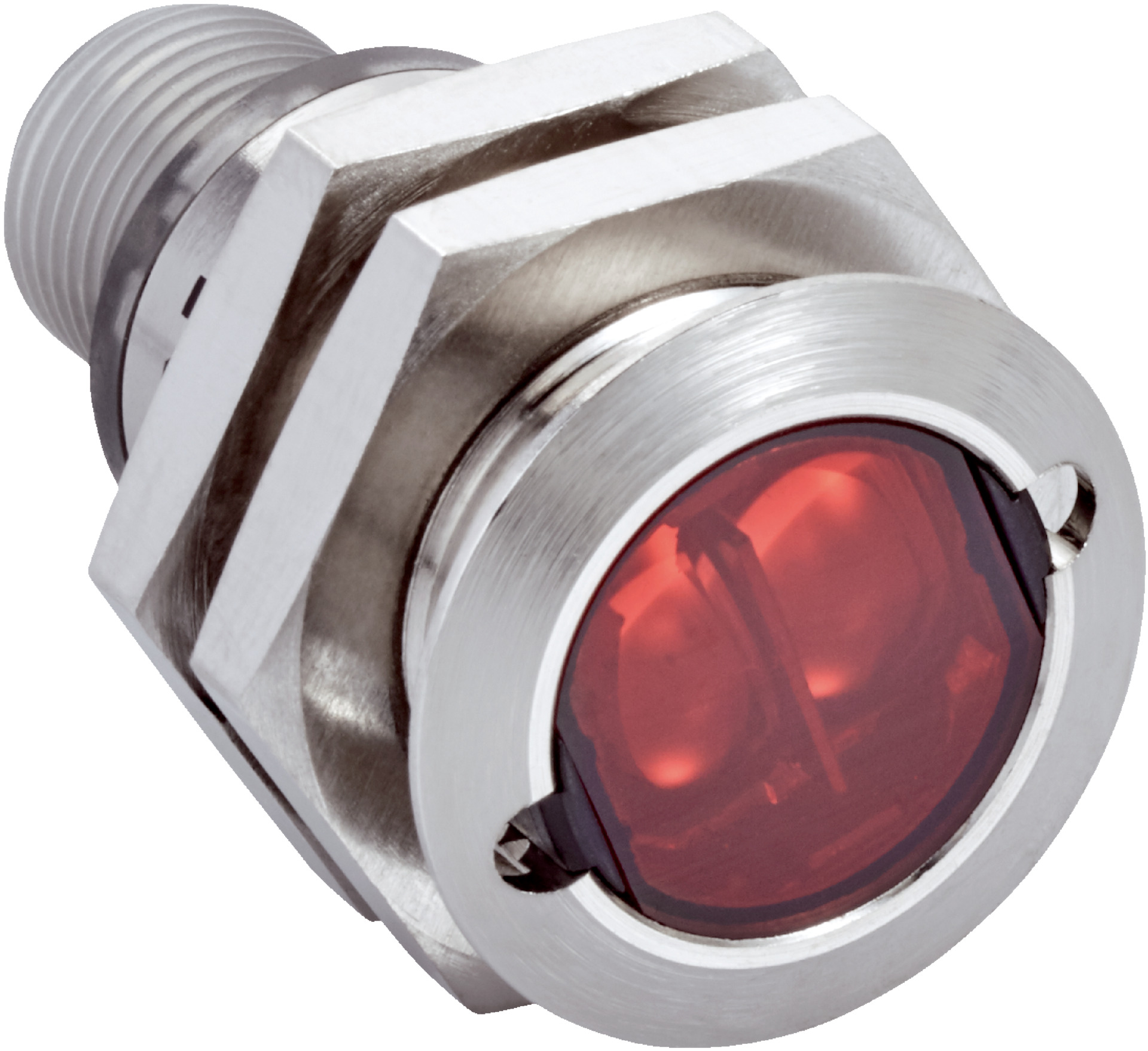

Photoelectric Sensor GRL18S-F235Y | IP67 Rated | Fast Response Time | PNP Output | by SICK
The Photoelectric Sensor GRL18S-F235Y is designed for industrial automation, featuring an IP67 rated enclosure for dust and water protection. With a fast response time of under 500 µs and a sensing range of 0.06 m to 6 m, this sensor is perfect for object detection and manufacturing process control. Built with a durable metal housing, it ensures longevity and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor GRL18S-F235Y | IP67 Rated | Fast Response Time | PNP Output | by SICK
Brand: SICK
SKU: 1064159
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Industrial object sensor, SICK GRL18 sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, dark switching
- Output current max: ≤ 100 mA
- Response time: < 500 µs
- Switching frequency: 1,000 Hz
- Enclosure rating: IP67
- Housing material: Metal (nickel-plated brass) and ABS
- Optics material: Plastic, PMMA
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Connection type: Connector M12, 3-pin
- EMC compliance: EN 60947-5-2
- Protection class: III
- Polarisation filter: Yes
- Dimensions (H x L x W): 18mm x 38mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED at 650 nm wavelength
- Axial, fully flush optical axis
- Sensing range from 0.06 m to 6 m
- Metal housing with nickel-plated brass and ABS for durability
- IP67 rated enclosure for dust and water protection
- Fast response time under 500 µs and switching frequency of 1,000 Hz
- PNP switching output with dark switching mode
- Connector M12, 3-pin connection type
- Polarisation filter included
- Operating temperature range from -25 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
- Complies with China RoHS and ECOLAB standards for environmental safety
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GRL18S-F235Y Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
