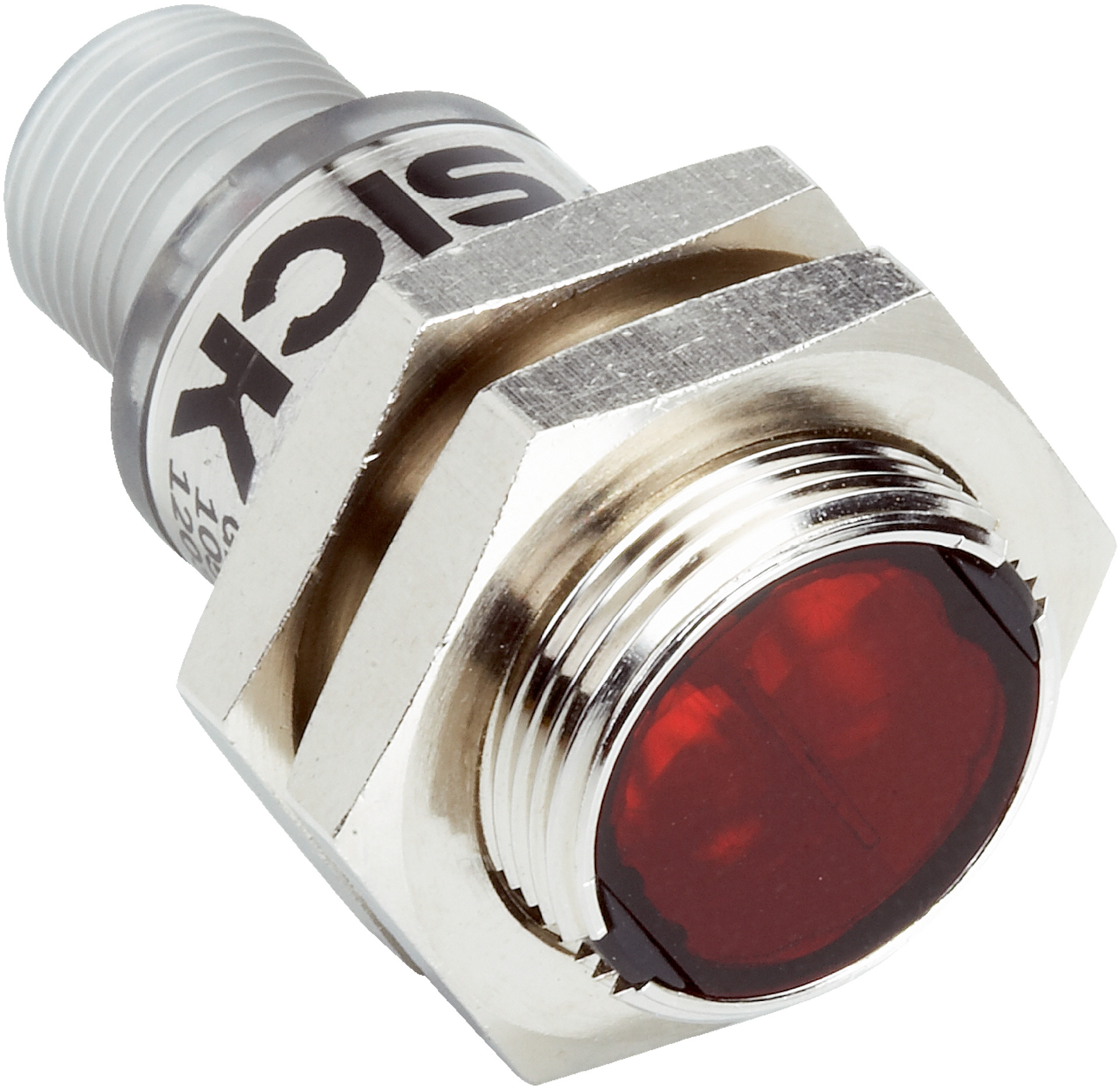

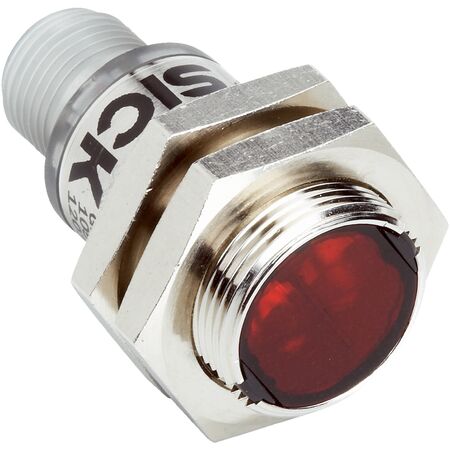

Photoelectric Sensor GRL18S-P2351 | Retro-Reflective | IP67 Rated | Dual Lens System | by SICK
The Photoelectric Sensor GRL18S-P2351 is designed for industrial automation, featuring a dual lens system for enhanced object detection. With a sensing range of 0.06 m to 6 m and a robust IP67-rated housing, this sensor is perfect for manufacturing process control and safety systems. Its high switching frequency of 1,000 Hz and quick response time under 500 µs ensure reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor GRL18S-P2351 | Retro-Reflective | IP67 Rated | Dual Lens System | by SICK
Brand: SICK
SKU: 1064158
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Industrial object sensor, SICK sensor GRL18S
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0.06 m to 6 m
- Light source: PinPoint LED, 650 nm wavelength
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, max output current ≤ 100 mA
- Response time: < 500 µs
- Switching frequency: 1,000 Hz
- Connection type: Connector M12, 3-pin
- Protection class: III
- Enclosure rating: IP67
- Housing material: Metal, nickel-plated brass and ABS
- Optics material: Plastic, PMMA
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 18mm x 38mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED light source
- Sensing range from 0.06 m to 6 m
- Axial optical axis with cylindrical housing design
- M18 x 1 thread diameter housing
- LED indicators for power and object presence status
- High switching frequency of 1,000 Hz and response time under 500 µs
- Robust metal housing with nickel-plated brass and ABS, IP67 rated
- Connector M12, 3-pin connection type
- Polarisation filter included for improved detection
- Wide ambient operating temperature range from -25 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems
- Material handling and packaging
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Long service life minimizes waste and replacement frequency
- Robust design reduces environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GRL18S-P2351 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
