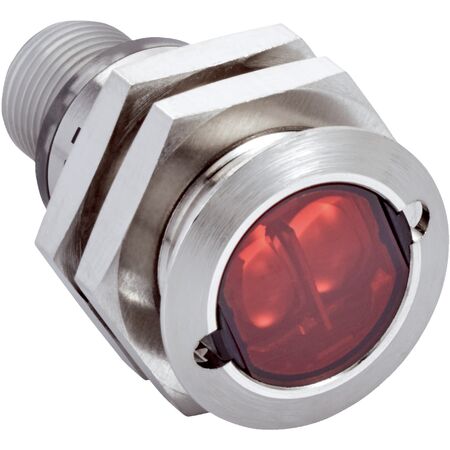

Photoelectric Sensor GRL18SG-P233Z | IP67 Rated | Dual Lens System | 1000 Hz Switching Frequency | by SICK
The GRL18SG-P233Z Photoelectric Sensor is designed for industrial automation, featuring a dual lens system and high switching frequency of 1000 Hz. Ideal for detecting transparent objects in manufacturing and conveyor systems, this sensor offers reliable performance with an IP67 rated enclosure for dust and water protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor GRL18SG-P233Z | IP67 Rated | Dual Lens System | 1000 Hz Switching Frequency | by SICK
Brand: SICK
SKU: 1068113
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Transparent object sensor, M18 photoelectric sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, light switching mode
- Output current max: ≤ 100 mA
- Response time: < 500 µs
- Switching frequency: 1,000 Hz
- Ripple: < 5 V pp
- Protection class: III
- Polarisation filter included
- Housing material: Metal (nickel-plated brass) and ABS
- Optics material: Plastic (PMMA)
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Circuit protection types A, B, D
- Connector type: M12, 3-pin
- Dimensions (H x L x W): 18mm x 38mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system
- Visible red light with PinPoint LED at 650 nm wavelength
- Axial, fully flush optical axis
- Potentiometer adjustment with 270° rotation
- LED indicators for power and object detection status
- Detects transparent objects
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Metal housing with nickel-plated brass and ABS
- Connector M12, 3-pin connection
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and sensor alignment.
Applications
- Industrial automation for object detection
- Detecting transparent objects in manufacturing
- Use in conveyor systems and packaging lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GRL18SG-P233Z Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and transparent object detection applications.
