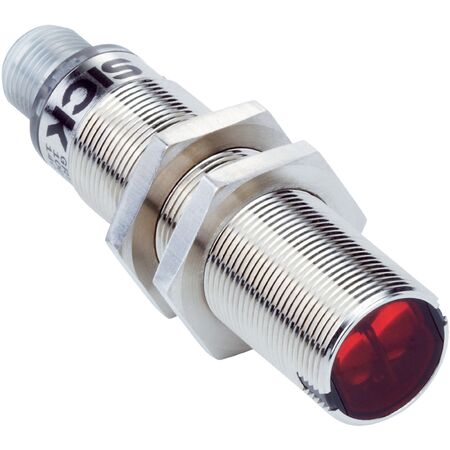

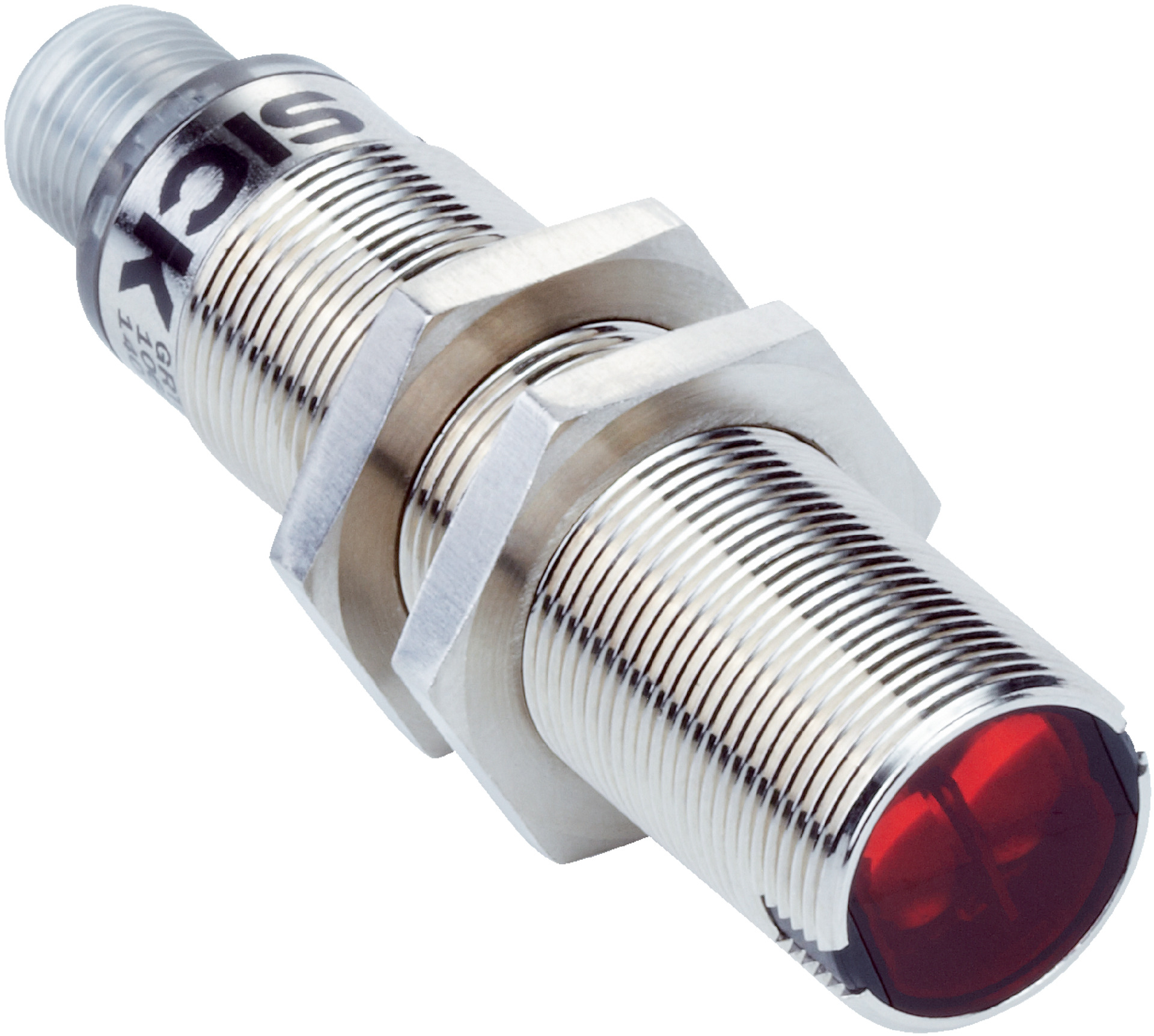

Photoelectric Sensor GRSE18-N2422 | Through-Beam | IP67 Rated | 15m Sensing Range | by SICK
The GRSE18-N2422 Photoelectric Sensor is a through-beam sensor designed for industrial automation, featuring a sensing range of up to 15 meters and an IP67 rated enclosure for dust and water protection. With an infrared LED light source and a high switching frequency of 1000 Hz, it’s perfect for object detection in material handling, packaging, and safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor GRSE18-N2422 | Through-Beam | IP67 Rated | 15m Sensing Range | by SICK
Brand: SICK
SKU: 1068335
Alternatively Known As: Through-beam photoelectric sensor, Infrared photoelectric sensor, M18 photoelectric sensor, Industrial object sensor
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 15 m
- Type of light: Infrared light (850 nm wavelength)
- Light source: LED
- Light spot size at 10 m: Ø 420 mm
- Adjustment: Potentiometer
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN, complementary
- Switching mode: Light/dark switching
- Response time: < 500 µs
- Switching frequency: 1000 Hz
- Connection type: Male M12, 4-pin connector
- Circuit protection: Types A, B, D
- Protection class: III
- Housing material: Metal, nickel-plated brass and ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 18mm x 74mm x 18mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with infrared LED light source
- Sensing range up to 15 meters
- Cylindrical metal housing with M18 x 1 thread
- Potentiometer adjustment for sensitivity
- LED indicators for power and object detection status
- High switching frequency of 1000 Hz
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Safety and security systems
- Packaging and manufacturing processes
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
- Complies with China RoHS and ECOLAB certifications ensuring reduced environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GRSE18-N2422 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
