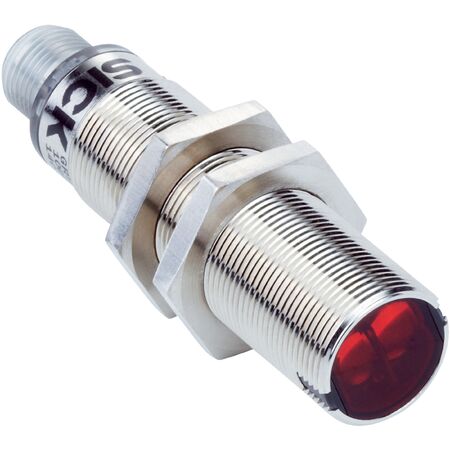

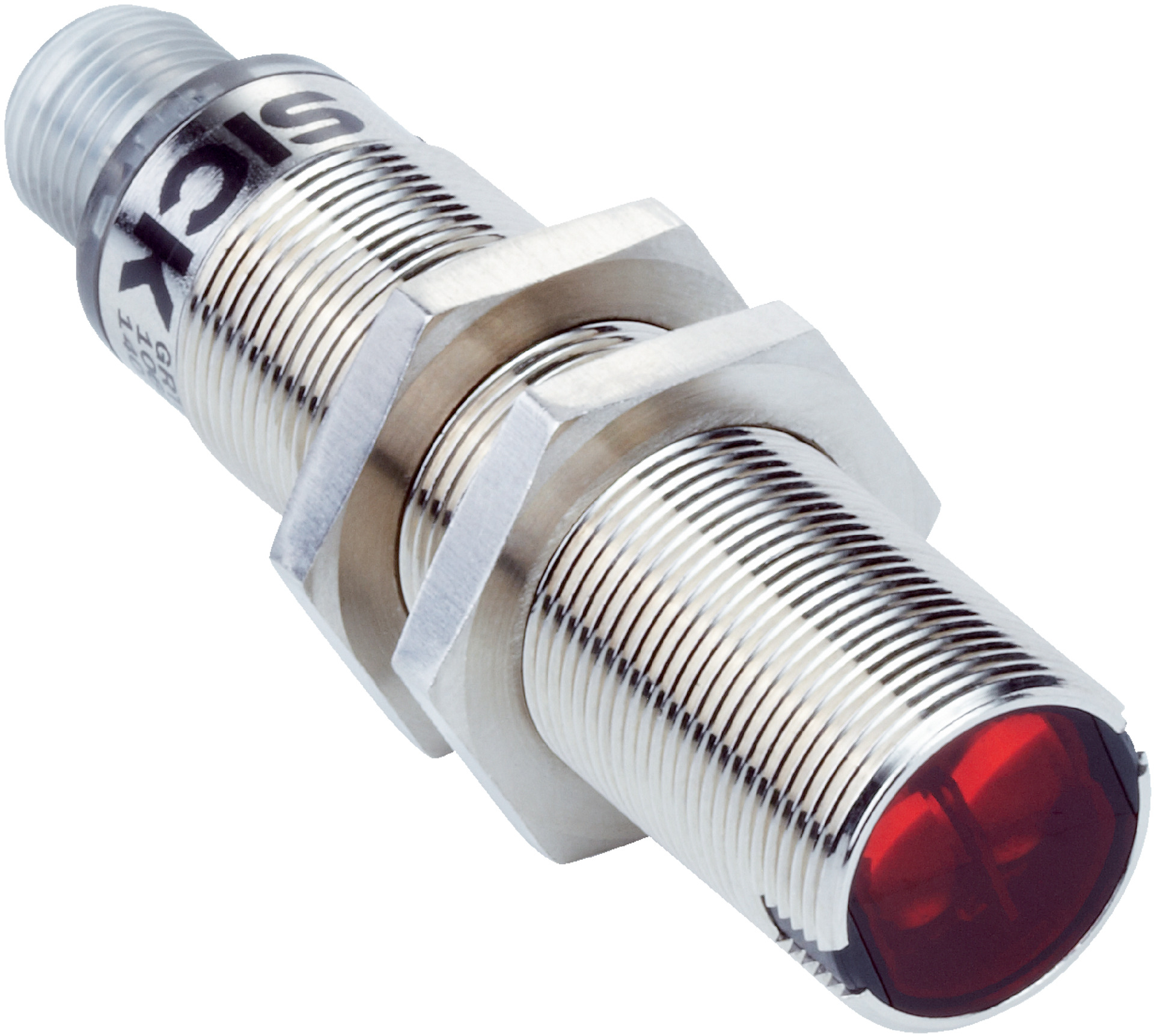

Photoelectric Sensor GRSE18-N2442 | Through-Beam Technology | IP67 Rated | 15m Sensing Range | by SICK
The GRSE18-N2442 Photoelectric Sensor features advanced through-beam technology with a sensing range of up to 15 meters, making it ideal for industrial automation and object detection. With a robust IP67 rated enclosure and a visible red light source, this sensor ensures reliable performance in various applications, including manufacturing process control and safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor GRSE18-N2442 | Through-Beam Technology | IP67 Rated | 15m Sensing Range | by SICK
Brand: SICK
SKU: 1067985
Alternatively Known As: Through-beam photoelectric sensor, M18 photoelectric sensor, Industrial object sensor, SICK photoelectric sensor
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 15 m
- Type of light: Visible red light (650 nm wavelength)
- Light source: PinPoint LED
- Light spot size at 10 m: Ø 250 mm
- Adjustment: Potentiometer
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN, complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 500 µs
- Switching frequency: 1000 Hz
- Connection type: Male connector M12, 4-pin
- Circuit protection: Types A, B, D
- Protection class: III
- Housing material: Metal, nickel-plated brass and ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Electromagnetic compatibility: EN 60947-5-2
- Ambient operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 18mm x 74mm x 18mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 15 meters
- Cylindrical metal housing with M18 x 1 thread
- Potentiometer adjustment for sensitivity
- LED indicators for power and object detection status
- High switching frequency of 1000 Hz
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper alignment and electrical connections according to safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and security systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK GRSE18-N2442 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
