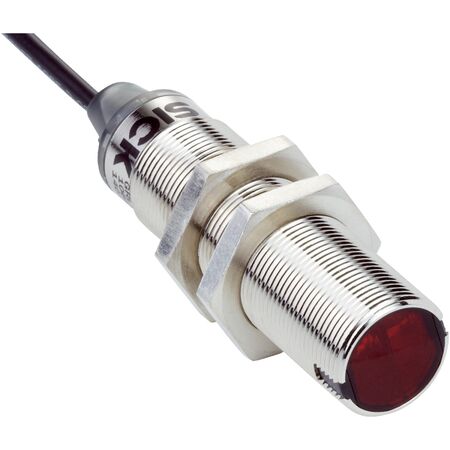

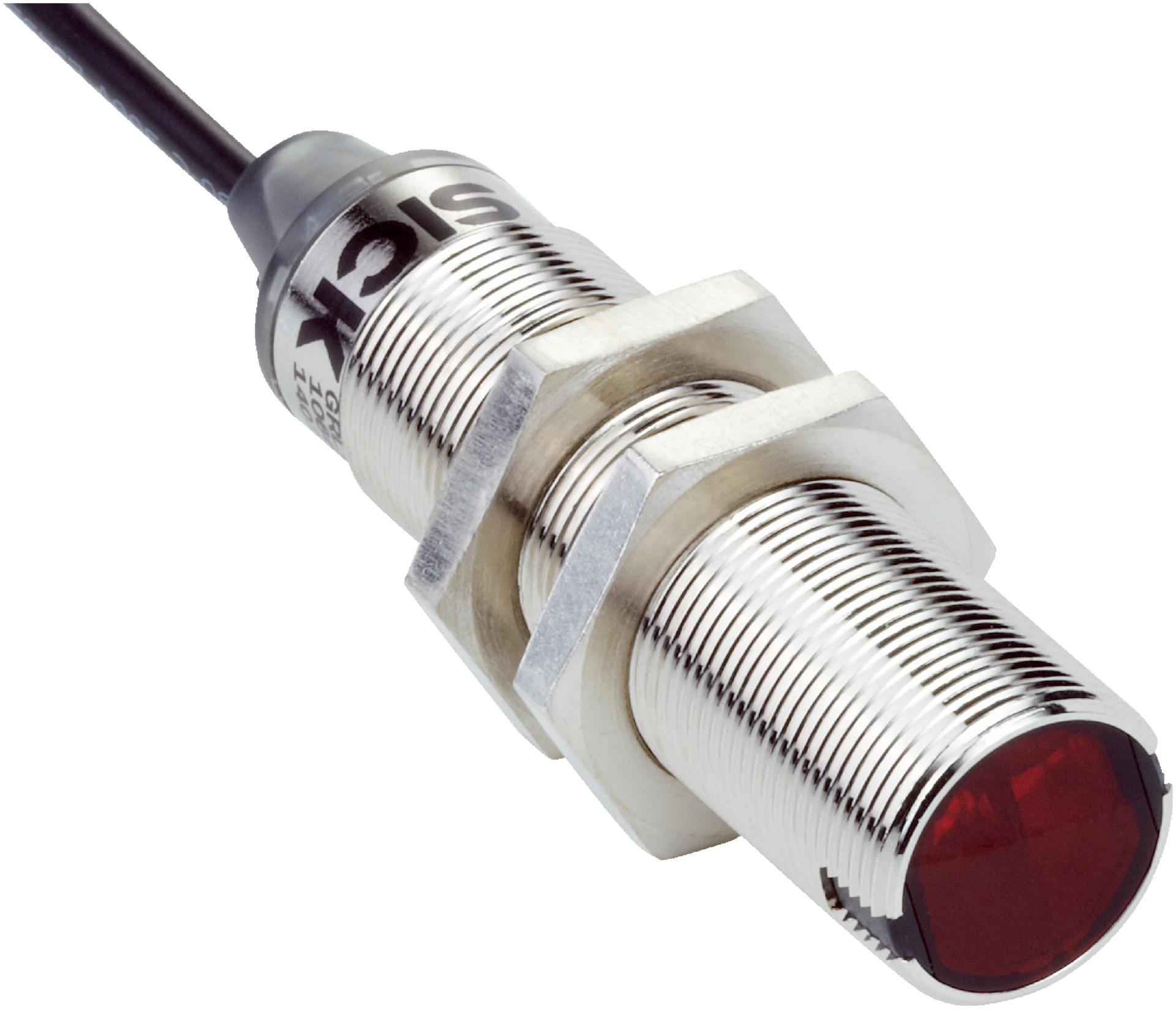

Photoelectric Sensor GRSE18-P1122 | Through-Beam Sensing | IP67 Rated | High Switching Frequency | by SICK
The GRSE18-P1122 Photoelectric Sensor features a through-beam sensing principle and a robust cylindrical design, making it ideal for industrial automation and object detection. With an impressive sensing range of up to 15 meters and a high switching frequency of 1000 Hz, this sensor ensures reliable performance in material handling and safety systems. Its IP67 rating provides excellent protection against dust and water, ensuring durability in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor GRSE18-P1122 | Through-Beam Sensing | IP67 Rated | High Switching Frequency | by SICK
Brand: SICK
SKU: 1068333
Alternatively Known As: Through-beam photoelectric sensor, Infrared photoelectric sensor, M18 photoelectric sensor, Industrial object sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary function
- Switching mode: Light/dark switching
- Response time: less than 500 µs
- Switching frequency: 1000 Hz
- Connection type: 4-wire cable, 2 meters, PVC material
- Circuit protection: A, B, D types
- Protection class: III
- Optics material: Plastic, PMMA
- Electromagnetic compatibility: EN 60947-5-2
- Ambient operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Enclosure rating: IP67
- Dimensions (H x L x W): 18mm x 72mm x 18mm
- Weight: 0.15 kg
Key Features
- Through-beam photoelectric sensing principle
- Cylindrical housing design with M18 x 1 thread diameter
- Infrared LED light source with 850 nm wavelength
- Sensing range up to 15 meters
- Potentiometer adjustment for sensitivity
- LED indicators for power and object detection status
- High switching frequency of 1000 Hz
- Robust metal housing with nickel-plated brass and ABS
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring, alignment, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Safety and security systems
- Packaging and manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable construction minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GRSE18-P1122 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
