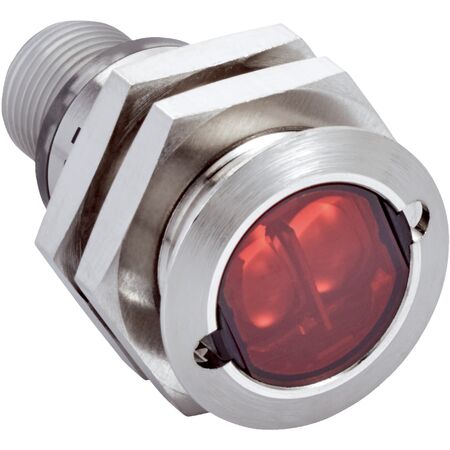

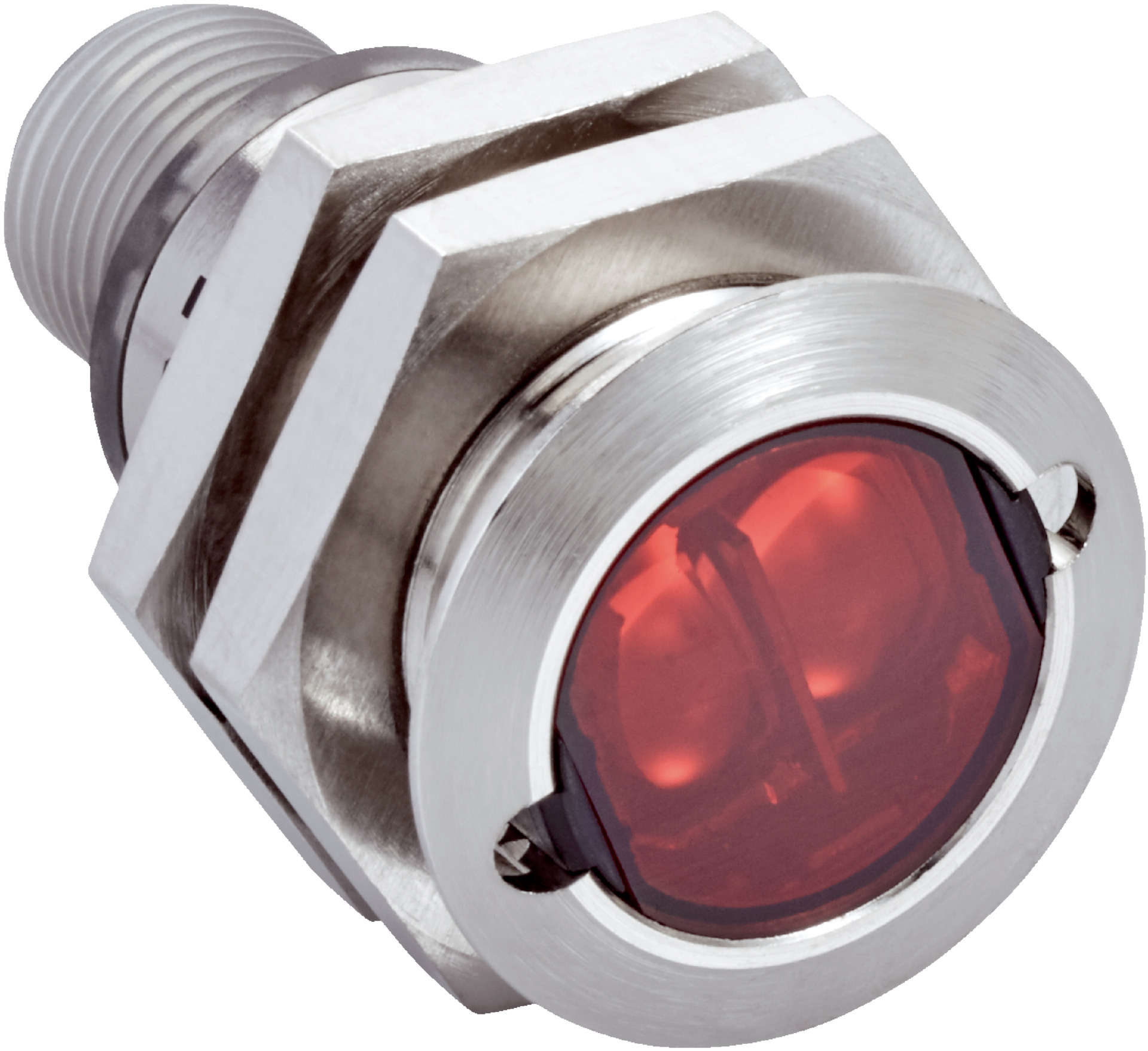

Photoelectric Sensor GRSE18S-P233Y | Through-Beam | IP67 Rated | Fast Response Time | by SICK
The GRSE18S-P233Y Photoelectric Sensor is a through-beam sensor designed for industrial automation, featuring a sensing range of up to 10 meters and a fast response time of under 500 µs. With an IP67 rated enclosure for dust and water protection, this sensor is perfect for manufacturing process control and safety monitoring in production lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor GRSE18S-P233Y | Through-Beam | IP67 Rated | Fast Response Time | by SICK
Brand: SICK
SKU: 1062420
Alternatively Known As: Through-beam photoelectric sensor, SICK photoelectric sensor, GRSE18S sensor, industrial object sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, light switching mode
- Output current max: ≤ 100 mA
- Response time: < 500 µs
- Switching frequency: 1,000 Hz
- Protection class: III
- Housing material: Metal (nickel-plated brass) and ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Electromagnetic compatibility: EN 60947-5-2
- Connection type: Connector M12, 3-pin
- Dimensions (H x L x W): 18mm x 38mm x 18mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Axial, fully flush optical axis
- Sensing range up to 10 meters
- PinPoint LED light source with 650 nm wavelength
- Metal housing with nickel-plated brass and ABS
- IP67 rated enclosure for dust and water protection
- Fast response time under 500 µs
- High switching frequency of 1,000 Hz
- Connector M12, 3-pin connection type
- LED indicators for power and object detection status
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GRSE18S-P233Y Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
