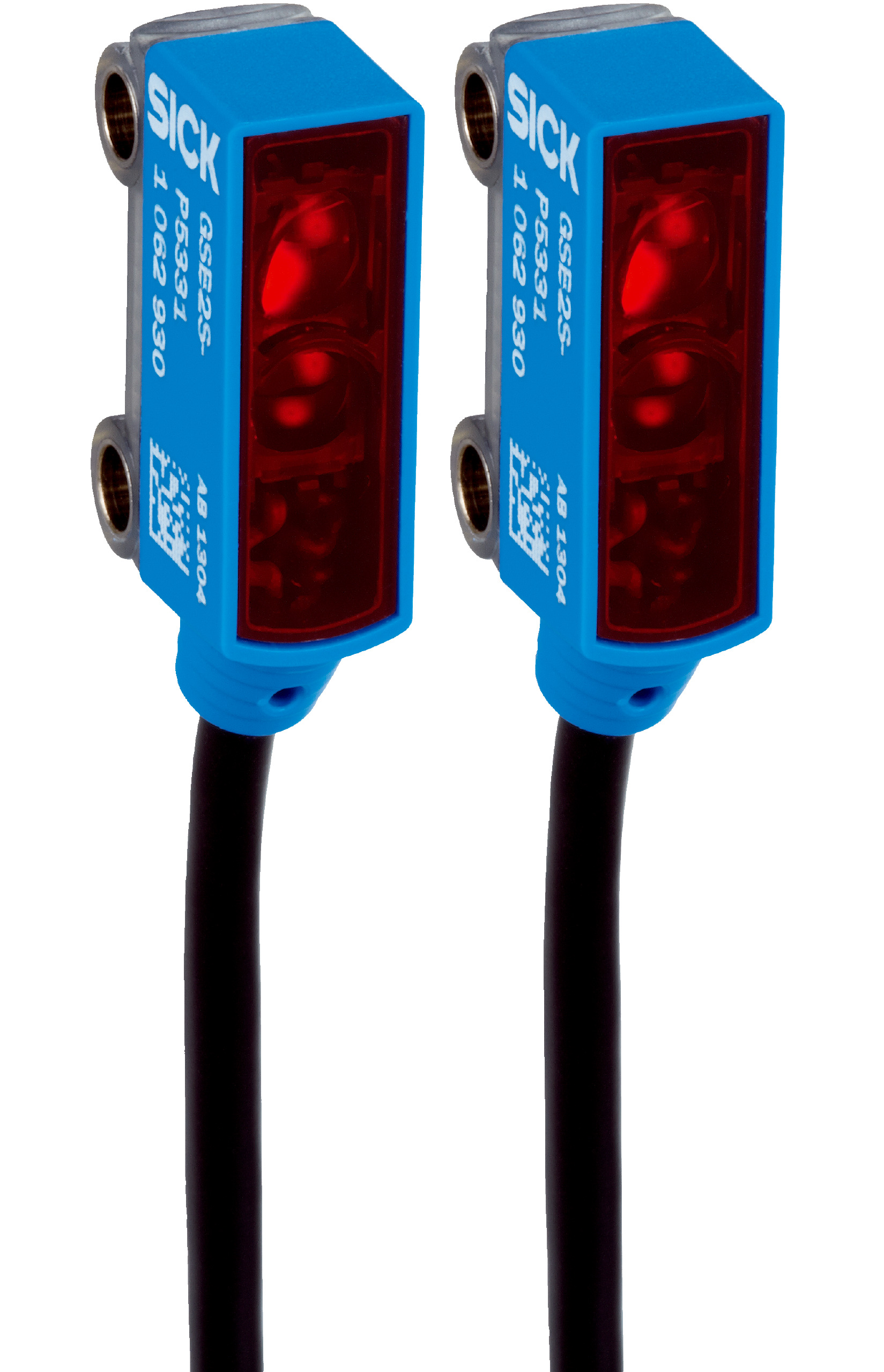

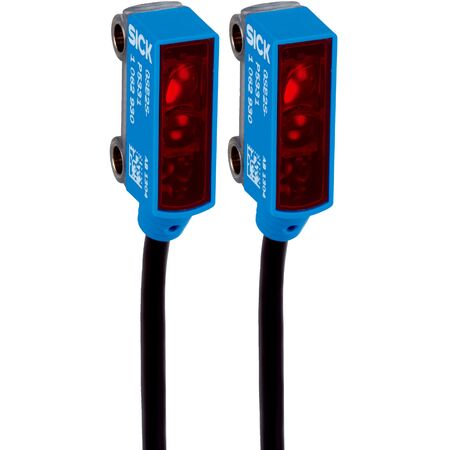

Photoelectric Sensor GSE2S-N0311S11 | Through-Beam | IP67 Rated | Fast Response Time | by SICK
The GSE2S-N0311S11 photoelectric sensor is a through-beam sensor designed for industrial automation and object detection. With a sensing range of up to 1.5 meters and a fast response time of under 0.6 ms, it ensures reliable performance in various applications. Its robust IP67-rated housing and PinPoint LED light source make it ideal for material handling and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor GSE2S-N0311S11 | Through-Beam | IP67 Rated | Fast Response Time | by SICK
Brand: SICK
SKU: 1149695
Alternatively Known As: Photoelectric sensor, Through-beam sensor, Optical sensor, Industrial sensor, Object detection sensor
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 to 1.5 meters
- Light source: PinPoint LED, 640 nm wavelength
- Switching output: NPN, light/dark switching
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Response time: < 0.6 ms
- Switching frequency: 800 Hz
- Connection type: 4-wire cable, 3 m length
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25°C to +50°C
- Storage temperature: -40°C to +75°C
- Dimensions (H x L x W): 22mm x 14mm x 8mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 1.5 meters
- PinPoint LED light source with 640 nm wavelength
- Yellow LED status indicator for object/medium detection
- Robust plastic ABS housing with IP67 rating
- Fast response time under 0.6 ms and switching frequency of 800 Hz
- NPN switching output with light/dark switching mode
- Cable connection with 3 meter PVC cable
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Safety and monitoring in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable design reduces waste and replacement frequency
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK GSE2S-N0311S11 photoelectric sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
