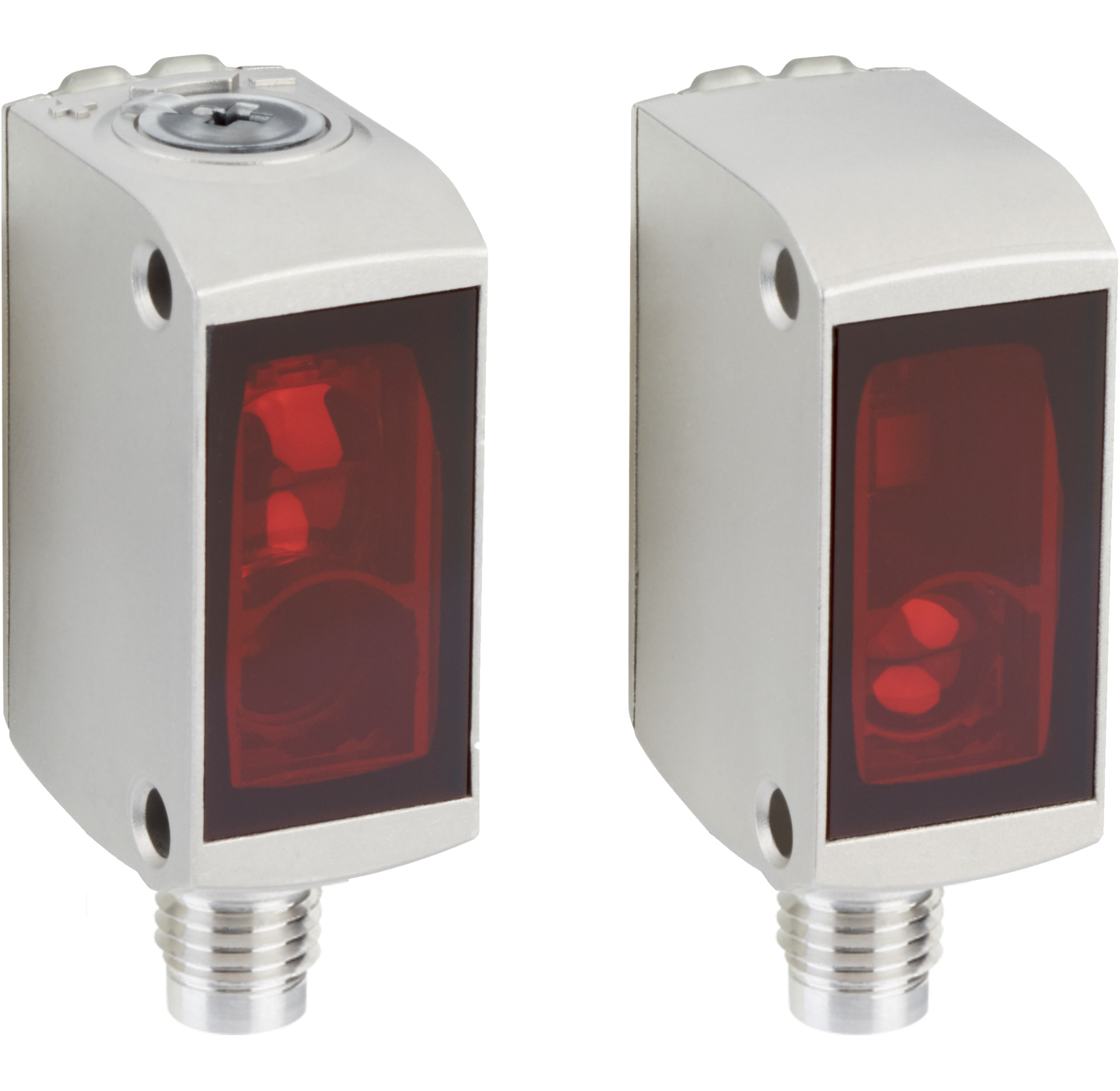

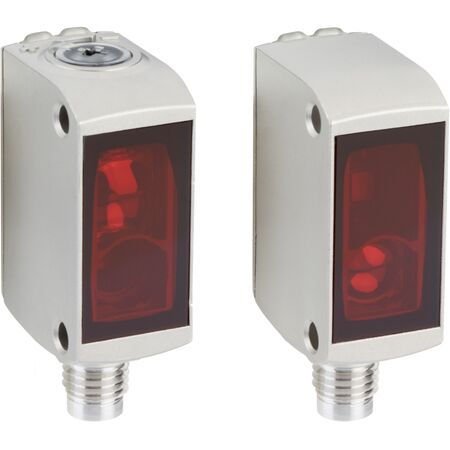

Photoelectric Sensor GSE6-F4411V | Through-Beam Sensing | IP67 & IP69K Rated | Fast Response Time | by SICK
The GSE6-F4411V Photoelectric Sensor features a through-beam sensing principle with a maximum range of 15 meters, making it ideal for industrial automation and hygienic applications. With a durable stainless steel housing and IP67/IP69K ratings, it ensures reliable performance in harsh environments. Experience fast response times under 625 microseconds, perfect for machine safety and process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor GSE6-F4411V | Through-Beam Sensing | IP67 & IP69K Rated | Fast Response Time | by SICK
Brand: SICK
SKU: 1084109
Alternatively Known As: Through-beam photoelectric sensor, SICK photoelectric sensor, GSE6 sensor, industrial photoelectric sensor
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 15 m
- Sensing range: 0 m to 10 m
- Light source: PinPoint LED
- Type of light: Visible red light
- Light spot size at 10 m: Ø 310 mm
- Wavelength: 650 nm
- Adjustment: Potentiometer, 270°
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ±10%
- Current consumption: 30 mA
- Protection class: III
- Digital output type: PNP
- Switching mode: Light/dark switching
- Signal voltage PNP HIGH/LOW: VS- (≤ 3 V) / approx. 0 V
- Output current max: ≤ 100 mA
- Response time: < 625 µs
- Switching frequency: 1,000 Hz
- Output function: Complementary switching output
- Circuit protection: A, B, D
- Housing material: Stainless steel V4A (1.4404, 316L)
- Front screen material: Plastic, PMMA
- Connection: Male connector M8, 4-pin
- Enclosure rating: IP67, IP69K
- Operating temperature: –25 °C to +55 °C
- Storage temperature: –30 °C to +75 °C
- Dimensions (H x L x W): 44mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Sensing range up to 15 meters
- Visible red light with 650 nm wavelength
- Potentiometer adjustment with 270° rotation
- Stainless steel V4A housing for durability and hygienic applications
- IP67 and IP69K rated for protection against dust and water
- Fast response time under 625 microseconds
- Light/dark switching with PNP output
- Complementary switching output with circuit protection
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones requiring robust sensors
- Machine safety and process control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient LED light source minimizes power consumption
- High ingress protection extends product lifespan in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GSE6-F4411V Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
