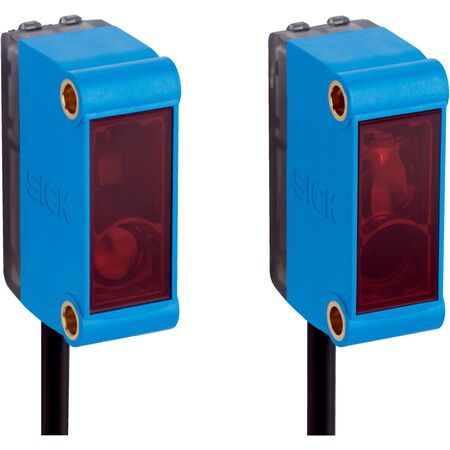

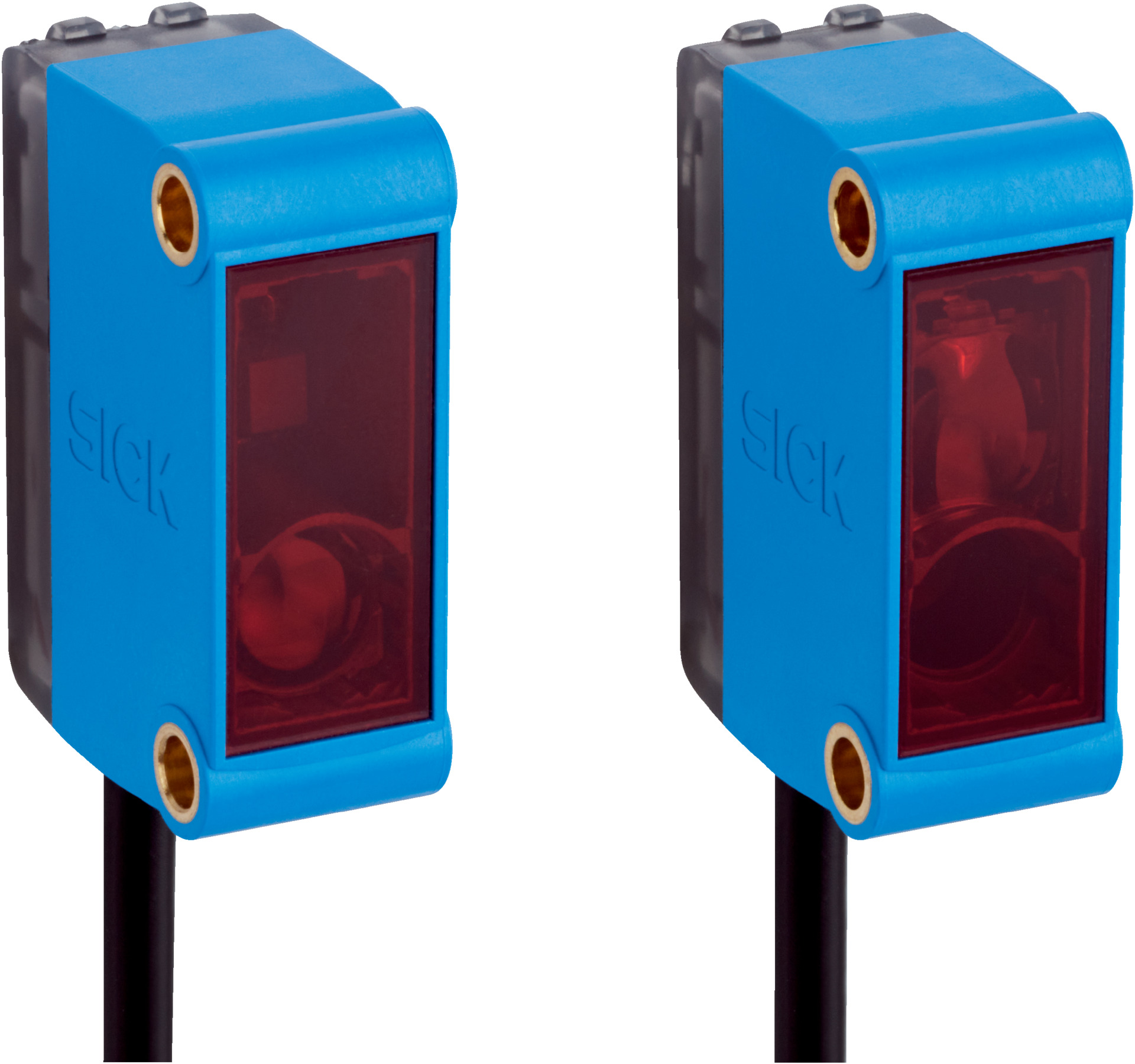

Photoelectric Sensor GSE6-N1321S54 | Through-Beam Sensing | IP67 Rated | 14.5m Range | by SICK
The GSE6-N1321S54 Photoelectric Sensor features a through-beam sensing principle with a maximum range of 14.5 meters, making it ideal for industrial automation and safety applications. With an IP67 rating and a high switching frequency of 1000 Hz, this sensor is built for reliability in demanding environments, ensuring optimal performance in manufacturing process control and material handling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor GSE6-N1321S54 | Through-Beam Sensing | IP67 Rated | 14.5m Range | by SICK
Brand: SICK
SKU: 1074344
Alternatively Known As: Photoelectric sensor, Through-beam sensor, Infrared sensor, Industrial photo sensor
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 14.5 m
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Output type: NPN digital output, dark switching
- Response time: less than 500 µs
- Switching frequency: 1000 Hz
- Protection class: III
- Housing material: Plastic ABS/PC
- Front screen material: Plastic PMMA
- Cable: 3-wire, 2 m length, 0.14 mm² conductor size
- Enclosure rating: IP67
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.17 kg
Key Features
- Through-beam photoelectric sensing principle
- Sensing range up to 14.5 meters
- Infrared LED light source with 850 nm wavelength
- Dark switching mode with NPN digital output
- High switching frequency of 1000 Hz
- Compact plastic housing with IP67 rating
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems
- Material handling and packaging
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GSE6-N1321S54 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
