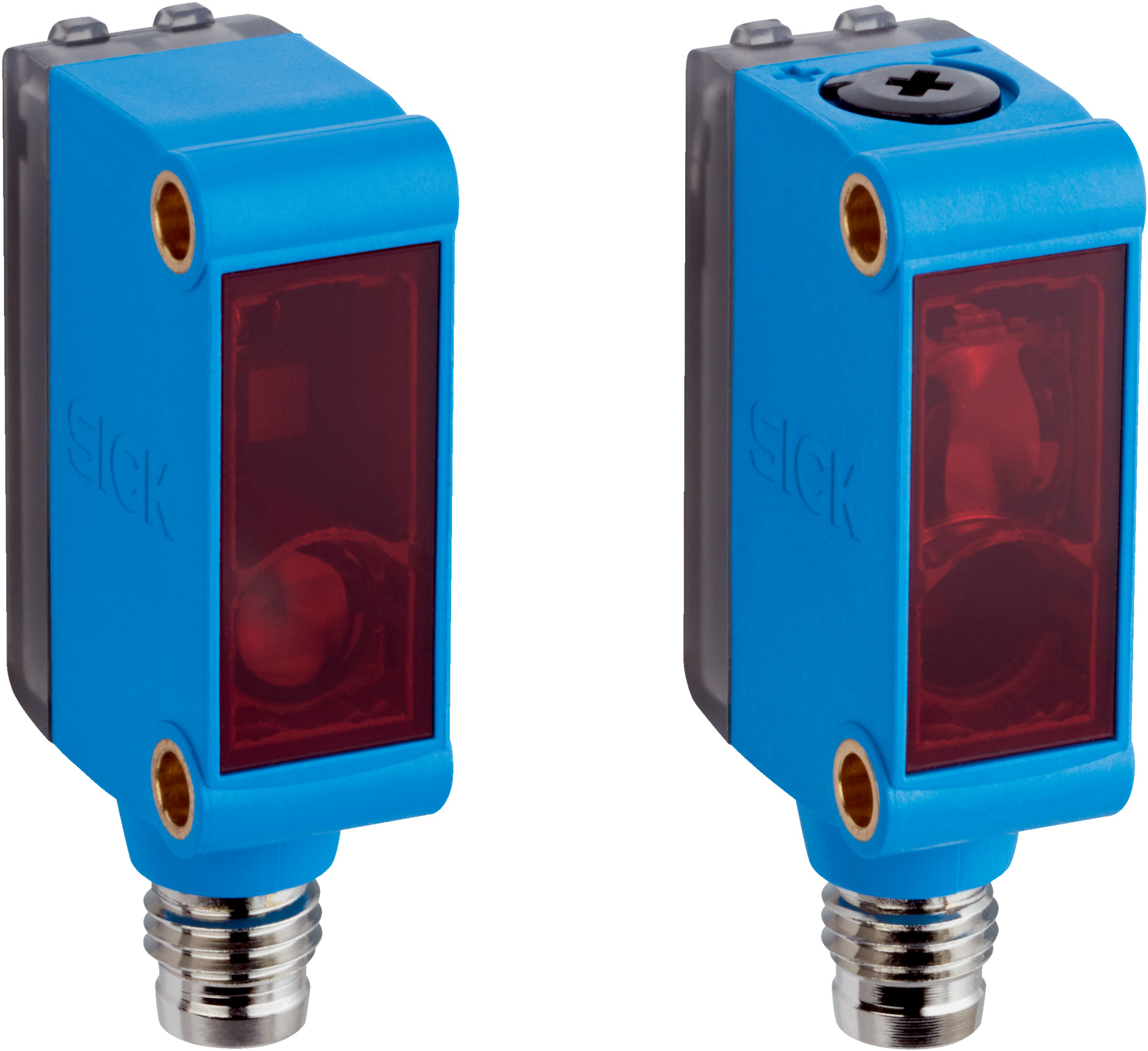

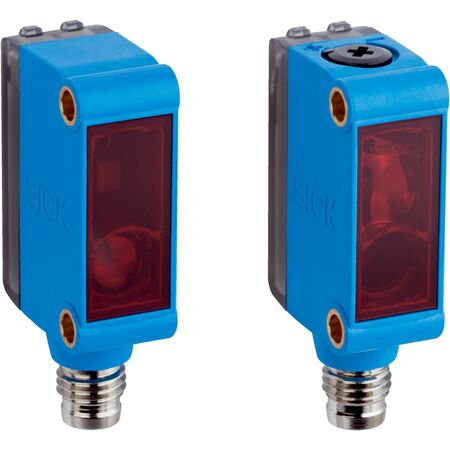

Photoelectric Sensor GSE6-N4212 | Through-Beam Sensing | IP67 Rated | Fast Response Time | by SICK
The GSE6-N4212 Photoelectric Sensor features a through-beam sensing principle with a sensing range of up to 15 meters, making it ideal for industrial automation and safety applications. With an IP67 rating for dust and water protection and a fast response time of under 500 microseconds, this sensor is built for reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor GSE6-N4212 | Through-Beam Sensing | IP67 Rated | Fast Response Time | by SICK
Brand: SICK
SKU: 1061397
Alternatively Known As: Photoelectric sensor, Through-beam sensor, Optical sensor, Industrial photo sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Protection class: III
- Output type: NPN digital output
- Switching mode: Light/dark selectable
- Output current max: ≤ 100 mA
- Response time: < 500 µs
- Switching frequency: 1000 Hz
- Housing material: Plastic ABS/PC
- Front screen material: Plastic PMMA
- Cable material: Plastic PVC
- Connection: Male M8, 4-pin connector
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.17 kg
Key Features
- Through-beam photoelectric sensing principle
- Sensing range up to 15 meters
- Visible red light with 650 nm wavelength
- Potentiometer adjustment with 270° rotation
- IP67 rated for dust and water protection
- Compact housing made of plastic ABS/PC
- Fast response time under 500 microseconds
- Selectable light/dark switching mode
- Stainless steel mounting bracket included
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems
- Material handling and packaging
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable IP67 rated housing reduces replacement frequency
- Complies with China RoHS for hazardous substance reduction
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GSE6-N4212 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
