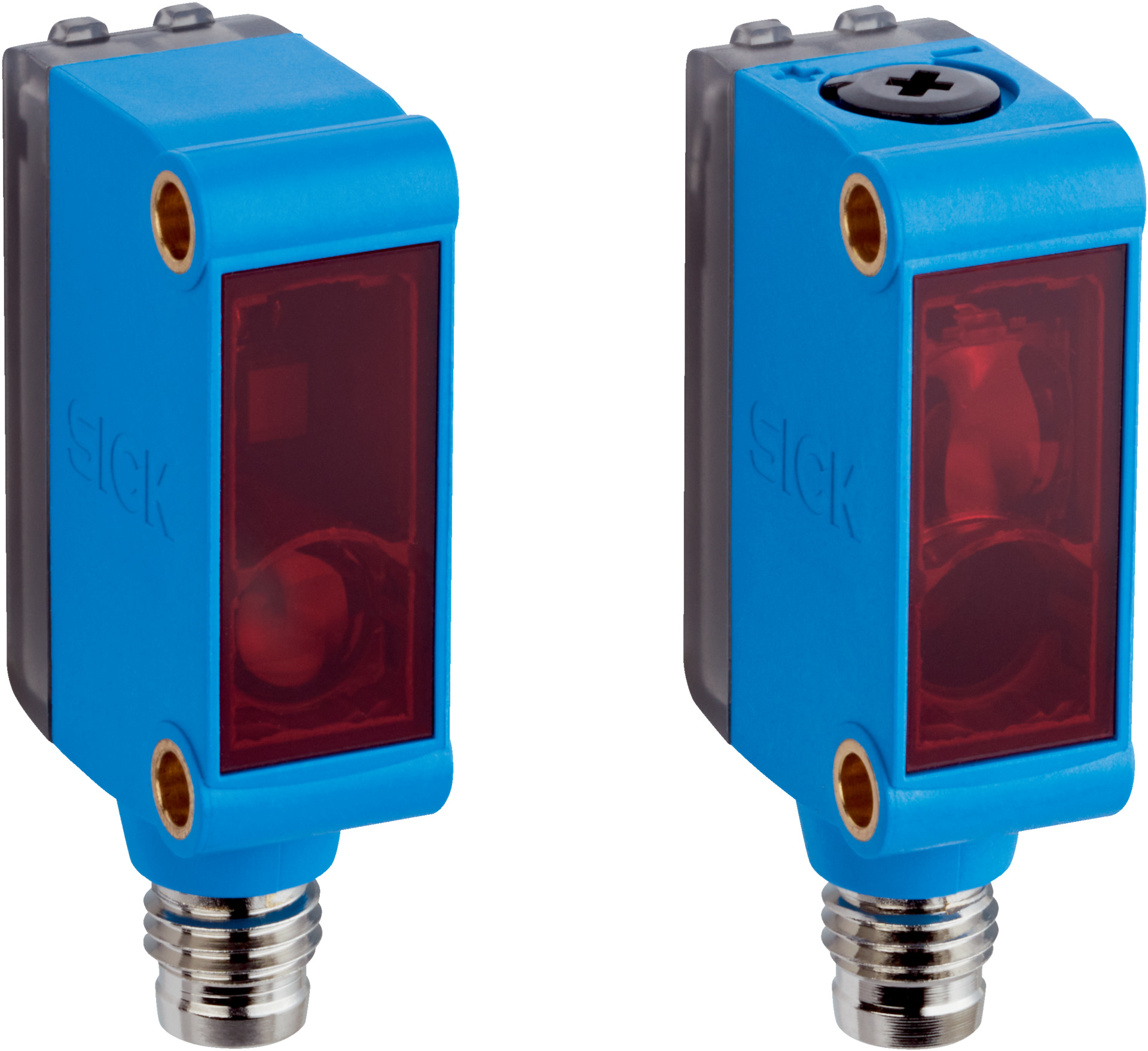

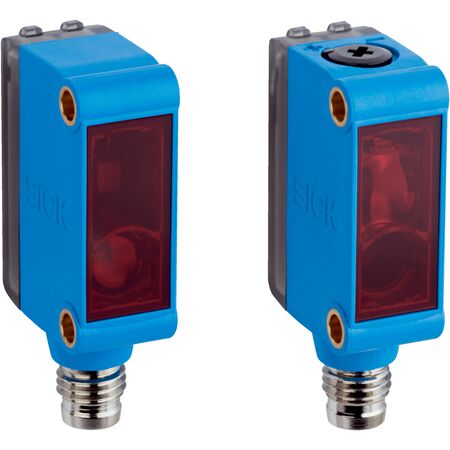

Photoelectric Sensor GSE6L-P3211 | Through-Beam | IP67 Rated | Laser Light Source | by SICK
The GSE6L-P3211 Photoelectric Sensor is a high-performance through-beam sensor designed for industrial automation and object detection. With a sensing range of up to 40 m and a visible red laser light source, it ensures precise detection of objects as small as 3.5 mm. Built with a robust IP67-rated housing, this sensor is perfect for manufacturing process control and material handling applications, providing reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor GSE6L-P3211 | Through-Beam | IP67 Rated | Laser Light Source | by SICK
Brand: SICK
SKU: 1117678
Alternatively Known As: Photoelectric sensor, Through-beam sensor, Laser sensor, Industrial object sensor
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 40 m, recommended 0 m to 30 m
- Light source: Laser, visible red light, wavelength 680 nm
- Light spot size: Ø 3.5 mm at 1000 mm distance
- Laser class: 1
- Pulse duration: 3 µs
- Maximum pulse power: ≤ 7.8 mW
- Average service life: 100,000 hours at 25 °C
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA without load at 24 V
- Output type: 1 PNP digital output with light/dark switching
- Response time: ≤ 625 µs
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic ABS
- Connection: M8, 3-pin connector
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with a sensing range up to 40 m
- Visible red laser light source with point-shaped light spot
- High precision with smallest detectable object size of 3.5 mm at 1 m distance
- Robust plastic ABS housing with IP67 protection rating
- LED indicators for power and object detection status
- Fast response time of ≤ 625 µs and switching frequency up to 1000 Hz
- Reverse polarity, overcurrent, and short-circuit protected outputs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and monitoring in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient operation with low current consumption
- Robust design minimizes environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GSE6L-P3211 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
