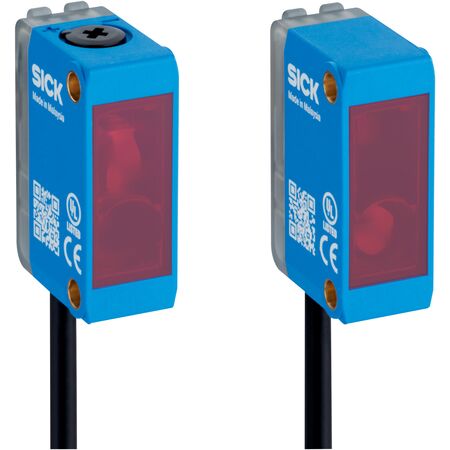

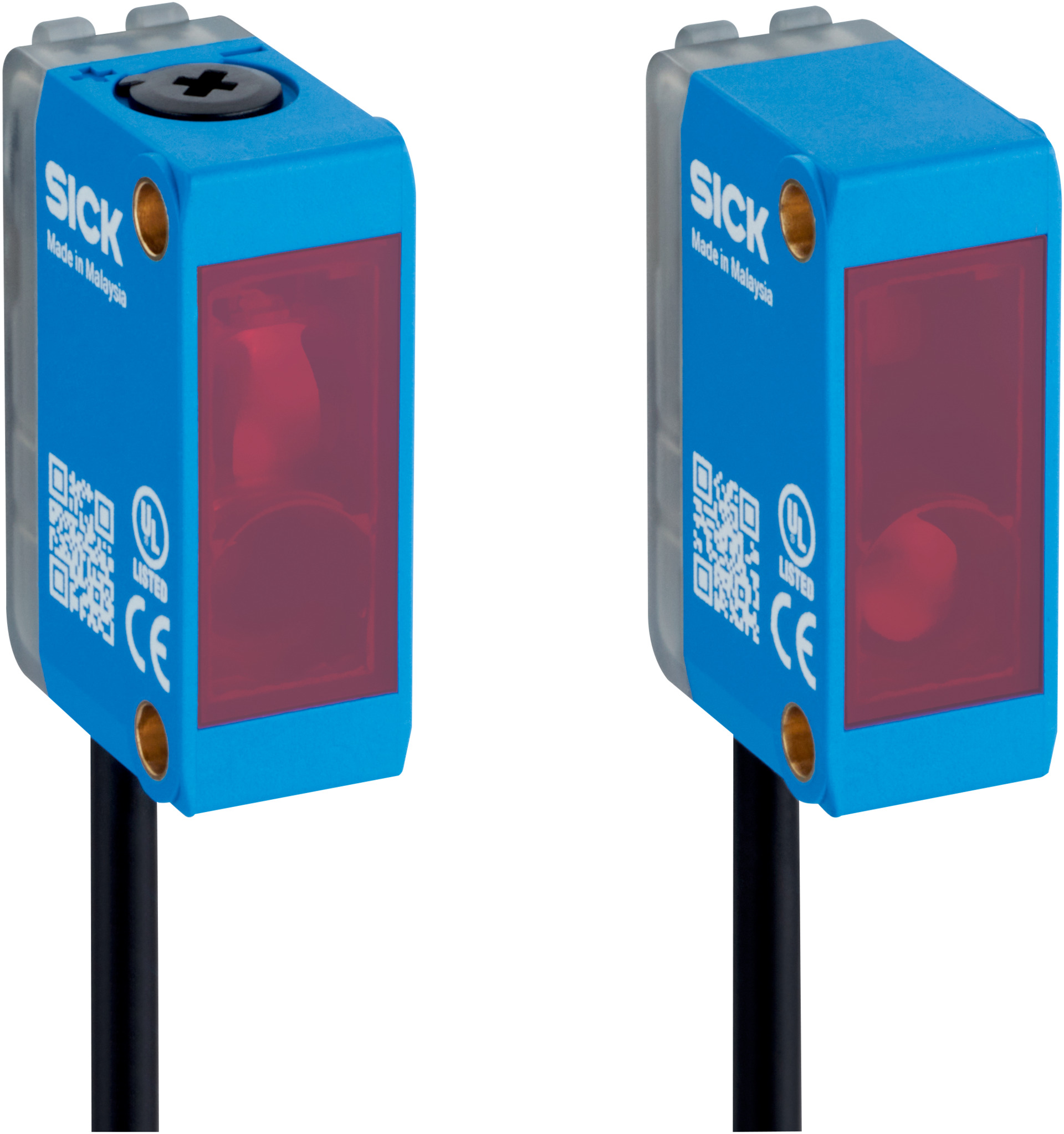

Photoelectric Sensor GSE6SP-1GE1217EZZZ | 20m Sensing Range | PinPoint LED Light Source | IP67 Rated | by SICK
The GSE6SP-1GE1217EZZZ photoelectric sensor features a sensing range of up to 20 meters, making it ideal for industrial automation and object detection applications. With a PinPoint LED light source emitting visible red light at 640 nm, this sensor ensures reliable performance in harsh environments, thanks to its robust IP67 rated housing and fast response time of ≤ 625 µs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor GSE6SP-1GE1217EZZZ | 20m Sensing Range | PinPoint LED Light Source | IP67 Rated | by SICK
Brand: SICK
SKU: 1135344
Alternatively Known As: Through-beam photoelectric sensor, SICK photoelectric sensor, GSE6SP sensor, industrial object sensor
Technical Specifications
- Sensing range: 0 to 20 m (recommended 0 to 17 m)
- Light source: PinPoint LED, visible red light, 640 nm wavelength
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA without load at 24 V
- Output type: 1 NPN open collector, light switching
- Output current max: ≤ 100 mA
- Response time: ≤ 625 µs
- Switching frequency: 1000 Hz
- Protection: Reverse polarity, overcurrent, short-circuit
- Housing material: Plastic ABS with PMMA front screen
- Cable: 3-wire, 2 m length, PVC
- Enclosure rating: IP67
- Operating temperature: -30°C to +55°C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 0.5 mm
- Dimensions (H x L x W): 31.6mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Sensing range up to 20 meters with recommended range 0 to 17 meters
- PinPoint LED light source with visible red light at 640 nm wavelength
- LED indicators for power and object detection status
- Adjustable sensing range via 270° potentiometer
- Operating mode switch for light/dark switching function inversion
- High switching frequency up to 1000 Hz and fast response time ≤ 625 µs
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
- Robust IP67 rated housing suitable for harsh environments
- Wide ambient operating temperature range from -30°C to +55°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Safety and monitoring in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GSE6SP-1GE1217EZZZ photoelectric sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
