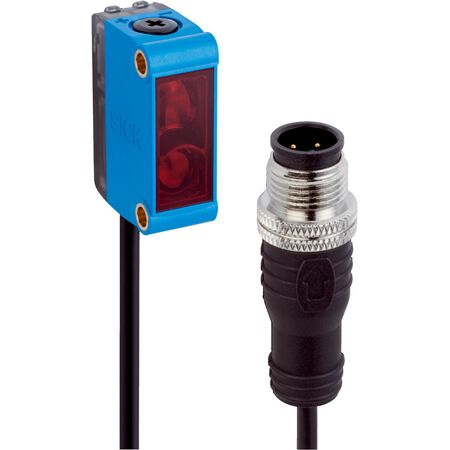

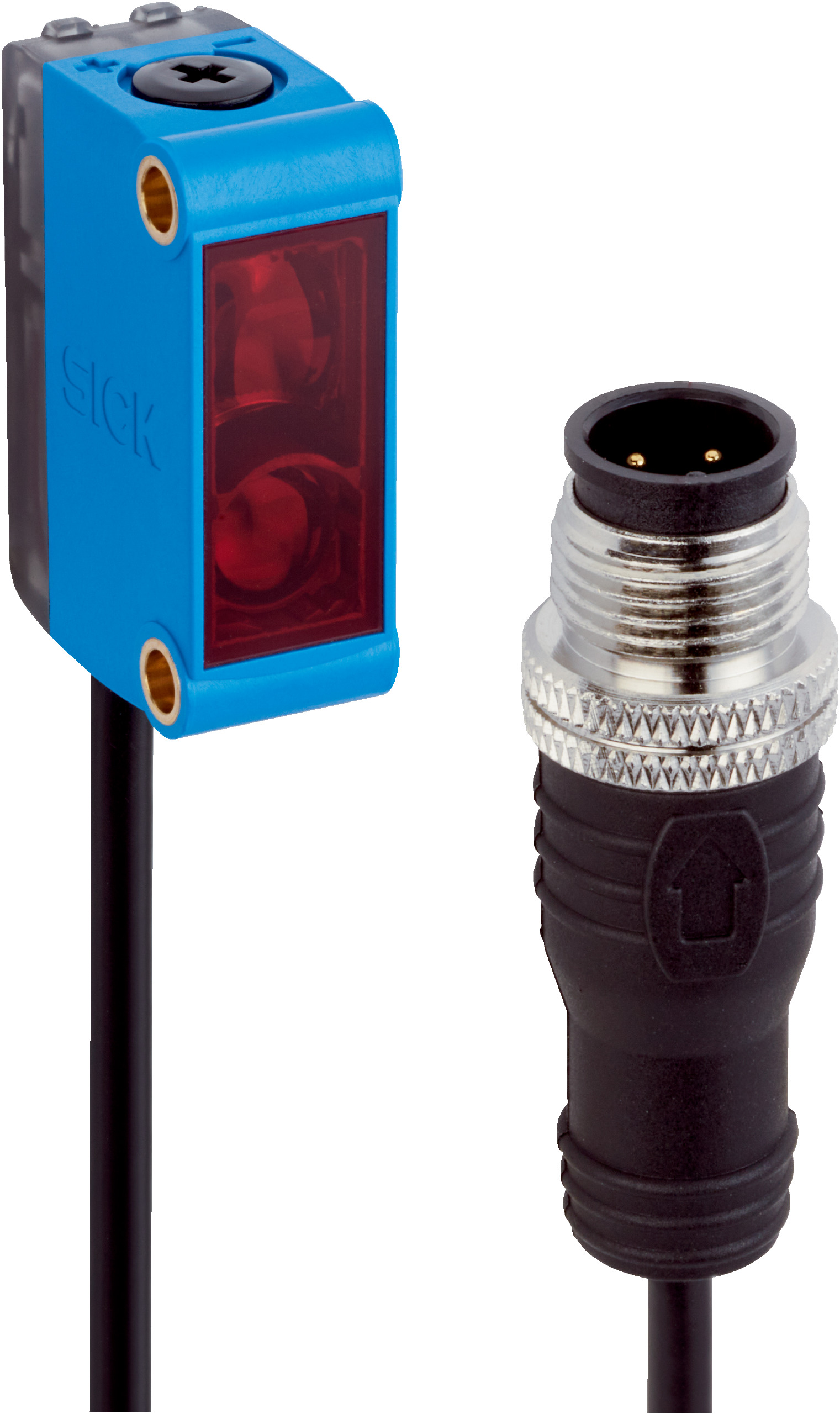

Photoelectric Sensor GTB6-N0212S113 | Background Suppression | IP67 Rated | Red Light LED | by SICK
The Photoelectric Sensor GTB6-N0212S113 is designed for industrial automation, featuring background suppression and a sensing range of 35 mm to 250 mm. With an IP67 rating for dust and water protection, this sensor is perfect for manufacturing process control and safety detection in machinery, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor GTB6-N0212S113 | Background Suppression | IP67 Rated | Red Light LED | by SICK
Brand: SICK
SKU: 1140985
Alternatively Known As: Photoelectric proximity sensor, Background suppression sensor, Red light sensor, Industrial object sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Protection class: III
- Digital output: NPN, light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: < 625 µs
- Switching frequency: 1,000 Hz
- Cable connection: 600 mm cable with M12 male 4-pin connector
- Housing material: Plastic ABS/PC
- Front screen material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range from 35 mm to 140 mm, max 5 mm to 250 mm
- Visible red light PinPoint LED with 650 nm wavelength
- Mechanical spindle adjustment with 5 turns
- Mounting holes Ø 3.2 mm un-threaded
- Stainless steel mounting bracket included
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Safety and presence detection in machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable IP67 housing reduces waste by extending product life
- Complies with China RoHS for hazardous substance reduction
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GTB6-N0212S113 Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
