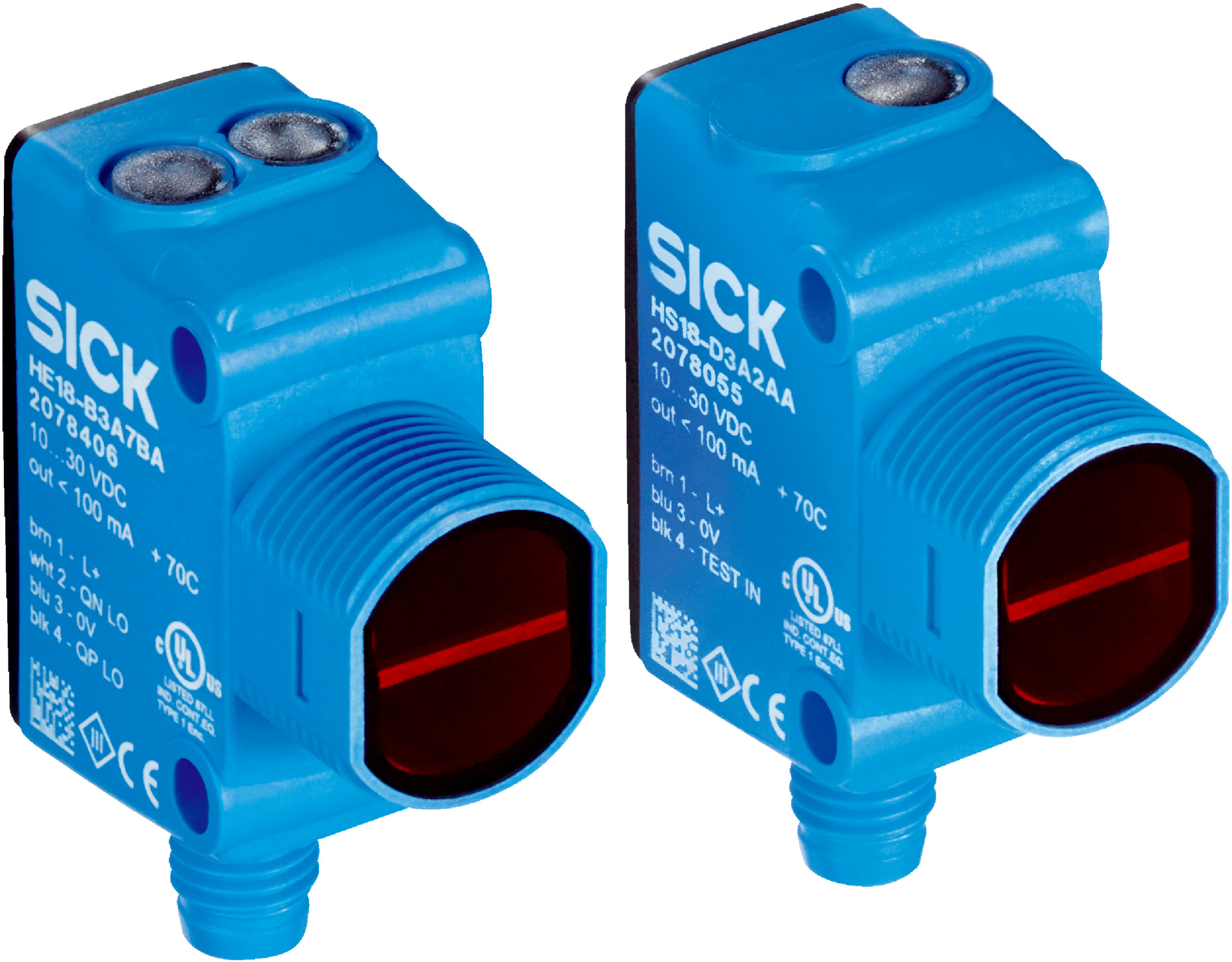

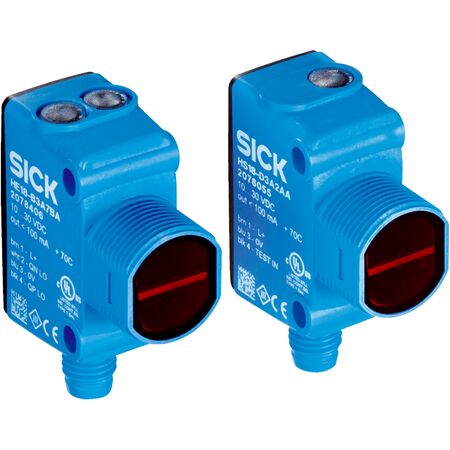

Photoelectric Sensor HSE18-A3A2BH | Through-Beam Design | IP67 & IP69K Rated | Fast Response Time | by SICK
The HSE18-A3A2BH Photoelectric Sensor features a through-beam design with a sensing range of up to 20 meters, making it ideal for industrial automation and manufacturing process control. With a fast response time of ≤ 0.5 ms and dual switching outputs (PNP and NPN), this sensor ensures reliable object detection in harsh environments, thanks to its IP67 and IP69K ratings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor HSE18-A3A2BH | Through-Beam Design | IP67 & IP69K Rated | Fast Response Time | by SICK
Brand: SICK
SKU: 1088644
Alternatively Known As: Through-beam photoelectric sensor, M18 photoelectric sensor, Industrial photoelectric sensor, SICK HSE18 sensor
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Housing design: Hybrid with M18 thread diameter
- Sensing range: 0 m to 20 m
- Light source: PinPoint LED, visible red light at 631 nm wavelength
- Light spot size at 10 m: 400 mm x 200 mm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA
- Switching output: PNP and NPN, dark switching mode
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Male connector M8, 4-pin
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP67, IP69K
- Operating temperature: –40 °C to +70 °C
- Storage temperature: –40 °C to +75 °C
- Electromagnetic compatibility: EN 60947-5-2
- Dimensions (H x L x W): 45mm x 32mm x 16mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 20 meters
- Hybrid housing design with M18 thread diameter
- Signal strength light bar for easy adjustment
- IP67 and IP69K rated for harsh environments
- Fast response time of ≤ 0.5 ms and switching frequency of 1,000 Hz
- Dual switching outputs: PNP and NPN with dark switching mode
- Wide operating temperature range from –40 °C to +70 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67/IP69K housing reduces waste by extending product life
- Complies with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK HSE18-A3A2BH Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
