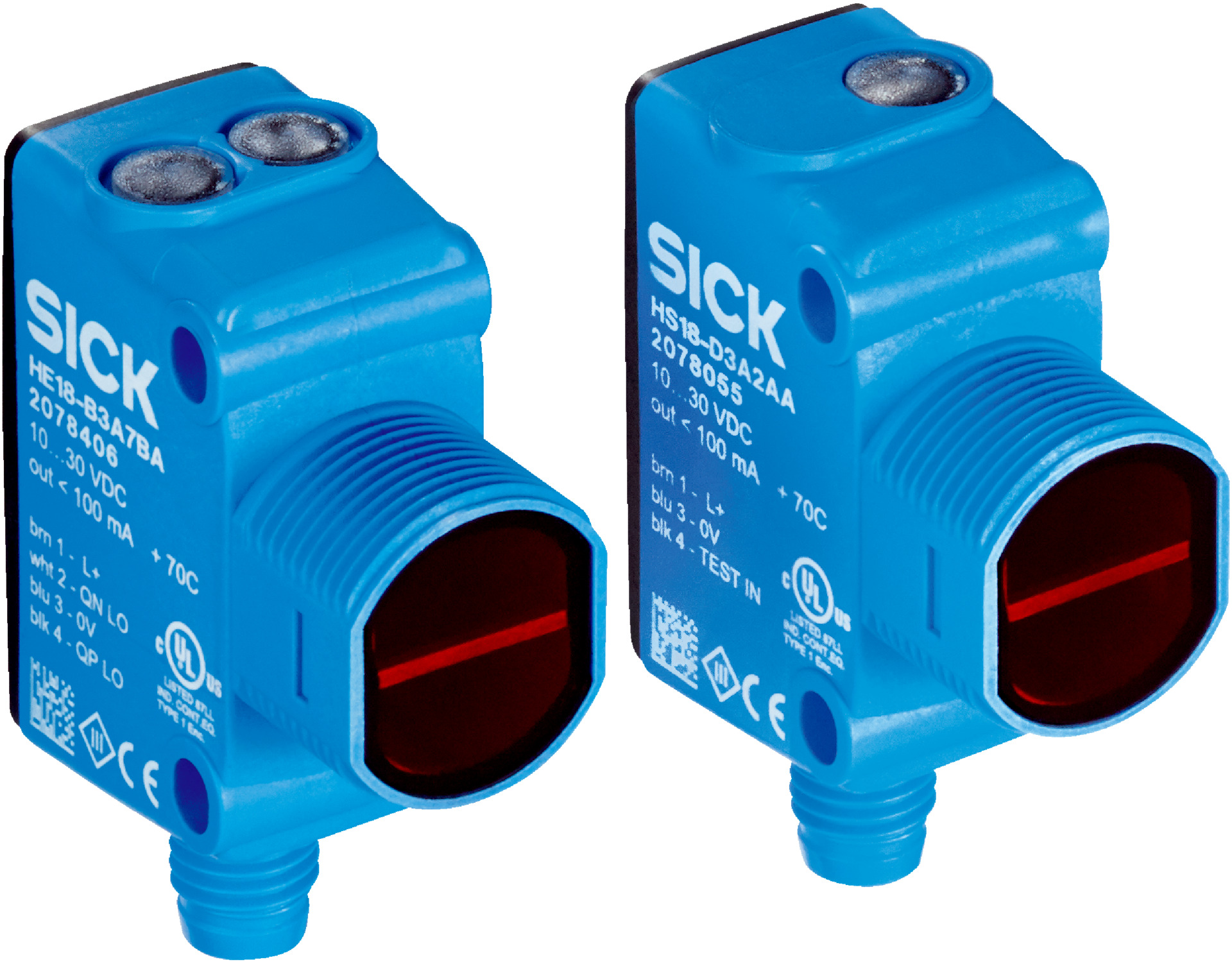

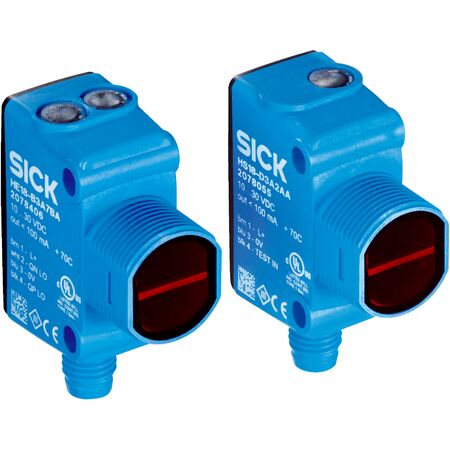

Photoelectric Sensor HSE18-B3A2BA | Through-Beam Sensing | IP67 & IP69K Rated | Fast Response Time | by SICK
The HSE18-B3A2BA photoelectric sensor features a through-beam sensing principle with a sensing range of up to 20 meters, making it ideal for industrial automation and object detection. With a robust VISTAL® housing and IP67/IP69K protection, it ensures durability in harsh environments. Its fast response time of ≤ 0.5 ms and dual PNP/NPN outputs enhance its versatility for manufacturing and safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor HSE18-B3A2BA | Through-Beam Sensing | IP67 & IP69K Rated | Fast Response Time | by SICK
Brand: SICK
SKU: 1071766
Alternatively Known As: Through-beam photoelectric sensor, M18 photoelectric sensor, Industrial photoelectric sensor, SICK HSE18 sensor
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Housing design: Hybrid with M18 thread diameter
- Sensing range: 0 m to 20 m
- Light source: PinPoint LED, visible red light at 631 nm wavelength
- Light spot size at 10 m: 400 mm x 200 mm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA
- Switching output: PNP and NPN, light switching mode
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Male connector M8, 4-pin
- Cable material: Plastic, PVC
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP67 and IP69K
- Operating temperature: –40 °C to +70 °C
- Storage temperature: –40 °C to +75 °C
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 44.9mm x 31.8mm x 16.2mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Visible red light with PinPoint LED light source
- Sensing range up to 20 meters
- Signal strength light bar for easy alignment
- Robust plastic VISTAL® housing with IP67 and IP69K protection
- Fast response time of ≤ 0.5 ms and switching frequency of 1000 Hz
- Dual switching outputs: PNP and NPN
- Wide operating temperature range from –40 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and security systems requiring precise sensing
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable housing reduces waste through extended product life
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK HSE18-B3A2BA photoelectric sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
